User Manual for Hoftronic Sydney LED Garden Spike Light
Quick guide for the Hoftronic Sydney LED Garden Spike Light (SKU 5444548). Includes installation steps, safety warnings, and maintenance instructions for this outdoor lighting solution.
Table of contents
Quick guide from the manual
The Hoftronic Sydney LED Garden Spike Light is designed for outdoor use. Installation must be performed by a qualified electrician. Ensure the power is disconnected before starting any work. The product features an IP65 rating, ensuring protection against dust and water jets.
Safety Instructions
- Ensure the AC/Mains power is disconnected and cannot be unexpectedly reconnected during installation.
- This product must be installed by a qualified electrician in compliance with local electrical and safety regulations.
- Do not install if you are a minor or have a mental disability.
- Do not cover the product with insulation material unless using a model with an insulation guard.
- The product has a protective contact/terminal; failure to connect the protective lead may lead to electric shock.
- Do not use in unfavourable conditions such as dust, water, moisture, vibrations, or explosive atmospheres.
- Do not look directly at the LED light beam.
Installation
Follow the steps provided in the installation diagram:
- Ensure the power supply is switched OFF.
- Mount the spike light in the desired location.
- Ensure the light head is positioned correctly.
- Secure the assembly.
Ensure the proper diameter of the power cable is selected for the cable gland to maintain the IP65 protection level. Verify proper mechanical fastening and connection to electrical power prior to first use.
Maintenance
Perform maintenance only when the power supply is cut off and the product has cooled down. Clean only with soft and dry cloths. Do not use chemical detergents. Ensure free air access to the product as it may heat up during operation.
Environmental Protection
This product requires selective collection of waste electronic and electrical equipment. Do not dispose of it with normal household waste. Return it to a collection facility for recycling or return it to the seller when purchasing a new product of the same type.
Manufacturer information
Hoftronic
Practical help
Common problems
Light does not turn on
Ensure the power supply is connected and the circuit breaker is in the ON position.
Electric shock risk
Ensure the protective earth/ground wire is properly connected to the terminal.
Overheating
Do not cover the product with insulation material and ensure free air access.
Before use
- Ensure the power supply is disconnected before starting installation.
- Verify the installation location is suitable for outdoor use.
- Check that the cable diameter matches the cable gland for IP protection.
- Ensure the product is installed by a qualified electrician.
- Check for proper mechanical fastening.
Specs in practice
- 3 Year Warranty
- Manufacturer warranty period for the product.

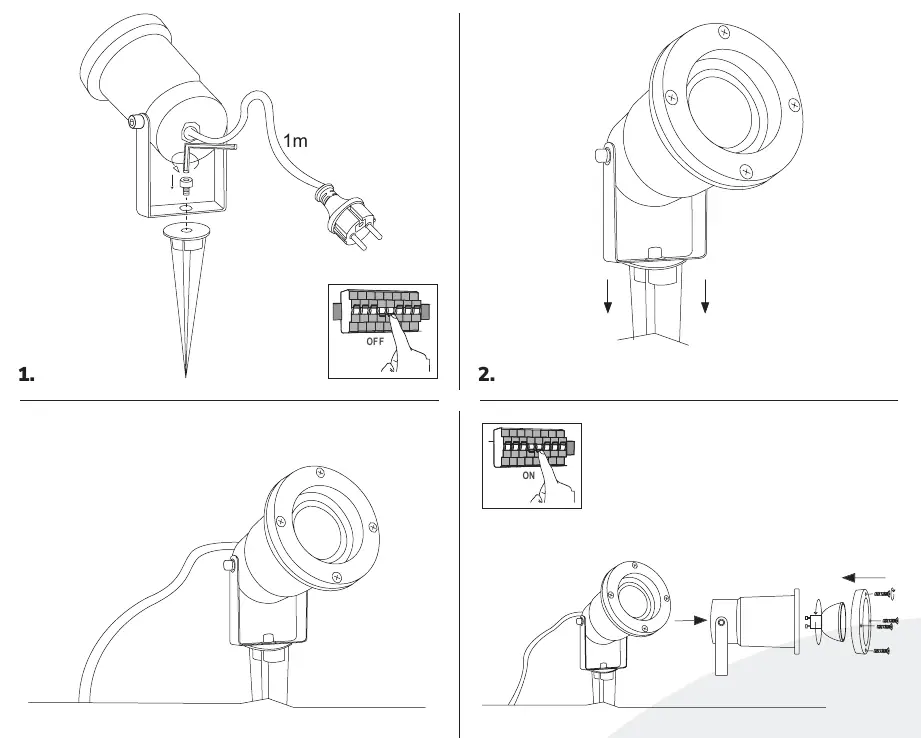

Images and diagrams
- Step 1: Ensure power is OFF and prepare the mounting area.
- Step 2: Insert the spike into the ground.
- Step 3: Position the light head.
- Step 4: Secure the light assembly.
Model compatibility
- Product is for outdoor use only.
- Must be connected to a supply network meeting energy quality standards.
