Assembly Instructions for Home Accents Holiday 22RT2092214 Deer Family
A comprehensive assembly and care guide for the Home Accents Holiday 22RT2092214 LED Deer Family. Includes step-by-step installation instructions, parts list, safety precautions, and troubleshooting tips.
Quick answers from the manual
Quick answer
- The 22RT2092214 is a decorative LED deer family. Assembly involves connecting the head, legs, and support frames to the bodies using plastic ties, then securing the unit to the ground with stakes. p. 1, 2, 3
Key actions
- Assemble the deer parts (Head, Legs, Body, Support Frames) using plastic ties. p. 2, 3
- Secure the deer to the ground using the provided ground stakes. p. 3
First start
- Connect the power cord plugs together and secure with the built-in cap screw. Press the power button (R) to turn the light on. p. 3
Show 3 more answers Show less
Problems and fixes
Item does not light
Check for loose or broken bulbs, ensure all cords are plugged in, and check for a broken or burned-out fuse in the plug.
p. 1Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power Rating | 19.2 Watts | Maximum power consumption | p. 1 |
| Current | 0.16 Amps | Electrical current rating | p. 1 |
Where to find it in the PDF
- Parts List and Safety p. 1
- Assembly Steps 1-4 p. 2
- Assembly Steps 5-9 p. 3
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides instructions for assembling the Home Accents Holiday 22RT2092214 LED Deer Family. Before beginning, ensure you have all parts listed in the parts list and that you are working on a flat, level surface. Assembly is recommended while laying flat on the ground. Do not pull on the lighting string during assembly to avoid damage.
Assembly

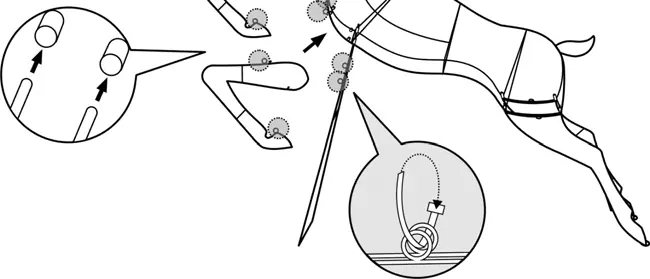

The assembly process involves connecting the various body parts, legs, and support frames using the provided plastic ties. Follow these steps:
- Step 1-2 (Front Deer): Assemble the Antler/Head, Body, Front Legs, Hind Legs, and Support Frames. Secure all connections with plastic ties.
- Step 3-4 (Middle Deer): Assemble the Antler/Head, Body, Front Legs, Hind Legs, and Support Frames. Secure with plastic ties and insert the hooked end of the metal bars into the metal hole on the opposite leg.
- Step 5-7 (Hind Deer): Assemble the Antler/Head, Body, Front Legs, Hind Legs, and Support Frames. Secure the Support Pole through the body with the built-in locking pin. Attach the Base Stand.
- Step 8 (Power Plug): Connect the power cord plugs together and secure with the built-in cap screw.
- Step 9 (Ground Stakes): Place the Ground Stakes over the metal frame at each hoof of the three deer and insert them firmly into the ground.
Care and Cleaning
- Carefully remove the product from its location to avoid strain on connections.
- Disassemble the unit with caution, ensuring electrical wires are not cut.
- Wipe the unit with a damp cloth and allow it to dry completely before storing.
- Store in a cool, dry location protected from sunlight.
Troubleshooting
- Ensure the surface is flat and level.
- Verify the item is plugged correctly into a wall outlet or UL Listed Power Cord.
- Check that all parts are assembled properly.
- If the item does not light, check for loose or broken bulbs and connections.
- Ensure all light string cords are plugged in if the item has multiple.
- Check for a broken or burned-out fuse in the plug.
Safety
CAUTION: Grasp the plug to insert or remove from the power source; do not unplug by pulling on the cord. The lighting string is rated at 19.2 Watts (0.16 Amps). Do not overload or connect to other lighting strings or electrical products. Inspect the product before use for cuts, frayed insulation, or loose connections.
Manufacturer information
Home Accents Holiday
Practical help
Common problems
Item does not light
Check for loose or broken bulbs, ensure all cords are plugged in, and check for a broken or burned-out fuse in the plug.
Parts missing or damaged
Do not attempt assembly. Contact customer service or return to the place of purchase with your receipt.
Before use
- Identify all parts against the parts list.
- Ensure the assembly surface is flat and level.
- Inspect the product for cuts, frayed wire insulation, or loose connections.
- Ensure you have more than one person for assembly if needed.
Show more Show less
Specs in practice
- Power Rating
- 19.2 Watts (0.16 Amps). Do not overload.
Images and diagrams
- Parts are connected by a lighting string; handle with care.
- Use plastic ties (S) to secure all connecting loops.
- Ground stakes (T) are required to secure the deer to the ground.
Model compatibility
- Do not connect to another lighting string, decorative outfit, or other electrical products.
