User Manual for HP Pro Shredder 24CC and 16MC
Quick guide for the HP Pro Shredder 24CC and 16MC. Includes setup, operation, safety instructions, maintenance, and technical specifications.
Quick answers from the manual
Quick answer
- The HP Pro Shredder 24CC and 16MC are designed for private indoor use to shred paper, credit cards, staples, and paper clips. They feature automatic operation, a 30-minute sleep mode, and a 40-minute continuous run time. p. 2, 3
Key actions
- Emptying the waste bin p. 3, 8
- Starting the shredder p. 2, 4
First start
- Ensure the waste bin is inserted correctly, connect the power cable, and press the On/Off button. p. 2, 4
Show 4 more answers Show less
Problems and fixes
Shredder stops during operation
Check if the waste bin is full or if the device has overheated.
p. 3, 8Maintenance and reset
- Empty the waste bin when the 'Bin full' LED flashes red. p. 3, 8
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power supply | 220 - 240 V~, 50 Hz, 3.0 A, 680 W | Electrical requirements | p. 3, 5 |
| Continuous operation | 40 min | Max run time | p. 3, 5 |
Where to find it in the PDF
- Safety and Setup p. 2, 4
- Technical Data p. 3, 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides essential information for operating the HP Pro Shredder 24CC and 16MC. Always read the full operating manual before use and keep it for future reference. The shredder is designed for private indoor use to shred paper, credit cards, staples, and paper clips.
Safety Information
- Keep away from the insertion slot: Fingers, hair, scarves, ties, jewelry, and loose clothing.
- Children: This device is not intended for use by children. Keep children and pets away from the shredder.
- Flammable materials: Do not spray flammable gases or air sprays in the direction of the shredder.
- Damage: Do not operate if the power cable is damaged.
- Maintenance: Repairs must be carried out by qualified specialists.
Setup and Starting
- Place the shredder on a stable, level, horizontal surface near an easily accessible power socket.
- Maintain a distance of at least 10 cm from walls to ensure sufficient cooling.
- Slide the waste bin into the device until it latches audibly. The shredder will not operate if the bin is not correctly fitted.
- Connect the power cable to the device and plug it into a power socket.
- Switch the device on using the On/Off button. The status indicator will light up blue.
Operation
The shredder features an automatic shredding mechanism. Simply feed the material into the center of the insertion slot. The shredder will automatically pull the material in and stop when finished.
Maximum Cutting Capacity
- Pro Shredder 24CC: 24 sheets
- Pro Shredder 16MC: 16 sheets
Sleep Mode
If the shredder is not operated for 30 minutes, it enters sleep mode. To wake it up, simply feed material into the insertion slot or press the FWD or REV button.
Emptying the Waste Bin
The fill level is monitored by a sensor. When the bin is full, the "Bin full" status LED flashes red. The cutting mechanism stops automatically.
- Switch off the device using the On/Off button.
- Pull the waste bin out of the device.
- Empty the waste bin.
- Slide the bin back into the device until it latches audibly.
Technical Data
Both models operate on 220-240 V~, 50 Hz, 3.0 A, 680 W. They feature a continuous operation time of 40 minutes followed by a 50-minute cool-down phase. The maximum ambient temperature is 25°C.
Manufacturer information
HP Inc.
Practical help
Common problems
Bin full LED flashes red
The waste bin is full and must be emptied.
Overheat LED is on
The device has exceeded its operating temperature. Allow it to cool down for 50 minutes.
Shredder will not switch on
Ensure the waste bin is correctly inserted and latched into place.
Before use
- Ensure the waste bin is correctly inserted.
- Check that the power cable is securely connected.
- Verify that the material to be shredded does not exceed the maximum sheet capacity.
- Ensure the device is placed on a stable, level surface.
Show more Show less
Specs in practice
- Continuous operation
- The maximum time the shredder can run before needing a cool-down period (40 minutes).
- Cool down phase
- The time required for the motor to cool down after continuous operation (50 minutes).
- Max. ambient temperature
- The maximum room temperature for safe operation (25°C).

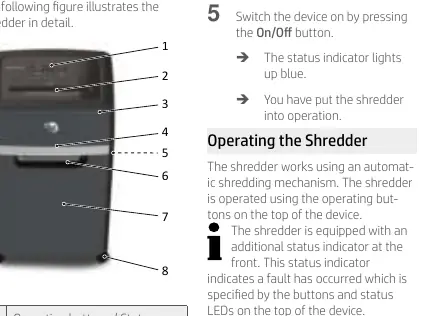

Images and diagrams
- The control panel features buttons for Reverse (REV), Forward (FWD), and On/Off.
- Status LEDs indicate Overheat, Overload, Bin full, and Bin open conditions.
Model compatibility
- Suitable for paper, credit cards, staples, and paper clips.
- Exclusively for private indoor use.
