User Manual for Hulala Home OFM1674 Adjustable Height Task Chair
Quick guide for the Hulala Home OFM1674 task chair. Includes assembly instructions, safety warnings, height and recline adjustment steps, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Hulala Home OFM1674 task chair is designed for indoor use with a maximum weight capacity of 300 lbs. Assembly is intended for one person and takes approximately 15 minutes. Ensure the chair is placed on a stable, flat surface to prevent tilting.
Parts List
- A: Backrest
- B: Seat Frame
- C: Mechanism
- D: Spider base
- E: Metal base cap
- F: Gas lift
- G: Casters (x5)
- H: Plug interface (x2)
Assembly Instructions
- Step 1 & 2: Attach the plug interface (H) to the seat frame (B) using the provided M6x20mm screws and M6 Allen key.
- Step 3: Slide the backrest (A) into the seat frame (B).
- Step 4: Attach the mechanism (C) to the bottom of the seat frame using four M6x20mm screws.
- Step 5: Insert the casters (G) into the spider base (D).
- Step 6: Place the metal base cap (E) onto the spider base (D), then insert the gas lift (F).
- Step 7: Place the assembled seat unit onto the gas lift (F).
- Step 8: Ensure all parts are securely fastened. Assembly is complete.
Functions
Height Adjustment: Pull the lifting lever to adjust the chair height.
Recline Adjustment: Rotate the knob under the seat clockwise to increase the recline angle of the backrest, or counterclockwise to adjust the backrest forward.
Maintenance and Safety
- Regularly clean the surface with a soft cloth to prevent dust accumulation.
- Do not use cleaning agents containing acids, alkalis, or corrosive substances.
- Avoid exposing the furniture to humid environments for extended periods.
- If water is spilled, wipe it dry immediately.
- Do not allow children to climb on the product.
- If you notice any loose or damaged parts, stop using the product immediately and contact customer service.
For technical support or missing parts, contact the after-sales team at [email protected].
Practical help
Common problems
Chair is unstable or tilting
Ensure the chair is placed on a stable, flat surface.
Missing parts or assembly difficulty
Contact the after-sales team at [email protected] with your order number.
Chair height not adjusting
Ensure the lifting lever is being pulled correctly.
Before use
- Unbox the package and check if all parts and accessories are complete.
- Place parts on a flat, stable surface.
- Lay a protective mat on the ground to prevent scratching the floor.
- Ensure the installation area is level and has enough space.
- Verify that the user weight is within the 300 lbs capacity.
Specs in practice
- Weight Capacity
- Maximum load is 300 lbs.
- Assembly Time
- Estimated 15 minutes for one person.
Images and diagrams
- Exploded view shows the connection order of the backrest, seat, mechanism, gas lift, and base.

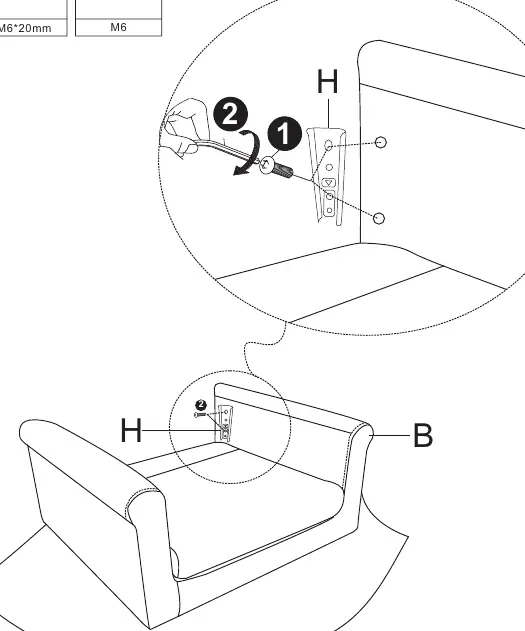

- Step 1-2 detail the attachment of the plug interface to the seat frame.

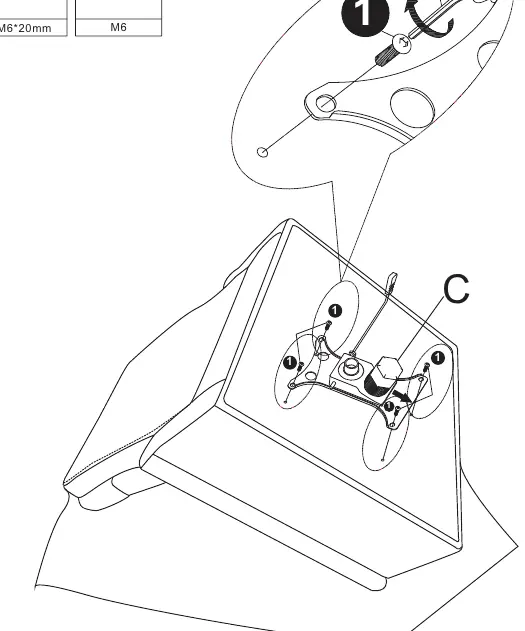

- Step 4 illustrates the correct orientation of the mechanism on the seat bottom.
- Step 5 shows the insertion of casters into the spider base.

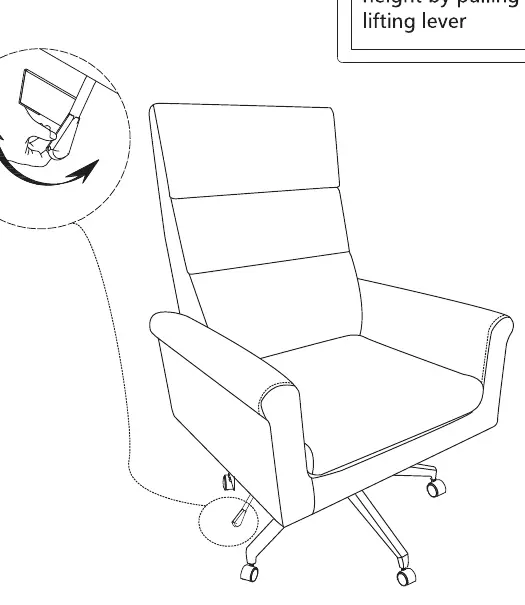

- Functions section illustrates the location of the height adjustment lever and recline knob.
Model compatibility
- Indoor use only.
- Keep away from high heat or open flames.
