Operator's Manual for Husqvarna 129C, 129L, 129LK Grass Trimmer

Quick guide from the manual

This manual provides essential instructions for the safe operation and maintenance of the Husqvarna 129C, 129L, and 129LK grass trimmers. Always ensure the product is fully assembled before use and that you are at least 15 meters away from other people or animals. Use a 50:1 fuel mixture (2% oil) and ensure the cutting attachment is correctly installed.

Overview of the product

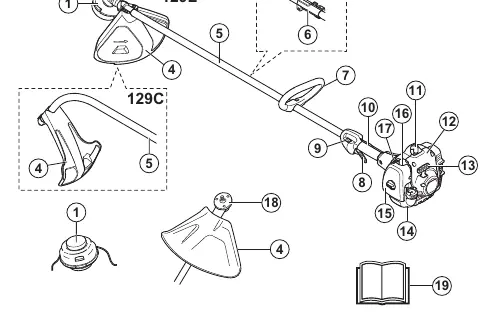

The trimmer consists of several key components, including the trimmer head, shaft, loop handle, throttle trigger, stop switch, fuel tank, and air filter cover. Refer to the product diagrams for specific locations of these parts.

Assembly

Attaching the loop handle

Attach the loop handle to the shaft as shown in the manual and tighten securely. Ensure it is positioned between the arrows on the shaft.

Assembling the two-piece shaft

Loosen the shaft coupling knob, align the tab on the shaft with the arrow on the coupling, push the shaft in until it clicks, and tighten the knob securely before use.

Assembling the cutting attachment

For straight shafts, attach the guard with the bolt, install the drive disc, lock the shaft with a small screwdriver, and tighten the trimmer head counterclockwise. For curved shafts, attach the guard, dust cup, and tighten the trimmer head clockwise.

Operation

Fueling

Use a mixture of gasoline and two-cycle engine oil at a 50:1 (2%) ratio. Do not use gasoline with an octane rating lower than 90 RON (87 AKI) or more than 10% ethanol. Always mix in a clean container and do not prepare more than a 30-day supply.

Starting the engine

For a cold engine: Press the primer bulb 10 times, pull the choke control up, hold the product on the ground, and pull the starter rope until it starts. Once started, push the choke down and let the engine warm up for 60 seconds. For a warm engine: Press the primer bulb 10 times and pull the starter rope until it starts.

Maintenance

Follow the maintenance schedule provided in the manual. Weekly tasks include cleaning external surfaces and checking idle speed. Yearly tasks include checking the spark plug, cleaning the carburetor, and cleaning the cooling system. Adjust the idle speed using the T-screw so that the cutting attachment does not rotate at idle.

Safety

Always wear appropriate personal protective equipment, including eye protection, hearing protection, and sturdy boots. Do not operate the product if you are fatigued or under the influence of alcohol or drugs. Keep the product away from flammable materials and do not refuel while the engine is running.
