Husqvarna 129R Brushcutter and Grass Trimmer Operator's Manual
Quick guide for the Husqvarna 129R brushcutter and grass trimmer. Includes assembly, fuel mixing, starting procedures, operation, and maintenance instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the Husqvarna 129R brushcutter and grass trimmer. Always use a 50:1 fuel mixture (2% oil) and ensure the product is fully assembled before use. Always wear appropriate personal protective equipment, including eye protection, hearing protection, and sturdy boots.
Assembly
Install the handlebar by removing the screw behind the throttle handle, moving the handle to the right, and tightening the screw. Install the harness clamp above the arrow on the shaft. Attach the blade guard or trimmer head as specified in the assembly section, ensuring the drive disc and support flange are correctly engaged.
Operation
Cold start: Push the primer bulb 10 times, pull the choke control up, hold the product on the ground, and pull the starter rope until it starts. Push the choke control down and let the engine warm up for 60 seconds.
Warm start: Push the primer bulb 10 times and pull the starter rope until it starts.
Maintenance
Follow the maintenance schedule. Clean the air filter regularly using warm soap water. Apply air filter oil only to foam filters. Check the spark plug and bevel gear grease (3/4 full) periodically. Sharpen blades with a flat file, ensuring all edges are sharpened equally to maintain balance.
Manufacturer information
Husqvarna
Practical help
Common problems
Engine low power
Examine spark plug, check air filter, check fuel mixture.
Engine not easy to start
Examine spark plug, check air filter, check fuel mixture.
Before use
- Check for missing/damaged parts
- Check nuts, screws, bolts
- Check blades
- Check locknut
- Check air filter
- Check throttle trigger lockout
- Check stop switch
Specs in practice
- Cylinder displacement
- 27.6 cm³
- Idling speed
- 2800-3200 min-1
Images and diagrams

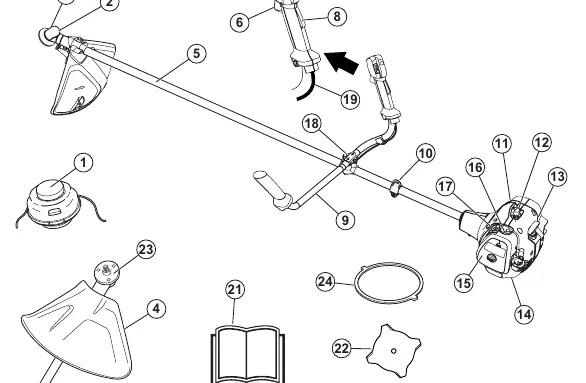

- Fig 1: Overview of components
- Fig 25: Handlebar assembly
- Fig 31-33: Starting procedure
- Fig 42-44: Air filter maintenance
Model compatibility
- Use only approved cutting attachments
- Use 50:1 fuel mixture
