Installation Guide for Immax 08260L / 08261L Delicate Boho Pendant Light
Quick installation guide for the Immax 08260L and 08261L Delicate Boho pendant lights. Includes safety instructions, wiring diagrams, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential installation and safety instructions for the Immax Delicate Boho pendant light series. Please note that for safety reasons, a minimum of 2 persons are required for the installation. All electrical wiring work must be performed by a qualified electrician in accordance with local regulations.
Technical Specifications
- Model: 08260L (D40) / 08261L (D60)
- Socket: E27
- Power Consumption: Max 40W
- Input Voltage: AC 220-240V, 50-60Hz
- Suspension Length: 120cm
- Material: Nature fibre, metal
Installation Instructions
Before beginning the installation, ensure the main power supply is switched off at the fuses. Unpack the luminaire and place it on a soft mat to prevent damage.
- Preparation: Ensure you have a second person to assist with the installation.
- Mounting: Secure the mounting bracket to the ceiling using appropriate screws and anchors.
- Wiring: Connect the electrical wires to the terminal block. Ensure the Live (L) and Neutral (N) wires are connected correctly.
- Final Assembly: Secure the luminaire canopy to the mounting bracket.
Improper installation or tampering with the luminaire will result in the termination of the warranty.
Cleaning and Care
The surface of the luminaire does not require special maintenance. Wipe the surface with a soft cloth or a dusting cloth to keep it clean.
Disposal
This product must not be disposed of with municipal waste. Please take it to the designated collection points for proper recycling.
Manufacturer information
Immax
Practical help
Common problems
Light does not turn on
Check if the fuse is switched on and the bulb is properly installed in the E27 socket.
Installation difficulties
The manufacturer requires a minimum of 2 persons for safe installation.
Before use
- Ensure the main power supply (fuses) is switched off.
- Verify that you have a qualified electrician for the wiring work.
- Prepare a soft mat to unpack and lay out the luminaire.
- Ensure you have a second person to assist with the installation.
Specs in practice
- Power consumption
- Maximum 40W per bulb.
- Input voltage
- AC 220-240V 50-60Hz.
- Suspension length
- 120cm total length.
Images and diagrams

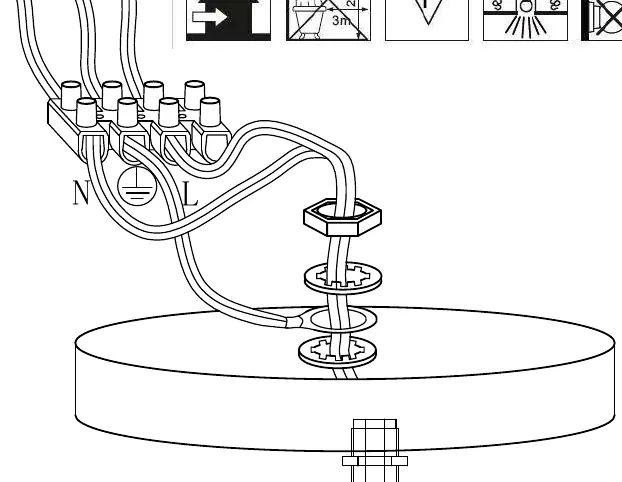

- The wiring diagram shows the connection of the Live (L) and Neutral (N) wires to the terminal block.
- The mounting bracket installation requires drilling holes and securing the bracket with screws.
Model compatibility
- Compatible with E27 bulbs up to 40W.
