Installation Manual for Immax Neo 07215L/07217L LED Chandelier
Quick installation guide for the Immax Neo 07215L and 07217L LED chandelier. Includes wiring instructions, technical specifications, safety warnings, and maintenance tips.
Table of contents
Quick guide from the manual
This document provides essential installation and safety instructions for the Immax Neo 07215L and 07217L LED chandelier. The device requires professional installation by a certified electrician. Always ensure the power supply is disconnected at the circuit breaker before beginning any work. The product is designed for indoor use and features Zigbee 3.0 connectivity for smart home integration.
Technical Parameters
- Protocol: Zigbee 3.0
- Power Consumption: 55W
- Luminous Flux: 4300lm
- Light Color: 2700-6000K (Adjustable)
- Input Voltage: AC 100-240V, 50-60Hz
- Illumination Time: 50,000 hours
- CRI(Ra): <86
- Material: Metal, plastic
- Dimensions: D800mm
Installation Steps
- Power Off: Turn off the fuses or circuit breaker before starting the installation.
- Marking: Adjust the position of the light and mark the mounting holes on the ceiling using a pencil.
- Drilling: Drill the holes required for installing the frame.
- Wiring: Pull the guide cable through the cable hole. Attach the base of the light fixture to the ceiling, secure the frame with screws, and connect the wires to the terminal block.
- Assembly: Attach and secure the lampshade to the mounting frame.
- Finalization: Turn the fuses back on to restore power.
Safety Information
Warning: Keep out of reach of children as the product contains small parts that may cause choking or injury if swallowed. Installation must only be performed by a person with appropriate electrical certification. Do not disassemble the product, as there is a risk of electric shock. Do not operate the device if the power cord shows signs of damage.
Maintenance
Protect the device from contamination and dirt. Wipe the device with a soft cloth. Do not use rough or coarse-grained materials, solvents, or other aggressive cleaners and chemicals.
Compatibility
The chandelier is compatible with the following systems: iOS, Android, Amazon Alexa, Apple Siri Shortcuts, Google Assistant, Philips HUE, TUYA, Tahoma, Lidl, and Ikea.
Manufacturer information
Immax
Practical help
Common problems
Product does not turn on
Check if the circuit breaker is switched off or if the power cord is damaged.
Installation difficulties
Ensure the installation is performed by a qualified technician in accordance with local electrical regulations.
Before use
- Ensure the power supply is turned off at the fuse box.
- Verify the mounting surface can support the chandelier.
- Check that you have all necessary tools (drill, pencil, screwdriver).
- Confirm the installation is performed by a certified electrician.
Images and diagrams

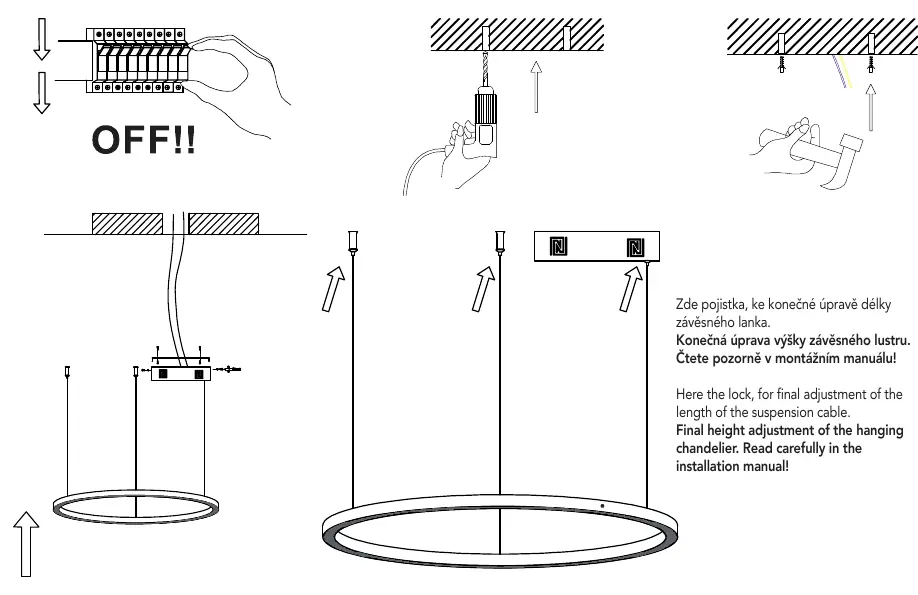

- The diagram illustrates the process of turning off the power, marking holes, drilling, pulling the cable, attaching the base, and securing the lampshade.
Model compatibility
- Compatible with iOS and Android devices.
- Works with Amazon Alexa, Google Assistant, and Apple Siri Shortcuts.
- Supports Philips HUE, TUYA, Tahoma, Lidl, and Ikea ecosystems.
