User Manual for JBL BassPro 8 Powered Subwoofer
Quick guide for the JBL BassPro 8 powered subwoofer. Learn about features, technical specifications, and what is included in the box for this 8-inch car audio system.
Quick answers from the manual
Quick answer
- The JBL BassPro 8 is a powered 8-inch subwoofer system with a built-in 100W RMS Class D amplifier, designed to provide tight, deep bass in car audio systems. p. 1, 2
Key actions
- Adjust the subwoofer volume using the optional RBC Wired Remote from the driver's seat. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power Handling | 100W RMS / 200W peak | Continuous and peak power output | p. 2 |
| Frequency Response | 30Hz – 200Hz | Range of frequencies the subwoofer can reproduce | p. 2 |
| Fuse | 10A | Required fuse rating for the unit | p. 2 |
Where to find it in the PDF
- Product Overview and Features p. 1
- Technical Specifications and Box Contents p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

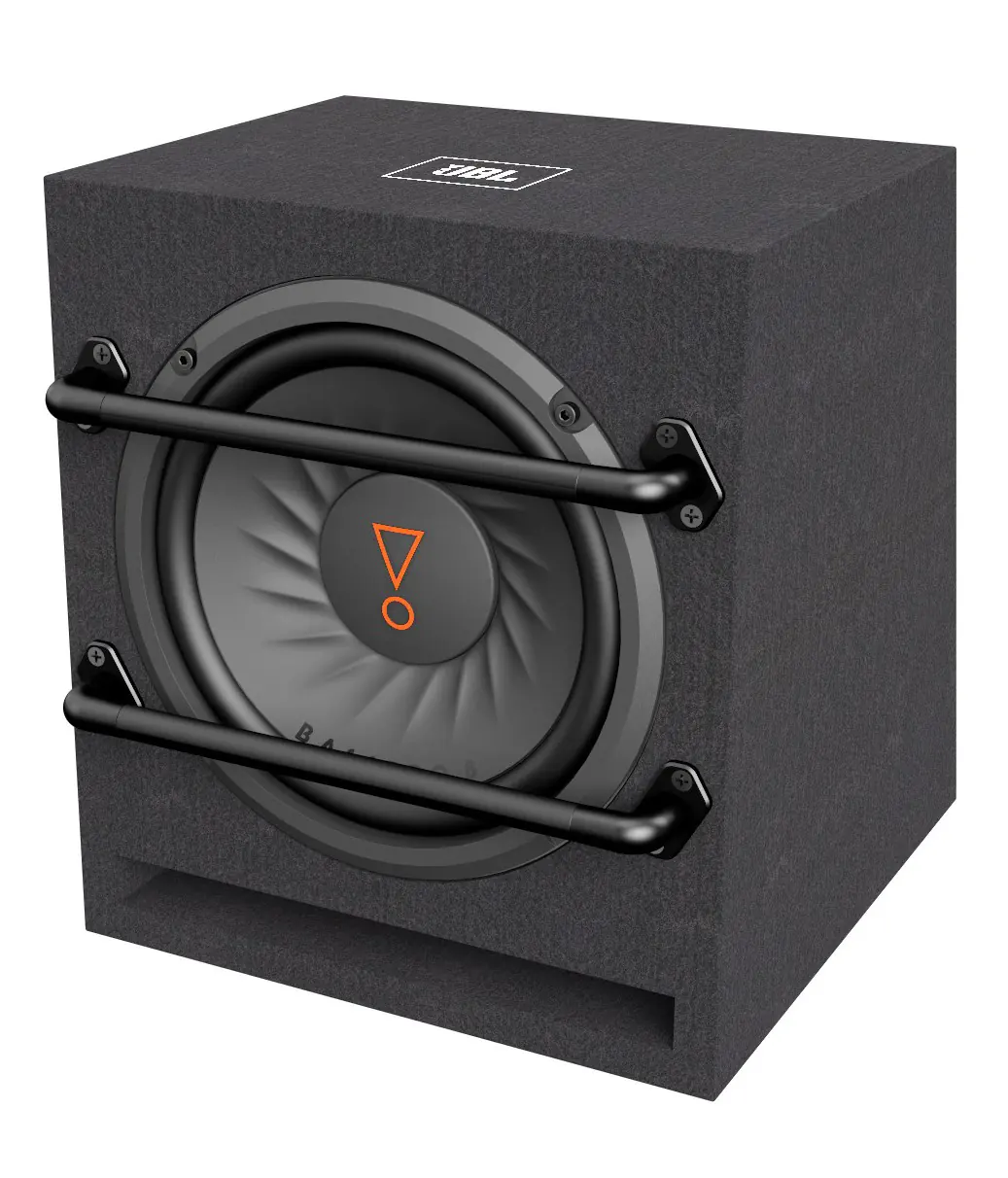

The JBL BassPro 8 is a compact, powered 8-inch (200mm) subwoofer system designed for car audio applications. It features a built-in Class D 100 watts RMS amplifier and a slot-port enclosure. This guide provides an overview of the system's features, contents, and technical specifications.
Features and Benefits
- Slot-Port Enclosure: Engineered and tuned by JBL for optimal frequency response. The enclosure is made of MDF (medium-density fiberboard) to minimize resonance.
- Built-in Amplifier: A Class D 100 watts RMS amplifier is integrated into the system, optimized for the woofer and enclosure acoustics.
- JBL RBC Wired Remote: An optional remote control allows for convenient volume adjustment from the driver's seat.
- Protection Bars: Oversized bars are included to protect the speaker from accidental damage.
- Reliability: The system undergoes rigorous testing, including freezing, baking, shaking, and high-power operation.
What's in the box
- 1 x Powered Subwoofer Enclosure
- 1 x Quick Start Guide
- 1 x Wire Harness with Connectors
- 2 x Two-color JBL Brand Stickers
- 1 x Bass volume remote control
Technical Specifications
- Power Handling: 100W RMS; 200W peak
- Frequency Response: 30Hz – 200Hz
- Fuse: 10A
- Maximum Current Draw: 9.5A
- Quiescent Current Draw:<0.5A (50mV – 16V Universal Interface)
- Crossover Frequency: 60Hz – 200Hz
- Crossover Slope: 12dB/octave
- Bass Boost: Up to +9dB @ 60Hz
- Dimensions: 9-7/8" x 11-1/4" x 10-3/8" x 8" (250mm x 285mm x 263mm x 203mm)
Manufacturer information
JBL
Practical help
Before use
- Verify all items are present: Subwoofer, wire harness, and remote control.
- Ensure the vehicle's electrical system can support the 10A fuse requirement.
- Plan the mounting location for the subwoofer enclosure.
- Consider the optional RBC Wired Remote installation for driver-seat volume control.
Specs in practice
- Power Handling
- The system provides 100W RMS continuous power and up to 200W peak power.
- Crossover Frequency
- Adjustable between 60Hz and 200Hz to filter out unwanted high frequencies.
Images and diagrams

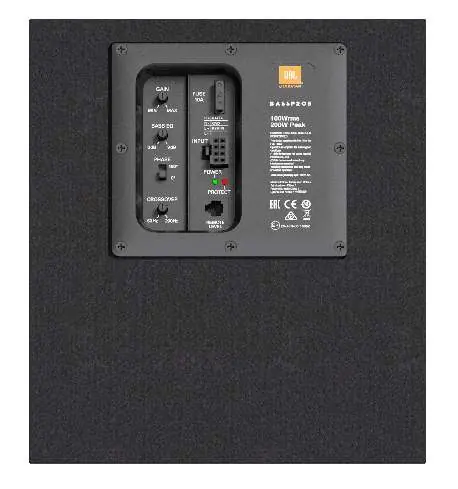

- The rear panel contains the gain control, bass EQ, phase switch, crossover adjustment, and input connections.
- The remote control unit features a single knob to adjust the subwoofer level (MIN to MAX).
Model compatibility
- Compatible with car audio systems requiring a powered subwoofer.
- The RBC Wired Remote is sold separately.
