User Manual for JBL Club 64 Car Speakers
Quick guide for the JBL Club 64 6-1/2" two-way car speakers. Includes installation instructions, mounting diagrams, wiring details, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The JBL Club 64 is a 6-1/2 inch (160mm) two-way car speaker designed for improved sound performance. Key features include a power handling capacity of 60W RMS (180W peak), a nominal impedance of 3.0 ohms, and a tweeter level adjustment switch located on the speaker frame.
Installation
The installation process involves securing the speaker into the vehicle's mounting location using the provided hardware. Follow these steps based on the provided diagrams:
- Ensure the mounting surface is prepared for a 160mm speaker.
- Use the provided mounting bracket (G) and clips (E) to secure the speaker frame to the vehicle panel.
- Use the provided screws (C and D) to fasten the speaker assembly securely.
- Ensure the speaker is oriented correctly according to the "Speaker Side" markings on the bracket.
Wiring and Settings
Proper wiring is essential for optimal performance:
- Connect the speaker wires to the terminals marked with positive (+) and negative (-) signs on the speaker frame.
- The speaker features a tweeter level adjustment switch. You can toggle this switch between 0dB and +3dB to customize the high-frequency output based on your preference and vehicle acoustics.
Specifications
The JBL Club 64 offers the following technical performance:
- Type: 6-1/2" (160mm) Two-way Car Speaker
- Power Handling: 60W RMS, 180W peak
- Sensitivity (@ 2.83V): 93dB
- Frequency Response: 48Hz – 21kHz
- Nominal Impedance: 3.0 ohms
- Crossover Point: 3.5kHz
Manufacturer information
JBL
Practical help
Common problems
Distorted sound at high volumes
Ensure the amplifier or head unit is not exceeding the 60W RMS power handling limit of the speaker.
Lack of high-frequency detail
Check the tweeter level switch on the speaker frame and ensure it is set to the +3dB position if more treble is desired.
Before use
- Verify the mounting location fits the 160mm (6-1/2 inch) speaker size.
- Ensure the vehicle's audio system is compatible with 3.0 ohm impedance speakers.
- Check that all necessary mounting hardware (screws, clips, brackets) is present.
- Disconnect the vehicle battery before beginning the installation process.
Specs in practice
- Power Handling (60W RMS)
- The continuous power the speaker can handle without damage. Avoid exceeding this limit.
- Nominal Impedance (3.0 ohms)
- The electrical resistance of the speaker. Ensure your amplifier is stable at this impedance.
- Sensitivity (93dB)
- Indicates how efficiently the speaker converts power into sound; higher numbers mean louder output with less power.
Images and diagrams
- Page 1 illustrates the wiring terminals and the tweeter level adjustment switch (0dB / +3dB).

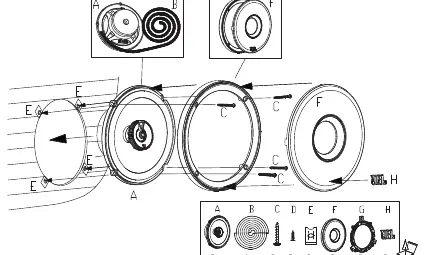

- Page 2 provides an exploded view of the speaker assembly, showing the bracket (G), clips (E), and screws (C).

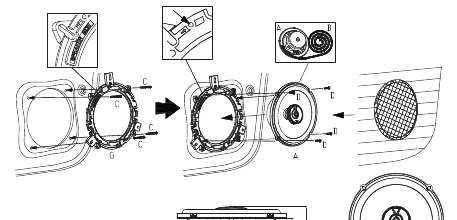

- Page 3 details the mounting steps and provides physical dimensions (127.0mm mounting depth, 158.0mm outer diameter).
Model compatibility
- Designed as a standard 6-1/2 inch (160mm) replacement speaker.
