Licensed Lamborghini Urus 12V Ride-On Car

Quick guide from the manual

This document provides essential instructions for the assembly, operation, and maintenance of the Kidzone Licensed Lamborghini Urus 12V ride-on car. Please read the full manual for complete safety information. The vehicle is intended for children aged 37-72 months with a maximum weight capacity of 61.7 lb (28 kg).

Safety warnings

• Adult supervision: Continuous adult supervision is required. Never leave children unattended.
• Assembly: Must be assembled by an adult. Keep small parts away from children during assembly.
• Usage: Do not use on roadways, near motor vehicles, steep inclines, steps, or swimming pools. Always wear shoes.
• Battery safety: Do not mix old and new batteries. Do not mix alkaline, standard, or rechargeable batteries. Never modify the electrical system.
• Weight limit: Do not exceed 61.7 lb (28 kg).
• Braking: This toy does not have braking capabilities.

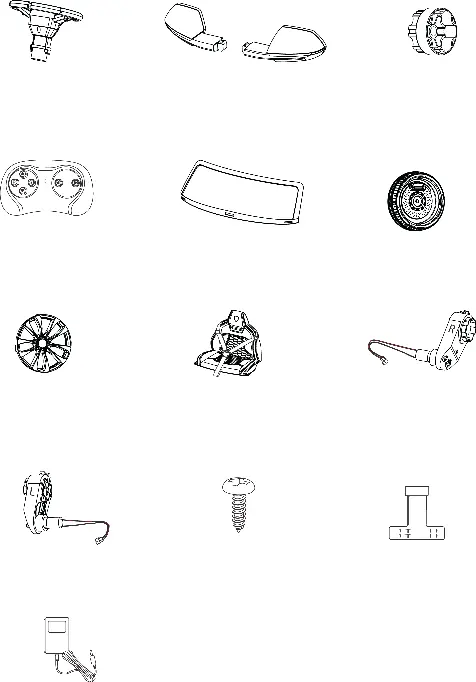

Assembly instructions

Follow these steps to assemble the vehicle:

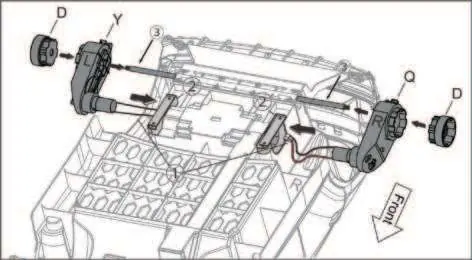

• Rear Axle and Motors: Use the spanner to loosen the M8 nut and gasket from the rear axle. Plug the motor terminals and slide the motors onto the axle, followed by the wheel connectors.

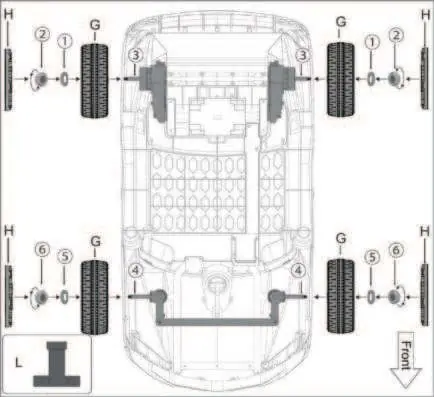

• Wheels: Slide the wheels onto the front and rear axles. Secure them with the M8 gasket and M8 nut, then cover with the wheel cap.
• Steering Wheel: Connect the steering wheel terminals and align it with the steering column. Press until it clicks into place.

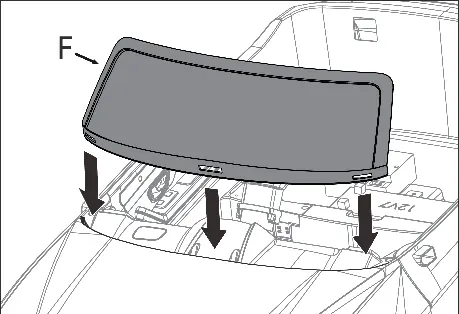

• Windshield and Seat: Install the windshield onto the car body. Align the seat hooks with the grooves on the car body and secure with the provided tapping screws.
• Mirrors: Attach the rear view mirrors to the car.
• Power: Connect the power terminal under the seat.

Charging the battery

The battery must be charged by an adult. The vehicle must be turned off during charging.

• Insert the charging cable into the charging port located below the vehicle seat.
• Plug the charger into a wall outlet.
• Charge time: 8-12 hours. Do not exceed 20 hours.
• Maintenance: Charge the battery at least once a month, even if the vehicle is not in use, to maximize battery life. Do not allow the battery to drain completely.

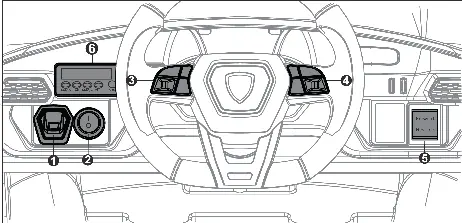

Operating the vehicle

• Start Switch: Turns the product on and off.
• Light Switch: Turns the lights on and off.
• Music/Horn: Use the buttons on the steering wheel or dashboard to control music and horn.
• Forward/Reverse: Use the switch to change direction. Ensure the vehicle comes to a complete stop before changing direction.
• Speed Switch: Controls the speed (low or high). Note: The vehicle only operates in one speed for reverse.

Remote control

The remote control should only be used by an adult.

• Pairing: Insert batteries into the remote. Turn on the vehicle power. The LED indicator on the remote will flash; pairing is successful when the LED stops flashing.
• Functions: Use directional buttons to move the vehicle. Press the P button to enable the emergency brake (disables all running functions). Press S to adjust speed.

Troubleshooting

• Vehicle does not move: Check battery connections, replace the fuse, or fully charge the battery.
• Vehicle runs slow: Ensure the user weight is under 28 kg and the battery is fully charged.
• Battery does not charge: Check if the charger is firmly plugged into the power source and the charging port.
