User Manual for Lauben Kitchen Machine 1200BC/1200WT
Quick guide and user manual for the Lauben Kitchen Machine 1200BC and 1200WT. Includes setup, usage instructions for mixing, blending, meat grinding, and cleaning.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the Lauben Kitchen Machine 1200BC and 1200WT. Before first use, clean all accessories with soapy water, rinse, and dry. Place the appliance on a flat, clean, and dry surface.
Product description

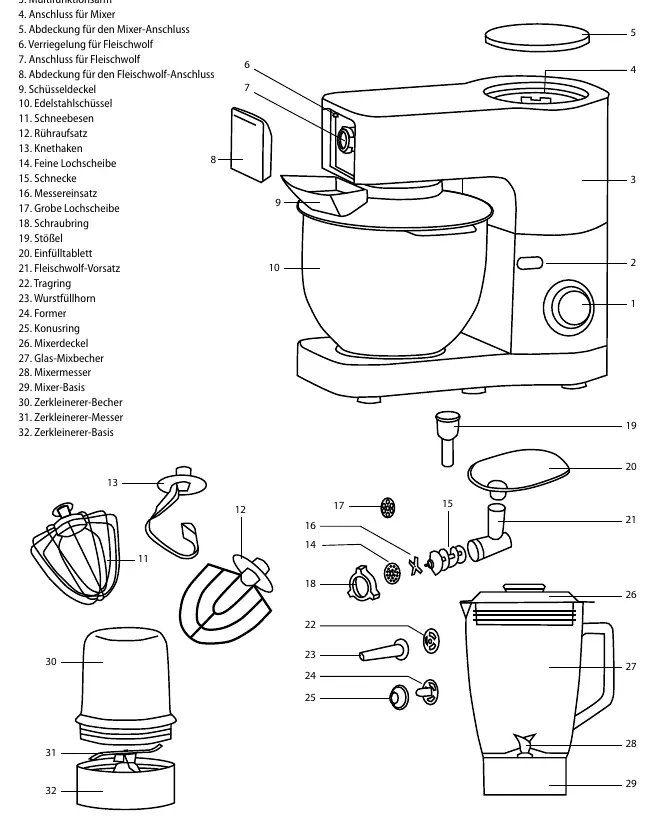

The kitchen machine includes a multifunction arm, stainless steel bowl, blender, meat grinder, and chopper attachments. Refer to the numbered diagram on page 5 for specific component identification.

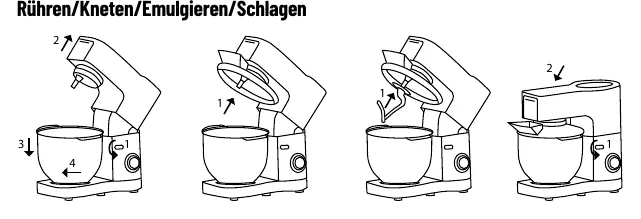

Mixing, Kneading, and Whipping
To use the mixing bowl:
- Press the release button to lift the multifunction arm.
- Attach the bowl and turn until it clicks.
- Attach the desired tool (whisk, mixer blade, or dough hook) and lock it with a quarter turn.
- Lower the arm until it clicks into the horizontal position.
Blending
To use the blender:
- Ensure the multifunction arm is in the horizontal position.
- Remove the blender connector cover.
- Attach the assembled blender and lock it by turning counterclockwise.
- Do not run the blender empty for more than 1 minute.

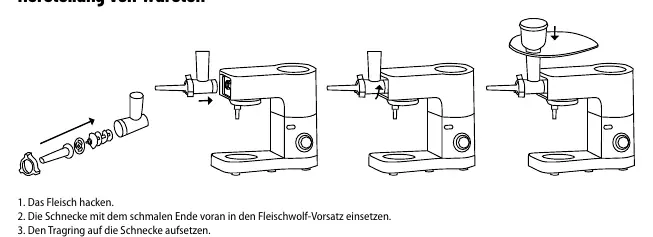

Meat Grinder, Sausages, and Kebabs
Follow the specific assembly steps for the meat grinder, ensuring the worm shaft is inserted with the narrow end first. Use the pusher to feed meat; never use fingers or other utensils.
Cleaning and Maintenance
Unplug the appliance before cleaning. Do not immerse the motor in water. Most accessories are dishwasher safe, except for the metal parts of the meat grinder (meat feeder, grinding plates, worm shaft, meat chopper, screw ring). Keep grinding plates and the chopper lubricated with cooking oil after each use.
Manufacturer information
Lauben
Practical help
Common problems
Appliance does not start
Ensure all accessories are properly fitted and the multifunction arm is locked in the horizontal position.
Blender leaking or not working
Ensure the blender is correctly assembled and locked counterclockwise. Do not run empty for more than 1 minute.
Meat grinder jammed
Use the pusher to feed meat. Never use fingers or other utensils. Ensure the worm shaft is inserted correctly.
Before use
- Clean all accessories with soapy water, rinse, and dry.
- Place the appliance on a flat, clean, and dry surface.
- Ensure the mains voltage matches the rating label.
- Check that all parts are properly assembled and locked.
Images and diagrams
- The manual includes detailed diagrams for assembling the multifunction arm, meat grinder, and blender attachments.
- Numbered parts list (1-32) helps identify all included accessories.
Model compatibility
- The appliance is designed for household use only.
- Do not use with external timers or remote controls.
