Quick Setup Guide for LG 24BA450 and 27BA450 Series LED LCD Monitor
Quick setup guide for LG 24BA450 and 27BA450 series LED LCD monitors. Includes assembly instructions, cable connection guide, and safety warnings.
PDF source: polski · summary: English
Quick answers from the manual
Quick answer
- This is a quick setup guide for the LG 24BA450 and 27BA450 series monitors, covering assembly, cable connection, and basic safety precautions. p. 1
Key actions
- Assemble the stand p. 6
- Connect cables p. 7, 8
First start
- Connect the power cable and signal cables (HDMI/DP/D-SUB) to the monitor and your PC. p. 8, 12
Show 2 more answers Show less
Problems and fixes
Compatibility issues
Use the supplied cables. Avoid using third-party DVI/DP to HDMI adapters.
p. 9, 10, 11Where to find it in the PDF
- Assembly p. 6
- Connections p. 8
Table of contents
Manual images
Click an image to enlargeQuick Setup Guide
This guide covers the setup and installation of the LG 24BA450 and 27BA450 series LED LCD monitors. Please follow the instructions to ensure proper assembly and operation.
Package Contents
Ensure all supplied components are present, including the monitor, stand, and necessary cables (HDMI, DisplayPort, etc.). It is strongly recommended to use only the supplied components to avoid compatibility issues and potential device malfunction.
Assembly
Follow the steps provided in the manual to attach the stand to the monitor. Ensure the stand is securely fastened before placing the monitor on a desk. Use the provided screws or locking mechanism as indicated in the assembly diagrams.
Cable Connections
Connect your PC or device using the appropriate ports located on the back of the monitor: DisplayPort (DP IN), HDMI (HDMI IN), or D-SUB (D-SUB IN). A headphone jack is also available for audio output. Use the cable management clip to organize your cables.
Safety Precautions
- Take a 10-minute break after every 30 minutes of use.
- Children under 2 years old should not watch the screen.
- Children over 2 years old should not watch for more than 1 hour per day.
- Avoid touching the screen surface to prevent damage.
- Use only the cables supplied with the product to avoid compatibility issues.
Regulatory Information
The manual includes a declaration regarding hazardous substances (Pb, Hg, Cd, Cr+6, PBB, PBDE) in the monitor components, confirming compliance with safety standards.
Manufacturer information
LG Electronics
Practical help
Common problems
Compatibility issues with display
Use only the cables supplied with the product. Using third-party DVI-to-HDMI or DP-to-HDMI cables may cause malfunctions or display issues.
Before use
- Check that all supplied components are present
- Ensure the stand is correctly assembled
- Use only supplied cables for connection
- Verify power source compatibility
Show more Show less
Images and diagrams

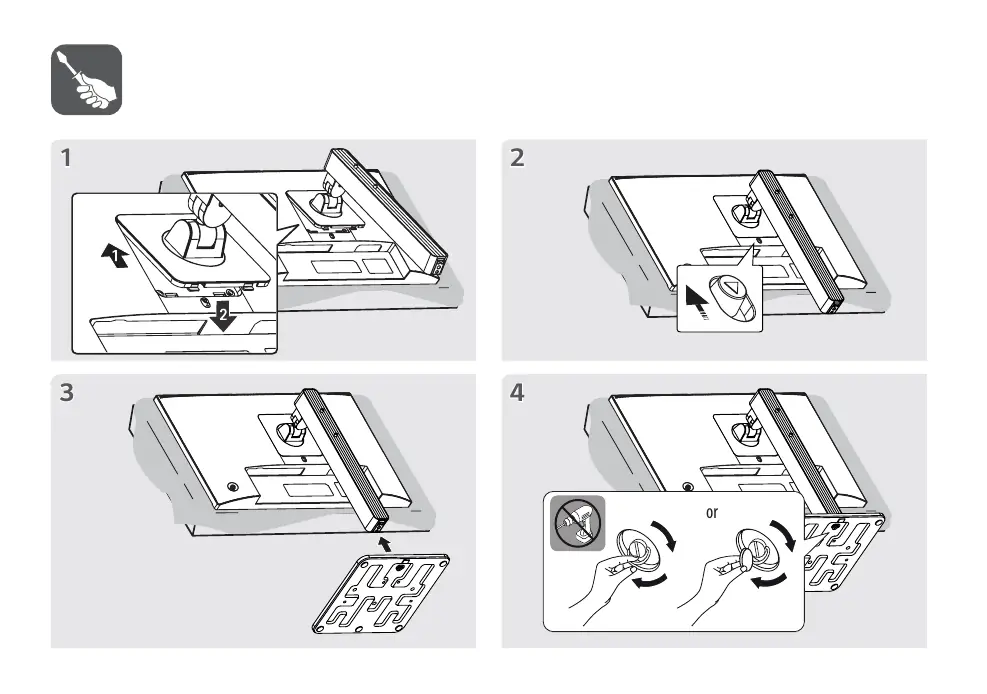

- Page 6: Stand assembly steps
- Page 7: Cable management instructions

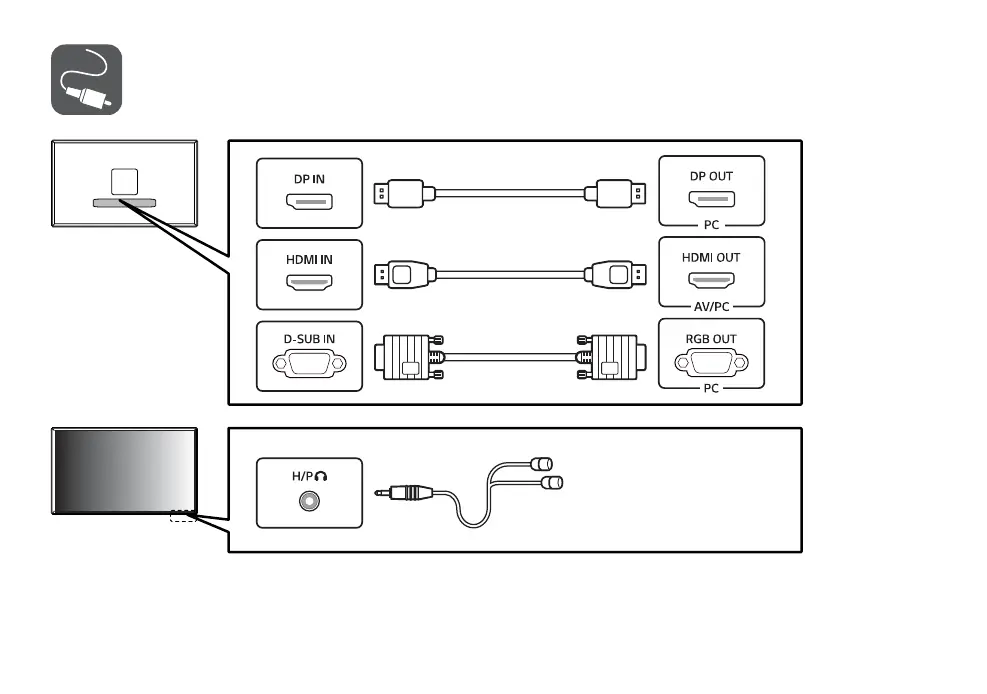

- Page 8: Port identification and connection guide
- Page 12: Power connection steps
Model compatibility
- Use supplied cables to avoid compatibility issues
- Avoid DVI to HDMI or DP to HDMI adapters if possible
