LG 24BA560 / 27BA560 / 24BA550 / 27BA550 Monitor User Guide
Quick guide for LG 24BA560, 27BA560, 24BA550, and 27BA550 monitors. Includes assembly instructions, connection diagrams, and technical specifications.
Quick answers from the manual
Quick answer
- This manual provides assembly, connection, and specification details for the LG 24BA560, 27BA560, 24BA550, and 27BA550 monitors. p. 1
Key actions
- Assemble the monitor stand by attaching the base and securing it to the panel. p. 2
- Connect video cables (DP, HDMI, D-Sub) and power cable to the rear ports. p. 3, 4
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Resolution | 1920 x 1080 | Native display resolution | p. 5, 6 |
| Vertical Frequency | 60 Hz | Refresh rate | p. 5, 6 |
| Power | 100-240 V~ 50/60 Hz 0,69 A | Power input requirements | p. 5, 6 |
Show 1 more answers Show less
Where to find it in the PDF
- Assembly Instructions p. 2
- Connection Diagram p. 3
- Technical Specifications p. 5, 6
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential setup and configuration information for the LG 24BA560, 27BA560, 24BA550, and 27BA550 monitor series. It covers physical assembly, cable connections, and technical specifications.
Assembly
Follow these steps to assemble the monitor stand:
- Attach the stand base to the monitor neck.
- Secure the stand to the monitor panel.
- Ensure the stand is locked in place.
- Use the provided cable management clip to organize cables behind the stand.
Connections
The monitor supports various input types. Ensure you use the correct cables for your device:
- USB IN / USB UP: For data transfer and upstream connection.
- DP IN: DisplayPort connection for high-quality video.
- HDMI IN: Standard HDMI connection for video and audio.
- D-SUB IN: VGA/Analog connection.
- H/P: Headphone output jack.
Power Setup
Connect the power cable to the AC-IN port on the back of the monitor and plug it into a wall outlet. Press the power button to turn on the device.
Technical Specifications
The monitors support a resolution of 1920 x 1080 at 60 Hz. Power input is 100-240 V~ 50/60 Hz, 0.69 A.
Dimensions and Weight (24-inch models)
- With Stand: 538.6 x 239.9 x 508.9 mm, 4.45 kg
- Without Stand: 538.6 x 50.8 x 319.8 mm, 2.65 kg
Dimensions and Weight (27-inch models)
- With Stand: 610.8 x 239.9 x 536.6 mm, 5.05 kg
- Without Stand: 610.8 x 50.8 x 360.3 mm, 3.25 kg
Manufacturer information
LG Electronics
Practical help
Before use
- Verify all items are present: monitor, stand, and cables.
- Place the monitor on a flat, stable surface.
- Ensure the power source matches the 100-240 V requirement.
- Use the cable management clip to prevent cable strain.
Specs in practice
- Vertical Frequency
- The monitor operates at a refresh rate of 60 Hz.
Show more Show less
Images and diagrams

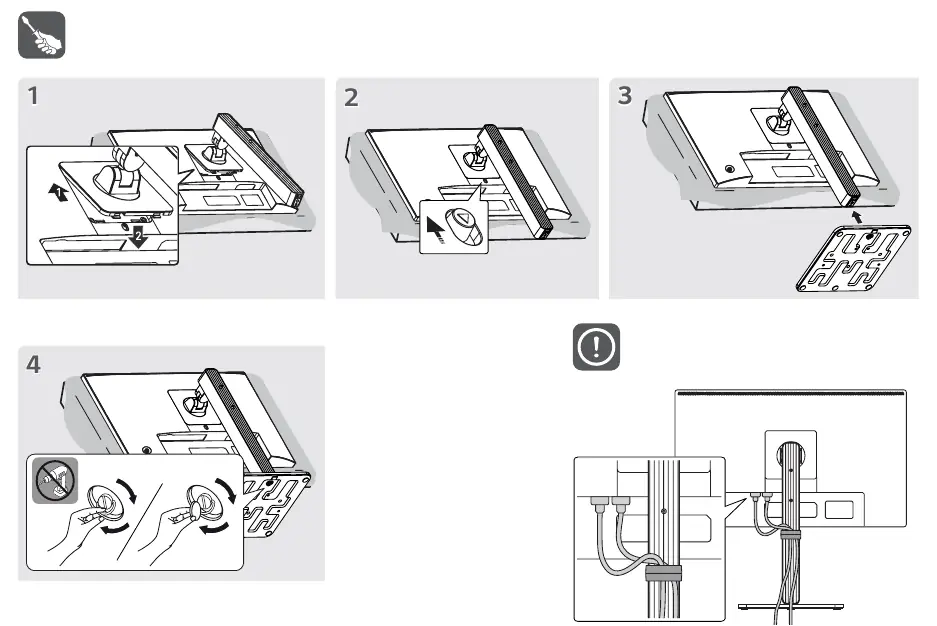

- Page 2 illustrates the 4-step assembly process for attaching the stand.

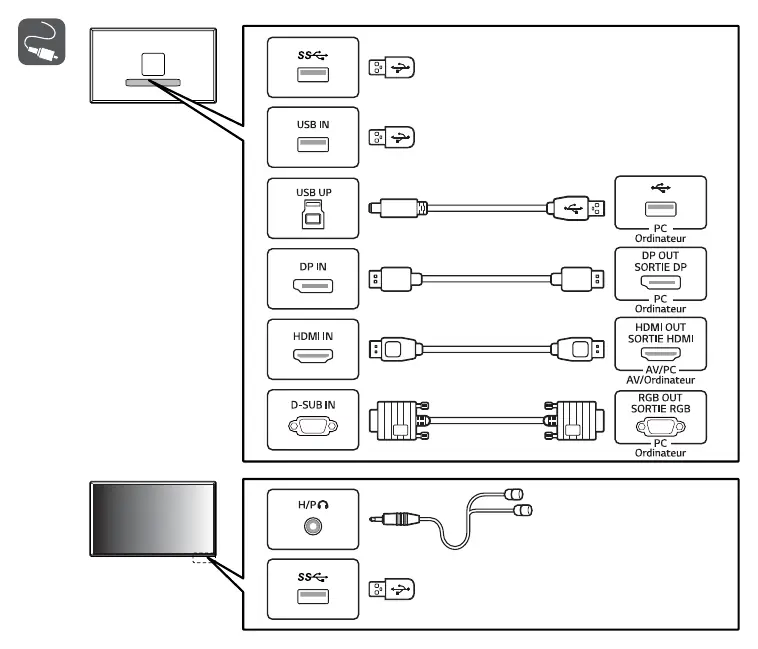

- Page 3 provides a visual guide for connecting USB, DisplayPort, HDMI, D-Sub, and audio cables.
- Page 4 shows the power connection procedure.
Model compatibility
- Compatible with standard 100-240V AC power outlets.
- Supports multiple input sources: USB, DP, HDMI, D-Sub.
