Operating Instructions for Lloytron Industrial 2000w Fan Heater F3001RD
Comprehensive operating guide for the Lloytron Industrial 2000w Fan Heater (Model F3001RD). Includes setup, safety precautions, operation, maintenance, and wiring instructions.
Quick answers from the manual
Quick answer
- The Lloytron F3001RD is a 2000W industrial fan heater with three heat settings and a variable thermostat. It is designed for indoor use and includes overheating protection. p. 1, 2, 5
Key actions
- Operating the heater p. 5
- Cleaning the unit p. 6
First start
- First use procedure p. 5
Problems and fixes
Heater stops working due to overheating
Switch off the heater, pull out the plug, remove the cause or correct the malfunction, and allow it to cool down.
p. 5Maintenance and reset
- Overheating safety reset p. 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Operating Voltage | 220-240V ~ 50Hz | Standard UK mains power | p. 2, 5 |
| Power Consumption | 2000w | Maximum power output | p. 2 |
Where to find it in the PDF
- Front Cover p. 1
- Features and Specifications p. 2
- Safety Precautions p. 3
- Location of Controls p. 4
- Operation p. 5
- Cleaning and Care p. 6
- Plug Rewiring p. 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

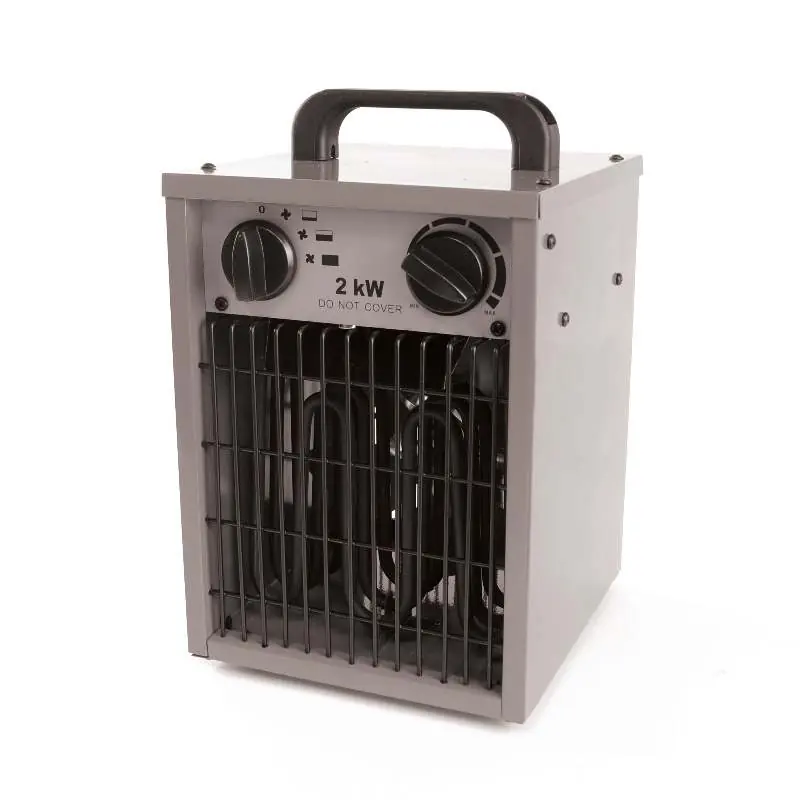

The Lloytron Industrial 2000w Fan Heater is designed for efficient indoor heating. Before operation, ensure the unit is undamaged and the fan operates correctly. Always maintain a minimum distance of 50cm from walls or objects to ensure proper airflow. Do not cover the heater during operation. If the unit stops unexpectedly, it may have triggered the overheating safety feature; switch it off, unplug it, remove any obstructions, and allow it to cool down.
Features
- Powerful, efficient heating and cooling
- Three heat settings
- Cold blow option
- Variable thermostat
- Safety thermal cut-out and over-heat protection
- IP24 rated
Location of Controls
The heater features the following controls:
- Carrying Handle: For easy transport.
- Power Indicator: Shows when the unit is powered.
- Thermostat Control: Adjusts the desired temperature.
- Fan & Heating Element: The main heating component.
- Heat Setting: Selects between ventilation, low, medium, or high heat.
Operation
First Use: Upon first use, you may notice smoke or vapor as protective oil on the elements burns off. This is normal and will last approximately 10 seconds.
Settings: Plug the unit into a 220-240V ~ 50Hz outlet and use the heat setting knob:
- 0: OFF
- Fan Icon: Ventilation without heating
- I: Low Heat
- II: Medium Heat
- III: High Heat
Thermostat: Set the thermostat knob to the desired position. The heater will automatically switch on and off to maintain the set temperature. To find your ideal setting, set the dial to maximum, and as the temperature becomes comfortable, slowly turn the dial down until the heater switches off.
Safety Precautions
- Do not use in bathrooms, near water, or in vehicles.
- Do not use near combustible items like gasoline, paint, or curtains.
- Keep at least 50cm away from walls, objects, and people.
- Do not use with external timers or remote control systems.
- Always keep on the floor.
- Do not use with extension leads unless rated at 15A or higher.
- Keep away from children.
Cleaning and Maintenance
Always disconnect the appliance from the electricity supply before cleaning.
- Ventilation slots: Clean occasionally with a clean, dry paint brush.
- Exterior surface: Clean with a damp cloth only.
- Warning: Do not use steel wool, scouring pads, or abrasive cleaners.
UK Plug Rewiring
The appliance comes fitted with a 3-pin BSI approved plug. If you need to change or refit the plug:
- Blue: Neutral (N)
- Brown: Live (L)
- Green and Yellow: Earth (E)
The appliance must be protected by a 13 Amp fuse (BS1363). Use only an ASTA approved BS1362 fuse.
Manufacturer information
Lloytron Ltd
Practical help
Common problems
Heater turns off unexpectedly
The overheating safety feature has been triggered. Switch off the heater, pull out the plug, remove the cause of the obstruction, and allow it to cool down.
Smoke or vapor during first use
This is normal as protective oil on the elements burns off. It will last for approximately 10 seconds.
Before use
- Check that the unit has not been damaged in transit.
- Ensure the fan operates correctly.
- Verify that the supply line voltage matches the rating label.
- Ensure there is at least 50cm of clearance from walls and objects.
- Ensure the heater is placed on the floor.
Specs in practice
- Operating Voltage
- 220-240V ~ 50Hz
- Power Consumption
- 2000w
Images and diagrams
- The control panel features a heat setting dial (0, Fan, I, II, III) and a thermostat dial (Min to Max).
- The plug wiring diagram shows the correct connection for Live (Brown), Neutral (Blue), and Earth (Green/Yellow) wires.
Model compatibility
- Must be protected by a 13 Amp fuse (BS1363).
- Do not use with external timers or remote control systems.
- Do not use with extension leads unless rated at 15A or higher.
