Installation and User Guide for Majorcom DL-SE 20-200/T+ EN54 Ceiling Speaker

Quick guide from the manual

The Majorcom DL-SE 20-200/T+ EN54 is a 2-way ceiling speaker designed for voice alarm systems, certified under EN 54-24. It features a 20W power rating, a 100V transformer, and a metal housing. It is suitable for installation in ceilings with a thickness of approximately 1 to 45 mm.

Product Overview

This speaker is equipped with a 200 mm wideband driver and includes a fire dome. The design is inspired by modern LED lighting, and the unit is protected against environmental influences with an IP21C rating. Installation is facilitated by WAGO 221 connectors and robust spring clips.

Technical Specifications

The speaker supports multiple power settings via the 100V transformer. Key specifications include:

• Power settings: 20W / 10W / 5W
• Dimensions: 265 x 115 mm
• Frequency response: 47 - 22,000 Hz
• SPL (Pmax/4m): 93.9 dB
• SPL (1W/1m): 96.8 dB

Installation Instructions

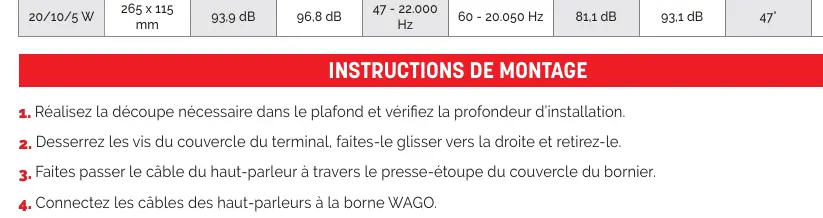

1. Perform the necessary cutout in the ceiling and verify the installation depth.
2. Loosen the screws on the terminal cover, slide it to the right, and remove it.
3. Pass the speaker cable through the cable gland of the terminal cover.
4. Connect the speaker cables to the WAGO terminal.
5. Replace the terminal cover on the back of the speaker, slide it to the left, and tighten the screws.
6. Fold the spring clips of the speaker feet and insert the speaker into the ceiling cutout until it sits flush with the ceiling.

Wiring

The power wiring configuration is as follows:

• Black: COM
• Red: 20 W
• White: 10 W
• Green: 5 W
