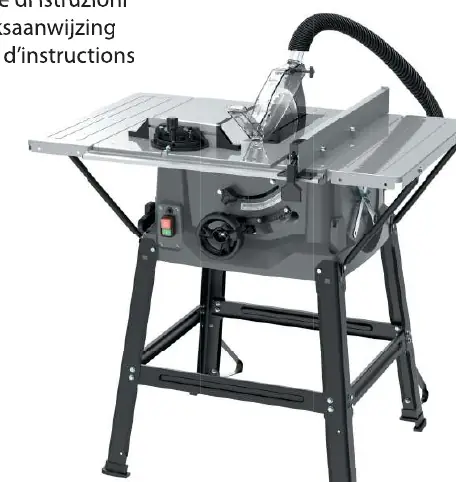

MAX 31131 1800W 250mm Table Saw

Product Description

The MAX 31131 is a powerful 1800W table saw designed for precision cutting. It features a 250mm blade, adjustable cutting depth, and a sturdy frame for stable operation. This tool is ideal for various woodworking tasks, offering reliable performance and safety features.

Technical Data

• Voltage/Frequency: 220-240 V~ 50 Hz
• Power: S1 1800 W, S6 25% 2000 W
• Speed: 5000 rpm
• Saw Blade: Ø250xØ30x2.8 mm
• Cutting Depth (90°/45°): Max. 85/65 mm
• Bevel Angle: 0-45°
• Table Size: 893x583 mm

Safety

General Safety: Always read the instructions before use. Keep the work area clean and well-lit. Do not operate in explosive environments. Keep children and bystanders away.

Electrical Safety: Ensure the plug matches the outlet. Do not modify the plug. Avoid contact with earthed surfaces. Protect the tool from rain and moisture.

Personal Safety: Stay alert and use common sense. Wear personal protective equipment, including eye protection, ear protection, and a dust mask. Avoid accidental starting.

Table Saw Specific Safety: Always use the blade guard and riving knife for through-cutting. Never place fingers or hands in line with the saw blade. Never perform operations freehand; always use the rip fence or mitre gauge.

Assembly and Setup

Assemble the frame by attaching legs to the corners of the saw. Install the bench extensions and ensure the riving knife is correctly positioned (3-5 mm from the blade). Always ensure the saw is disconnected from the power supply before assembly or maintenance.

Operation

Ensure the saw is securely fixed. Use the push stick for small workpieces. Always hold the main part of the workpiece. If the blade jams, turn off the tool immediately and disconnect from power before clearing the jam.

Maintenance and Troubleshooting

Keep the saw clean and free of sawdust. Regularly check that motor ventilation holes are not blocked. Lubricate moving parts with light oil. If the carbon brushes are worn, they must be replaced. If the saw is overloaded, it will automatically shut off; allow it to cool for 30 minutes before resetting the overload protection.

Disposal

Electrical and electronic equipment must be collected separately and not disposed of with unsorted household waste.
