The Noaton Polaris 11045 is a ceiling fan with integrated LED lighting, designed for indoor domestic use. It is controlled via an infrared remote control. Installation must be performed by a qualified electrician to ensure safety and compliance with local electrical regulations.
Safety instructions
- Installation must be performed by a qualified electrician.
- The fan must be installed at least 230 cm above the ground.
- Ensure a minimum clearance of 30 cm from the nearest obstacle or wall.
- The mounting surface must support at least 30 kg.
- Do not connect the fan to dimmers, potentiometers, or wall switches, as this may damage the motor.
- Use only the supplied remote control for operation.
- Do not install in high-humidity areas like bathrooms or swimming pools.
Installation
- Mount the supplied bracket to the ceiling or wall using the provided dowels and screws.
- Disconnect the household power supply before starting.
- Connect the household circuit wires to the corresponding wires from the fan.
- Attach the fan body to the bracket using the screws, ensuring wires are not pinched.
- Check that all screws are properly tightened.
- Restore power supply.
Remote control
The remote control uses infrared signals and does not require pairing. It has a range of approximately 4 meters. Ensure there are no obstacles between the remote and the fan, and point the top of the remote (IR diode) directly at the fan.
Maintenance
Due to the rotating motion, some connections may loosen over time. Check and tighten all screws at least twice a year. Clean the surface regularly with a soft, damp cloth. Do not use water, chemicals, detergents, alcohol, or abrasives, as these can damage the motor or electronic components.
Troubleshooting
If the fan does not rotate, check fuses, wiring connections (by a professional), and remote control batteries. If the fan is noisy, tighten screws and the mounting bracket. If the light does not turn on, contact a service center.
Manufacturer information
Noaton
Practical help
Common problems
Fan does not rotate
Check fuses, verify wiring connections (qualified electrician required), replace remote batteries, or check power supply.
Noisy operation
Tighten loose screws, check the mounting bracket, and ensure only the original remote control is used.
Mechanical noise
Let the fan run for at least 8 hours during the first start to allow parts to settle.
Light does not turn on
Contact a service center for assistance.
Insufficient airflow
Remove objects in close proximity to the fan or ensure the fan diameter is appropriate for the room size.
Before use
- Ensure installation is performed by a qualified electrician.
- Verify the ceiling can support at least 30 kg.
- Ensure blades are at least 230 cm above the ground.
- Ensure at least 30 cm clearance from walls or obstacles.
- Do not connect to dimmers or wall switches.
- Check that all screws are tightened after installation.
Specs in practice
- Lighting power
- 2x21 W
- Remote control
- Infrared (IR), max 4m range
Images and diagrams

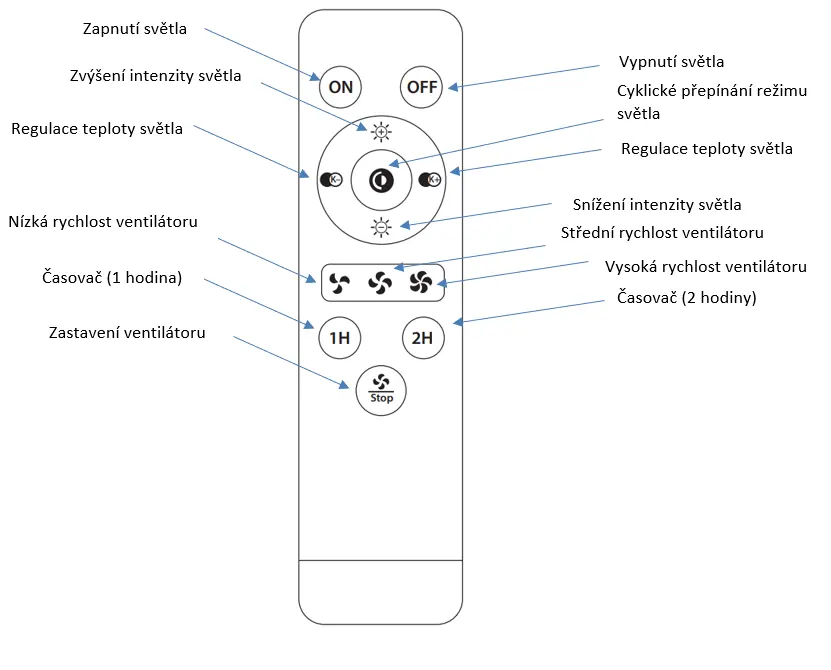

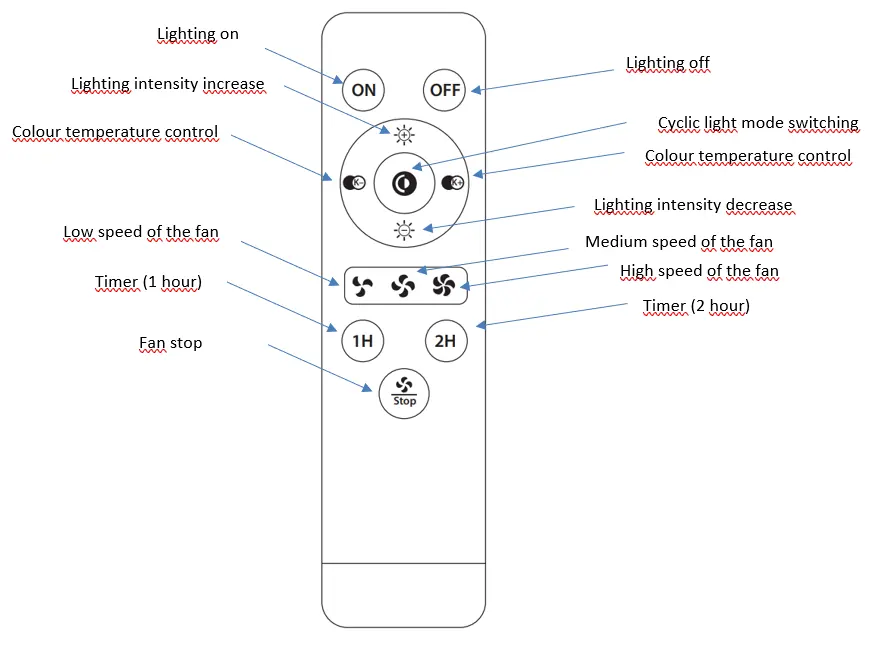

- The remote control features buttons for light on/off, light intensity adjustment, color temperature control, fan speed settings (low, medium, high), timer (1h, 2h), and fan stop.
Model compatibility
- Indoor use only.
- Not suitable for high humidity rooms like bathrooms or swimming pools.
