User Manual for Palmer PWT12IEC Universal Pedalboard Power Supply
Comprehensive user guide for the Palmer PWT12IEC pedalboard power supply. Learn about installation, output settings, safety precautions, and technical specifications to power your effect pedals correctly.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Palmer PWT12IEC is a universal power supply for effect pedals. It features 12 isolated DC outputs, one non-isolated DC output, and USB charging ports. Important: Always verify the polarity and voltage requirements of your effect pedals before connecting them to avoid damage. The unit uses a standard IEC power cable.
Product description
The PWT12IEC provides a versatile power solution for pedalboards. It includes 12 isolated outputs for clean power and one high-current non-isolated output. Additionally, it features USB-A and USB-C ports (up to 18W total) for charging mobile devices.
Included items
- 1 x PWT12IEC power supply unit
- 1 x Mains cable with IEC connector
- 5 x DC cable 30 cm
- 5 x DC cable 60 cm
- 5 x DC cable 90 cm
- 1 x Set of self-adhesive rubber feet
- Operating instructions

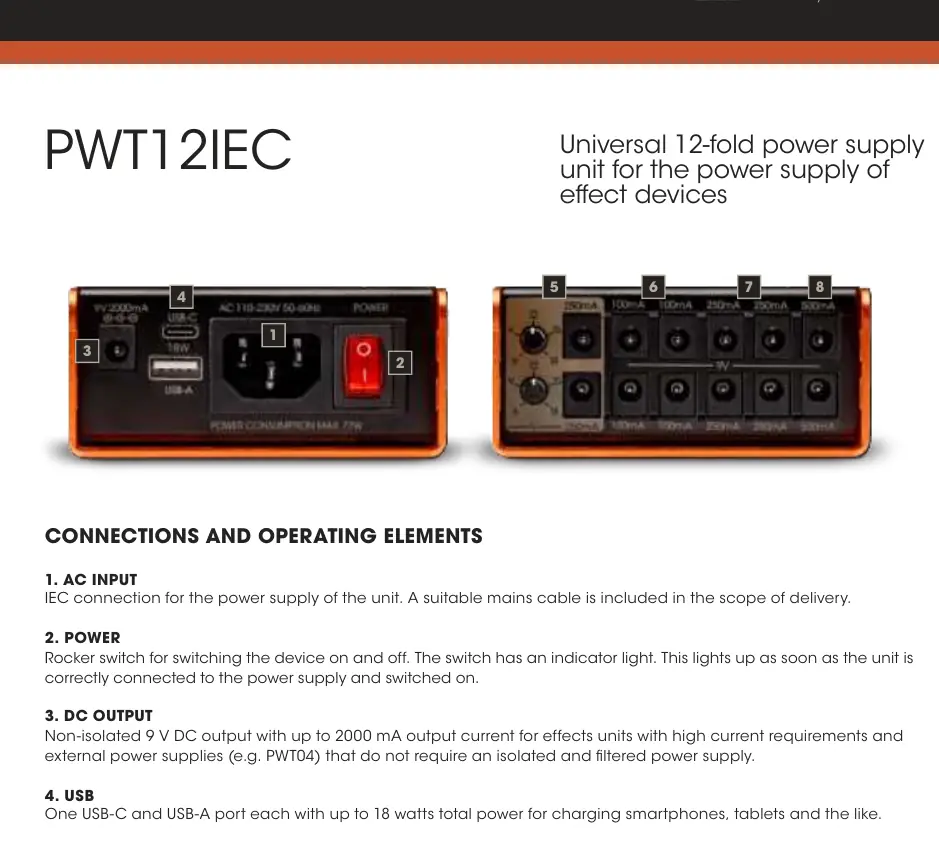

Connections and operating elements
The unit features the following connections:
- AC INPUT: IEC connection for power supply.
- POWER: Rocker switch with indicator light.
- DC OUTPUT (Non-isolated): 9V, up to 2000mA. Suitable for high-current devices or external power supplies (e.g., PWT04).
- USB: USB-C and USB-A ports for charging devices (up to 18W total).
- OUTPUT 1 AND 2: Isolated, adjustable voltage (6V to 18V), up to 250mA. Use potentiometers to set voltage before connecting the pedal.
- OUTPUT 3 TO 6: Isolated, 9V, up to 100mA each.
- OUTPUT 7 TO 10: Isolated, 9V, up to 250mA each.
- OUTPUT 11 AND 12: Isolated, 9V, up to 500mA each.
Mounting
The housing includes mounting holes on the base plate and side panels. This allows for secure attachment to a pedalboard, for example, using cable ties.
Safety warnings
Read carefully to prevent damage:
- Reverse Polarity: Ensure the pedal's input polarity matches the power supply (center-negative). Connecting a center-positive pedal will cause damage.
- Overvoltage: Ensure the output voltage of the power supply matches the pedal's required input voltage.
- AC Input: Do not connect pedals designed for AC power to this DC power supply.
- General: Do not open the device or modify it. Keep away from children due to small parts.
Technical data
- Input voltage: AC 100 - 240 V
- Isolated outputs: 12
- Output voltage range: 6V - 18V (adjustable on outputs 1-2)
- Max output power: 30.6 W
- Dimensions: 168 x 93 x 42 mm
- Weight: 0.54 kg
Disposal
This device is subject to the European WEEE Directive. Do not dispose of it in household waste. Use authorized disposal facilities or municipal collection points. Batteries and rechargeable batteries must also be disposed of separately.
Practical help
Common problems
Pedal not working or damaged after connection
Verify that the pedal's polarity is center-negative. If it is center-positive, it is incompatible and may be damaged.
Pedal damaged by incorrect voltage
Always check the required input voltage of your pedal. For outputs 1 and 2, ensure the potentiometer is set to the correct voltage before connecting.
Device does not power on
Check the IEC power cable connection and ensure the power switch is in the ON position (indicator light should be lit).
Before use
- Verify the polarity of your effect pedals (must be center-negative).
- Check the voltage requirements of your pedals.
- For outputs 1 and 2, adjust the voltage using the potentiometer before plugging in the pedal.
- Ensure the IEC power cable is securely connected.
- Check that the total power consumption of connected devices does not exceed the unit's limits.
Specs in practice
- Isolated Outputs
- Provides independent power to each pedal, reducing noise and ground loops.
- Outputs 1-2 (6-18V)
- Adjustable voltage outputs for pedals requiring specific voltages other than 9V.
- Non-isolated DC Output (9V, 2000mA)
- High-current output for power-hungry digital pedals or daisy-chaining other power supplies.
Images and diagrams
- The front panel contains the AC input, power switch, and USB ports.
- The top panel contains the 12 DC outputs, with outputs 1-2 featuring voltage adjustment potentiometers.
Model compatibility
- Compatible only with center-negative DC effect pedals.
- Not suitable for pedals requiring AC power input.
