Quick Start Guide for Philips 226E9 Series Monitor
Quick start guide for the Philips 226E9 series monitor. Includes instructions for stand assembly, cable connections, OSD menu navigation, and tilt adjustment.
Quick answers from the manual
Quick answer
- This guide covers the assembly, connection, and basic operation of the Philips 226E9 series monitor, including OSD menu navigation and tilt adjustment. p. 1
Key actions
- Assemble the stand by snapping it into the monitor base. p. 1
- Connect the monitor to your PC using the appropriate VGA, DVI, or HDMI cable. p. 1
First start
- Connect the AC/DC adapter to the monitor and power source, then connect the video cable to your computer. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Tilt | -5° to 20° | Vertical tilt adjustment range | p. 1 |
Where to find it in the PDF
- Quick Start Guide p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential setup and operation instructions for the Philips 226E9 series monitors, including models 226E9QS, 226E9QHA, and 226E9QDS. It covers physical assembly, connectivity, and basic display adjustments.
Assembly
To assemble the monitor, attach the stand base to the monitor neck. Ensure the stand is securely snapped into place before placing the monitor on a stable surface.
Connections
The monitor supports various input connections depending on the specific model:
- VGA: Standard analog video input.
- DVI: Digital video input.
- HDMI: High-definition multimedia interface for video and audio.
Connect the appropriate cable from your computer to the corresponding port on the back of the monitor. Ensure the AC/DC power adapter is connected to the monitor and a power outlet.
Display Adjustments
The monitor stand allows for vertical tilt adjustment to improve viewing comfort. You can tilt the screen from -5° to +20°.
OSD Menu and Controls
The monitor features an On-Screen Display (OSD) menu for adjusting settings. Use the physical buttons or joystick (depending on the specific model) to navigate the menu:
- SmartImage: Access pre-set modes such as FPS, Racing, RTS, Gamer 1, Gamer 2, LowBlue Mode, Standard, Internet, and EasyRead.
- Input: Switch between available video sources (VGA, DVI, HDMI).
- Picture/Color/Audio: Adjust brightness, contrast, volume, and color settings.
Manufacturer information
Philips
Practical help
Common problems
No image on screen
Ensure the power cable is connected, the monitor is turned on, and the correct input source (VGA, DVI, or HDMI) is selected in the OSD menu.
Cannot adjust settings
Ensure the OSD menu is unlocked and you are using the correct navigation buttons/joystick as indicated in the diagram.
Before use
- Verify package contents: Monitor, Stand, AC/DC Adapter, and relevant cables (VGA/HDMI/DVI).
- Ensure you have a stable, flat surface for installation.
- Check your computer's available video output ports to ensure compatibility with the monitor's inputs.
- Register your product at www.philips.com/welcome for support.
Show more Show less
Images and diagrams

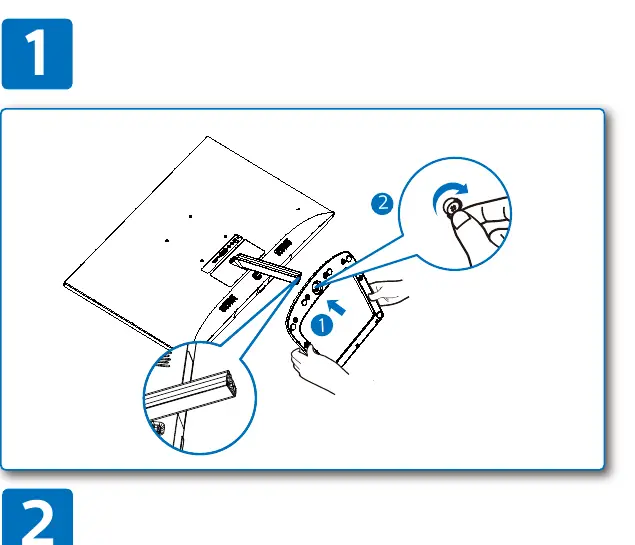

- Diagram 1: Stand assembly procedure.

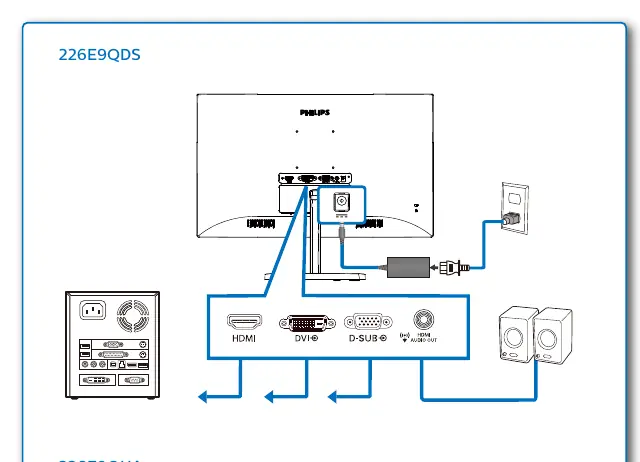

- Diagram 2: Rear port layout and cable connection guide.

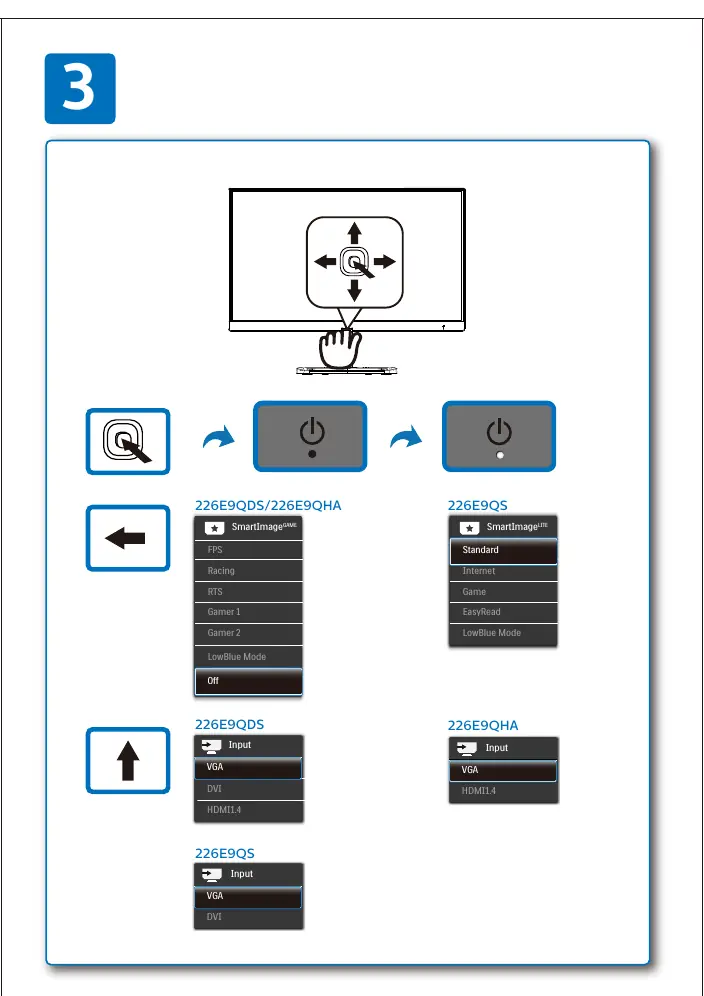

- Diagram 3: OSD menu navigation and SmartImage mode selection.
- Diagram 4: Tilt adjustment range.
Model compatibility
- Port configurations (VGA, DVI, HDMI) vary by specific model (226E9QS, 226E9QHA, 226E9QDS).
- Different cables may be included depending on the region.
