This document provides essential setup and operation instructions for the Philips 245E1 LCD monitor. It covers the physical assembly, cable connections, and basic navigation of the on-screen display (OSD) menu.
Package contents
Ensure your package includes the following items:
- Monitor and stand
- AC/DC power adapter
- VGA cable
- DP cable
- HDMI cable (Note: Included cables may vary by region)
Assembly

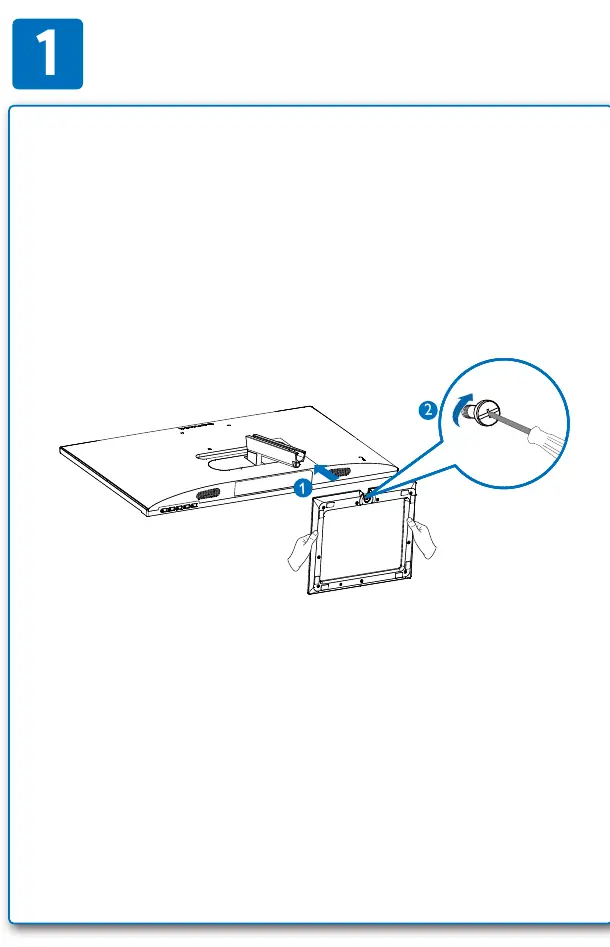

To assemble the monitor, attach the stand base to the monitor arm. Ensure the connection is secure before placing the monitor on a flat, stable surface.
Connections

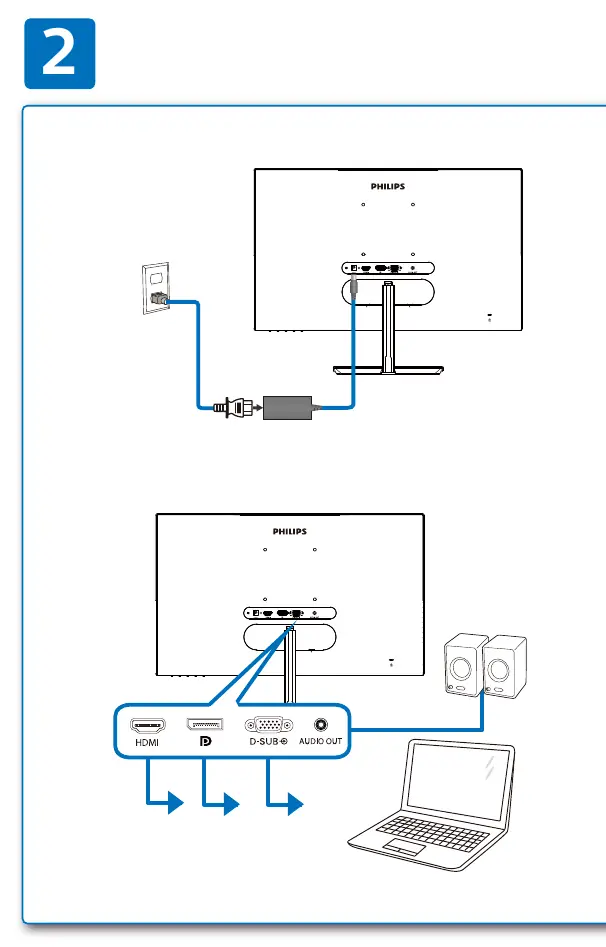

Connect the monitor to your computer using the appropriate cables:
- Power: Connect the AC/DC adapter to the monitor and a power outlet.
- Video: Connect the HDMI, DisplayPort (DP), or VGA cable from your computer to the corresponding port on the back of the monitor.
- Audio: Connect the audio cable if required.
Tilt adjustment
The monitor stand allows for tilt adjustment to improve viewing comfort. You can tilt the screen from -5° to +20°.
Controls and OSD menu

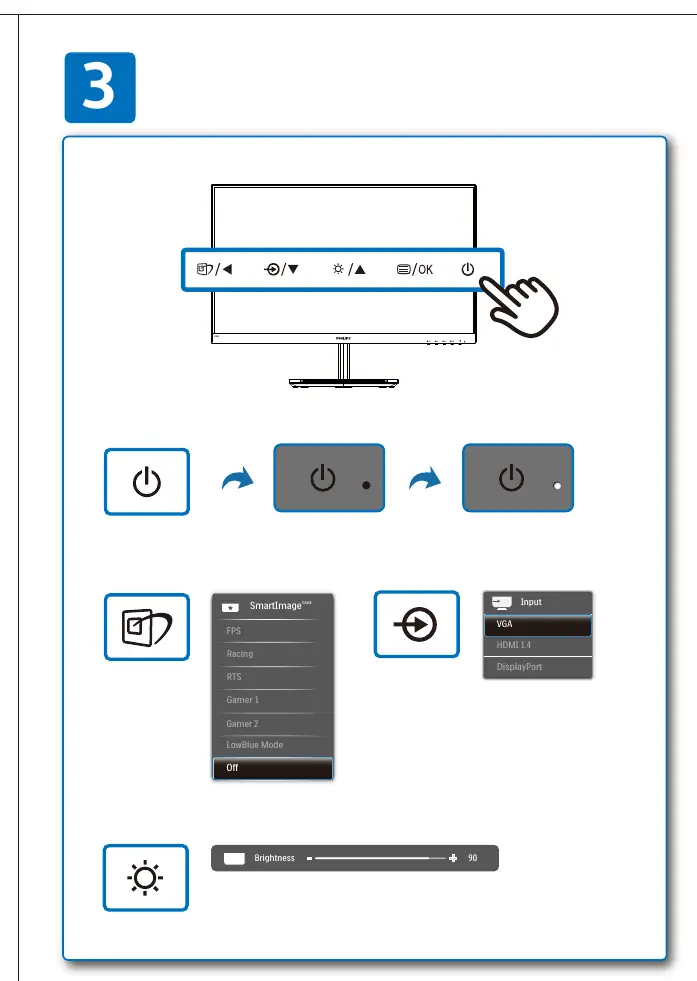

Use the control buttons located on the back or bottom of the monitor to navigate the OSD menu:
- Power button: Turns the monitor on or off.
- Menu/OK: Opens the OSD menu or selects an option.
- Input: Selects the video input source (HDMI, VGA, DisplayPort).
- SmartImage: Accesses preset image modes (FPS, Racing, RTS, Gamer 1, Gamer 2, LowBlue Mode).
- Brightness: Adjusts the screen brightness.
Manufacturer information
Philips
Practical help
Before use
- Verify all cables (HDMI, DP, VGA) are available for your setup
- Ensure the AC/DC power adapter is included
- Place the monitor on a flat, stable surface
- Check the regional variations for included cables
Images and diagrams
- The stand attaches to the back of the monitor panel
- The OSD menu allows adjustment of LowBlue Mode, Picture, Color, Language, Audio, and Input settings
