User Manual for Philips 245B1 Monitor
Comprehensive user guide for the Philips 245B1 monitor. Includes setup instructions, OSD menu navigation, image optimization settings, PowerSensor configuration, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The Philips 245B1 is a 23.8-inch monitor. Setup involves attaching the base, connecting the power and signal cables (HDMI/DP/DVI), and adjusting settings via the OSD menu. p. 5, 7, 8
Key actions
- Assemble the base p. 7
- Adjust OSD settings p. 9, 10
- Enable PowerSensor p. 16
First start
- Connect power and signal cables p. 8
- Power on the monitor p. 8
Show 4 more answers Show less
Problems and fixes
No picture
Check power cable, signal cable, and power button position.
p. 26
Image not centered
Use Auto function or adjust Phase/Clock in OSD.
p. 26Maintenance and reset
- Reset OSD settings p. 30
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Resolution | 2560 x 1440 @ 60 Hz | Native resolution | p. 19, 20 |
| Panel Type | IPS | Monitor panel technology | p. 19 |
| Connectivity | HDMI 1.4, DP 1.2, DVI | Input ports | p. 19 |
Where to find it in the PDF
- Installation p. 7, 8
- OSD Menu p. 9, 10
- Technical Specifications p. 19, 20
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Philips 245B1 is a 23.8-inch LCD monitor designed for high-performance office and home use. This guide covers the essential steps for assembly, connection, and configuration to ensure optimal display quality.
Installation
To assemble the monitor, place it face down on a smooth surface to avoid scratching the screen. Attach the base to the stand, tighten the screw at the bottom using your fingers and then a screwdriver, and attach the stand to the VESA mount area until it locks. Connect the power cord and the appropriate signal cable (HDMI, DisplayPort, or DVI) to your computer. Ensure the monitor is powered on after all connections are secure.
Operating the monitor
The monitor features an On-Screen Display (OSD) menu for adjusting settings. Use the control buttons on the front bezel to navigate the menu. The OSD allows you to adjust brightness, contrast, color temperature, and input source. You can also lock or unlock the OSD by holding the OK button while the monitor is off and then turning it on.
Image Optimization
The monitor includes several features to enhance image quality:
- SmartImage: Provides presets like EasyRead, Office, Photo, Movie, Game, and Economy to optimize display settings for different content.
- SmartContrast: Dynamically analyzes content to optimize contrast ratio and backlight intensity.
- LowBlue Mode: Reduces harmful shortwave blue light for eye comfort.
- Adaptive Sync: Eliminates screen tearing in gaming scenarios (compatible with specific AMD graphics cards).
PowerSensor
The PowerSensor detects user presence using infrared signals. When you are away from the seat, the monitor automatically reduces power consumption by up to 70%. You can adjust the detection sensitivity in the OSD menu.
Physical Adjustments

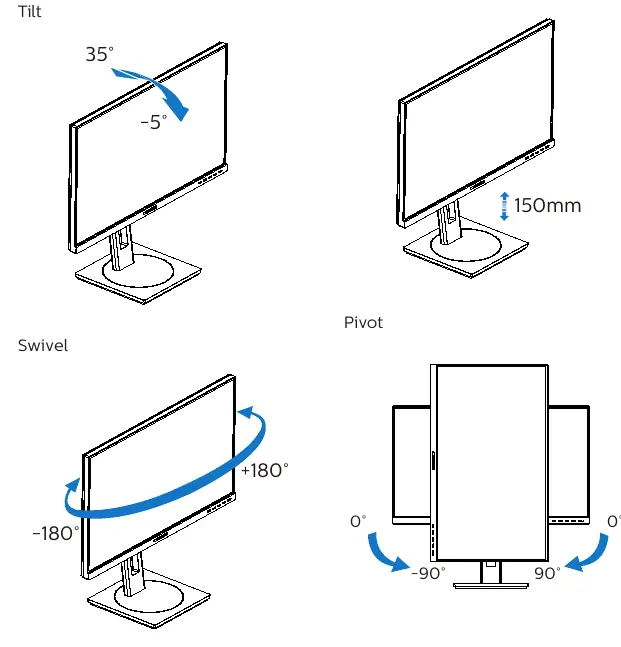

The monitor stand supports:
- Tilt: -5 to +35 degrees.
- Swivel: -180 to +180 degrees.
- Height adjustment: Up to 150 mm.
- Pivot: -90 to +90 degrees.
Maintenance and Safety
To prevent burn-in or ghost imaging, always use a moving screen saver or periodic screen refresh application when the monitor is unattended. Clean the screen with a soft, dry cloth; do not use organic solvents like alcohol or ammonia. Avoid excessive pressure on the LCD panel.
Manufacturer information
Philips
Practical help
Common problems
No picture (Power LED not lit)
Check if the power cord is plugged into the outlet and the back of the monitor. Ensure the power button is in the ON position.
No picture (Power LED is White)
Ensure the computer is on, the signal cable is properly connected, and there are no bent pins on the cable.
Image not centered
Use the Auto function in OSD Main Controls or adjust Phase/Clock settings (valid only in VGA mode).
Image vibrates
Ensure the signal cable is securely connected to the graphics board or PC.
Before use
- Place the monitor on a smooth surface during assembly.
- Use the provided power cord.
- Ensure the power outlet is easily accessible.
- Install monitor drivers if prompted by the operating system.
- Verify the monitor is set to its native resolution (2560 x 1440 @ 60 Hz).
Show more Show less
Specs in practice
- Native Resolution
- 2560 x 1440 @ 60 Hz for the best display quality.
- Connectivity
- Includes HDMI 1.4, DisplayPort 1.2, DVI, and a USB hub (1 upstream, 4 downstream).
- Height Adjustment
- Allows for 150 mm of vertical movement.
Images and diagrams
- The base assembly requires attaching the base to the stand and securing it with the provided screw.
- The OSD menu is navigated using buttons on the front bezel.
- The monitor supports VESA mounting (100 x 100 mm) after removing the base assembly.
Model compatibility
- Adaptive Sync is compatible with specific AMD Radeon graphics cards.
- The monitor is compatible with Windows 10/8.1/8/7 and Mac OS X.
- The Auto function is only applicable in VGA-Analog mode.
