Specifications and Features Guide for Philips 22HFL2819P Professional LED TV
Comprehensive specifications and feature overview for the Philips 22HFL2819P Professional LED TV, including hospitality settings, connectivity options, and technical dimensions.
Table of contents
Manual images
Click an image to enlargeOverview

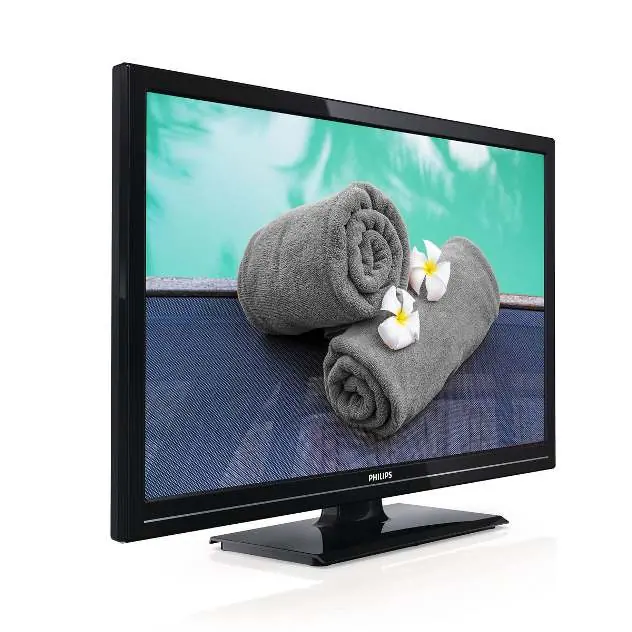

The Philips 22HFL2819P is a 22-inch Professional LED TV designed specifically for hospitality environments. It features energy-efficient LED technology, USB cloning for rapid installation, and specialized hospitality modes to manage guest access and settings.
Hospitality Features
This model includes several advanced features tailored for hotels, prisons, and detention centers:
- PrisonMode: A high-security setting that disables specific functions such as Teletext, Electronic Programme Guide (EPG), Subtitles, and USB ports to restrict unauthorized access.
- USB Cloning: Allows administrators to copy all programming and channel settings from one TV to others, significantly reducing installation time.
- Welcome Page: A customizable welcome page can be displayed upon startup, which can be branded using a simple .png image.
- Control Locking: Includes options for joystick control locking, installation menu locking, and advanced volume control to prevent guest disturbance and unauthorized configuration changes.
- Translucent Backcover: Designed to uncover hidden materials, making it suitable for high-security environments like prisons.
Multimedia and Connectivity
The TV supports various multimedia playback options via the side-mounted USB port:
- Supported Formats: Video (AVI, MKV, H.264/MPEG4 AVC, MPEG1, MPEG2, MPEG4), Subtitles (SRT, SSA SUB), Music (MP3, AAC), and Pictures (BMP, JPG, PNG).
- Connectivity: Includes HDMI 1.3, VGA input, Scart, AV input, and a Common Interface (CI+ 1.3) slot.
- Audio: Features 5W (2x2.5W) down-firing speakers with equalizer, balance, and AVL (Automatic Volume Leveling).
Technical Specifications
Key technical parameters for the 22HFL2819P:
- Display: 22-inch (55 cm) LED Full HD, 1920x1080p resolution, 16:9 aspect ratio, 250 cd/m brightness, 1000:1 contrast ratio.
- Power: AC 220-240V, 50-60Hz. Energy Label Class A+. Standby power consumption is less than 0.3 W.
- Dimensions (without stand): 516 x 317 x 35/43 mm.
- Dimensions (with stand): 516 x 352 x 134 mm.
- Weight: 2.8 kg (without stand), 3.0 kg (with stand).
- Wall Mount: Compatible with 75 x 75 mm, M4 screws.
Manufacturer information
Philips
Practical help
Common problems
Unauthorized access to settings
Enable 'Installation Menu Locking' and 'Joystick Control Locking' in the hospitality menu to prevent guests from changing configurations.
Need to configure multiple TVs identically
Use the 'USB Cloning' feature to copy all programming and channel settings from one master TV to other units.
Guest disturbance from high volume
Use the 'Advanced Volume Control' to set a start-up volume and predefine the maximum volume range.
Before use
- Verify the power supply is AC 220-240V, 50-60Hz.
- Ensure the wall mount used is compatible with the 75 x 75 mm VESA standard (M4 screws).
- If using USB cloning, ensure the USB drive is formatted correctly and contains the necessary settings file.
- Check that the environment is within the operating temperature range of 5°C to 45°C.
Show more Show less
Specs in practice
- Panel Resolution
- 1920x1080p (Full HD) provides high-definition image quality.
- Energy Label Class A+
- Indicates high energy efficiency, helping to reduce operating costs.
Images and diagrams
- The dimensions diagram on page 3 illustrates the width, height, and depth of the TV both with and without the stand, as well as the VESA wall mount hole pattern.
- The USB cloning diagram on page 2 shows the process of transferring settings from one TV to multiple units via a USB drive.
Model compatibility
- Wall mount compatibility: 75 x 75 mm, M4 screws.
- Multimedia playback supports video resolutions up to 1920x1080p@30Hz via USB.
