User Manual for Philips Hue Amarant Outdoor Linear Light
Quick guide for the Philips Hue Amarant outdoor linear light. Includes installation steps, safety warnings, power requirements, and setup instructions for the Hue system.
Quick answers from the manual
Quick answer
- The Philips Hue Amarant is an outdoor linear light that requires a 24V SELV LED Power Supply. It must be installed in a GFCI-protected outlet and kept at least 10 feet away from water sources like pools or spas. p. 3, 13
Key actions
- Install the fixture and connect to the 24V power supply. p. 8, 9, 10
- Pair the light with the Hue app. p. 16
First start
- Ensure the power supply is connected to a GFCI outlet, then use the Hue app to add the light to your system. p. 6, 10, 16
Problems and fixes
Light not working
Check power supply connection and GFCI outlet status.
p. 3, 6Maintenance and reset
- Clean the luminaire 2-4 times per year with a soft cloth and neutral detergent. p. 24
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 24V DC | Requires 24V SELV LED Power Supply | p. 13, 25 |
| Wireless | ZigBee / Bluetooth | Smart connectivity protocols | p. 24, 25 |
Where to find it in the PDF
- Safety Instructions p. 3, 4, 24, 25
- Installation Guide p. 6, 7, 8, 9
Table of contents
Manual images

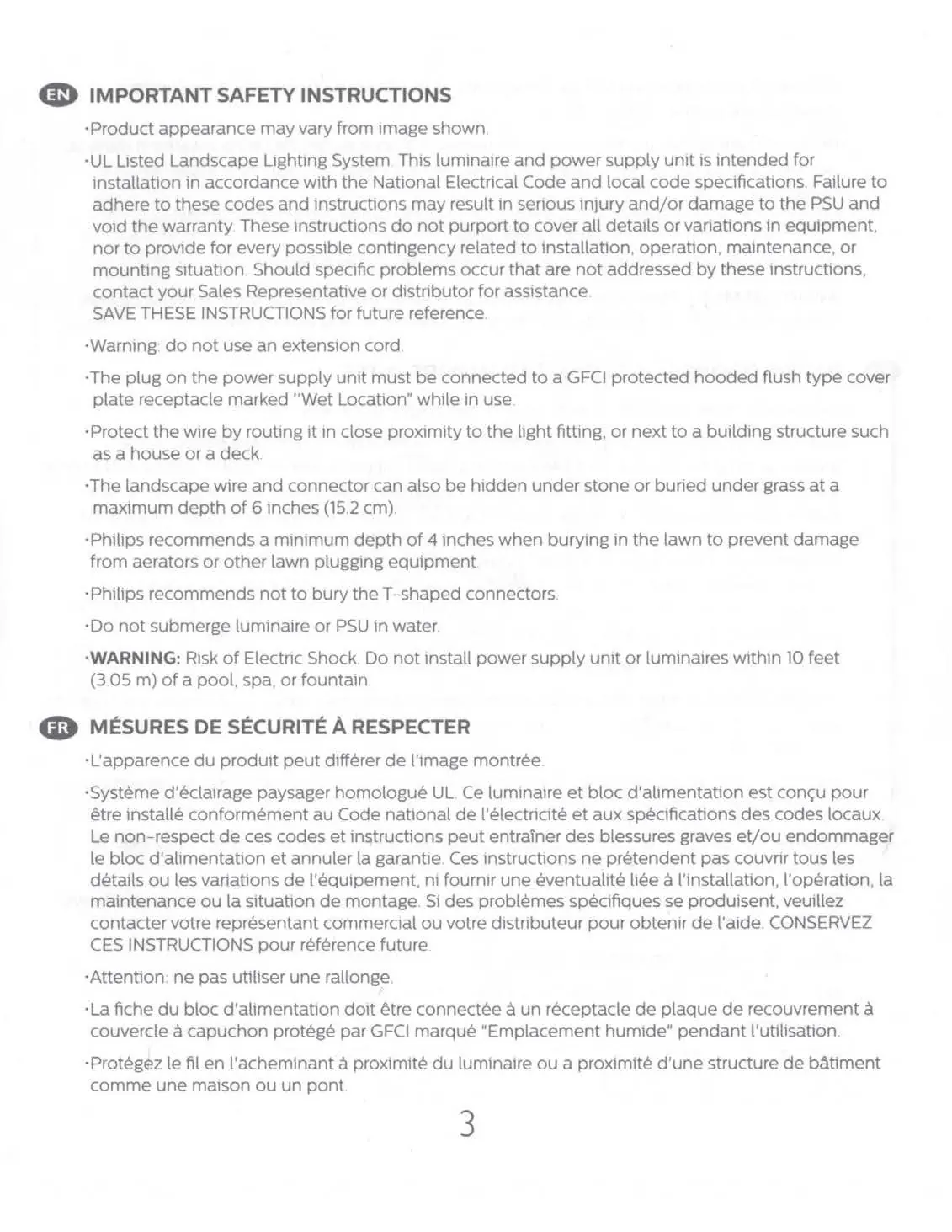

Click an image to enlargeImportant Safety Information
Before installing or using the Philips Hue Amarant, please read these safety instructions carefully. This product is a landscape lighting system intended for outdoor use. Failure to follow these instructions may void the warranty and result in serious injury or damage.
- Power Supply: Use only with a Philips Hue 24V SELV LED Power Supply. Do not use an extension cord.
- Electrical Safety: The power supply must be connected to a GFCI-protected hooded flush-type cover plate receptacle marked for wet locations.
- Placement Restrictions: Do not install the power supply unit or luminaires within 10 feet (3.05 m) of a pool, spa, or fountain. Do not submerge the luminaire or power supply in water.
- Burial Guidelines: The landscape wire and connector can be hidden under stone or buried under grass at a maximum depth of 6 inches (15.2 cm). Philips recommends a minimum depth of 4 inches when burying in a lawn to prevent damage from aerators. Do not bury the T-shaped connectors.
Installation and Setup
Follow these steps to install and configure your lighting system:

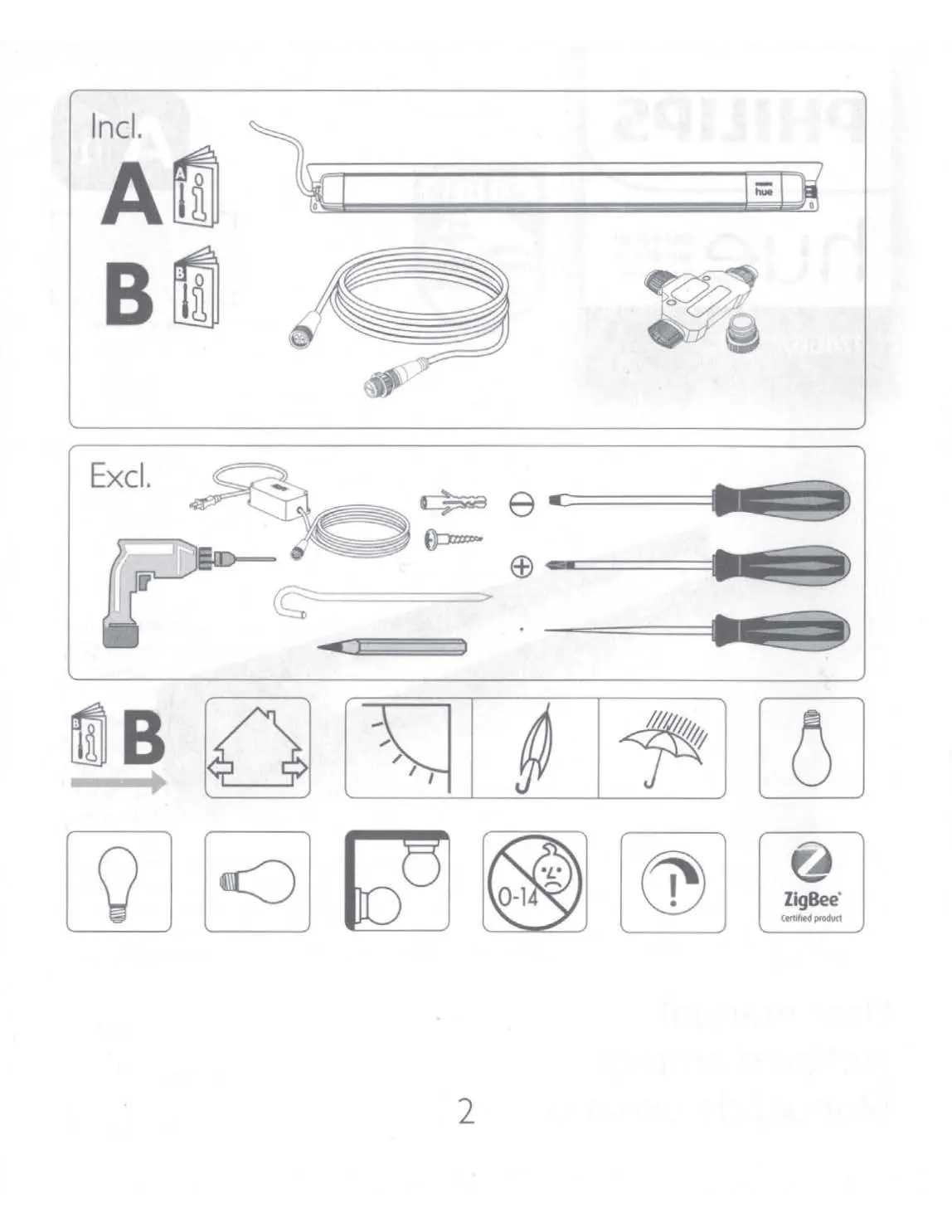

- Preparation: Ensure you have the necessary tools (screwdriver, pencil, drill). Turn off electrical power at the main fuse or circuit breaker box before starting.

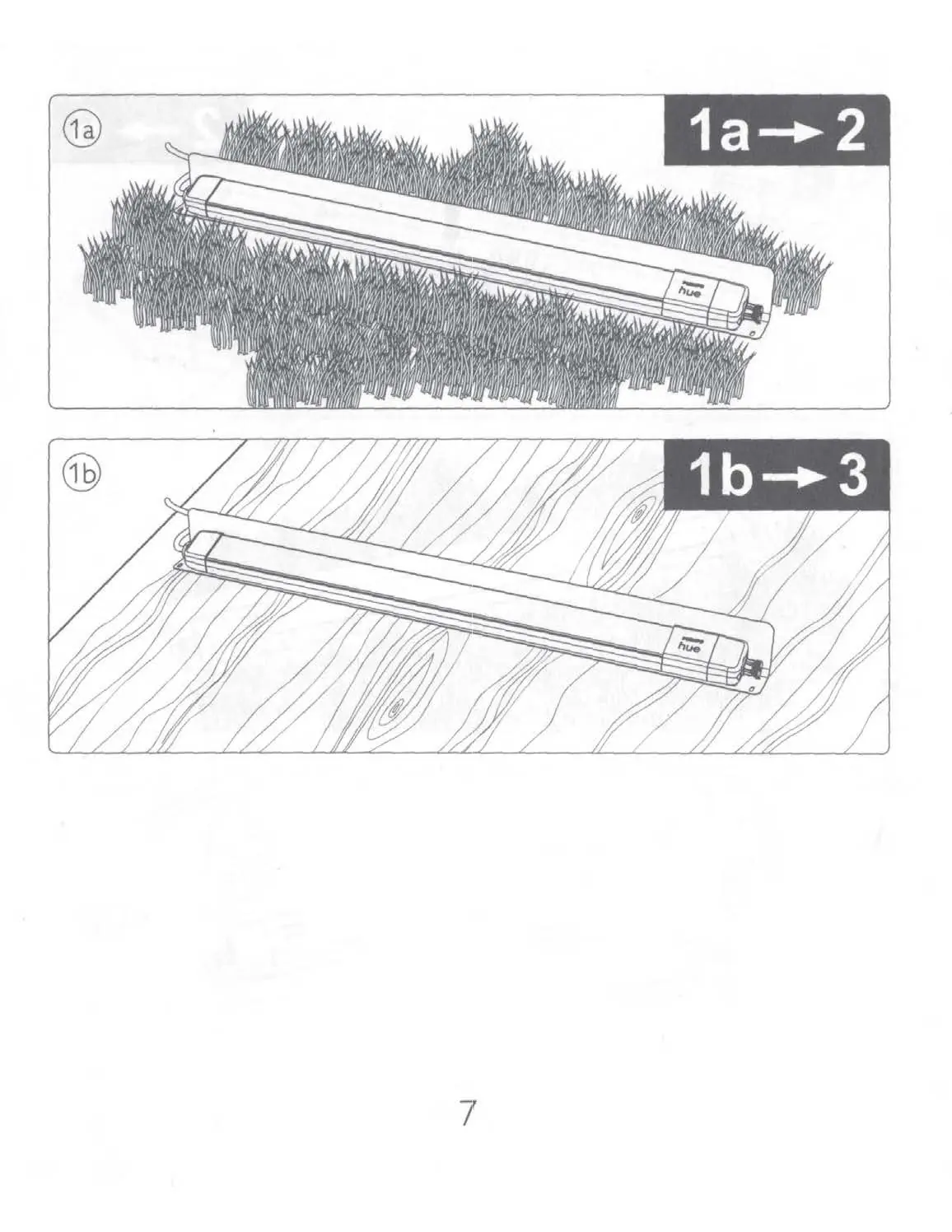

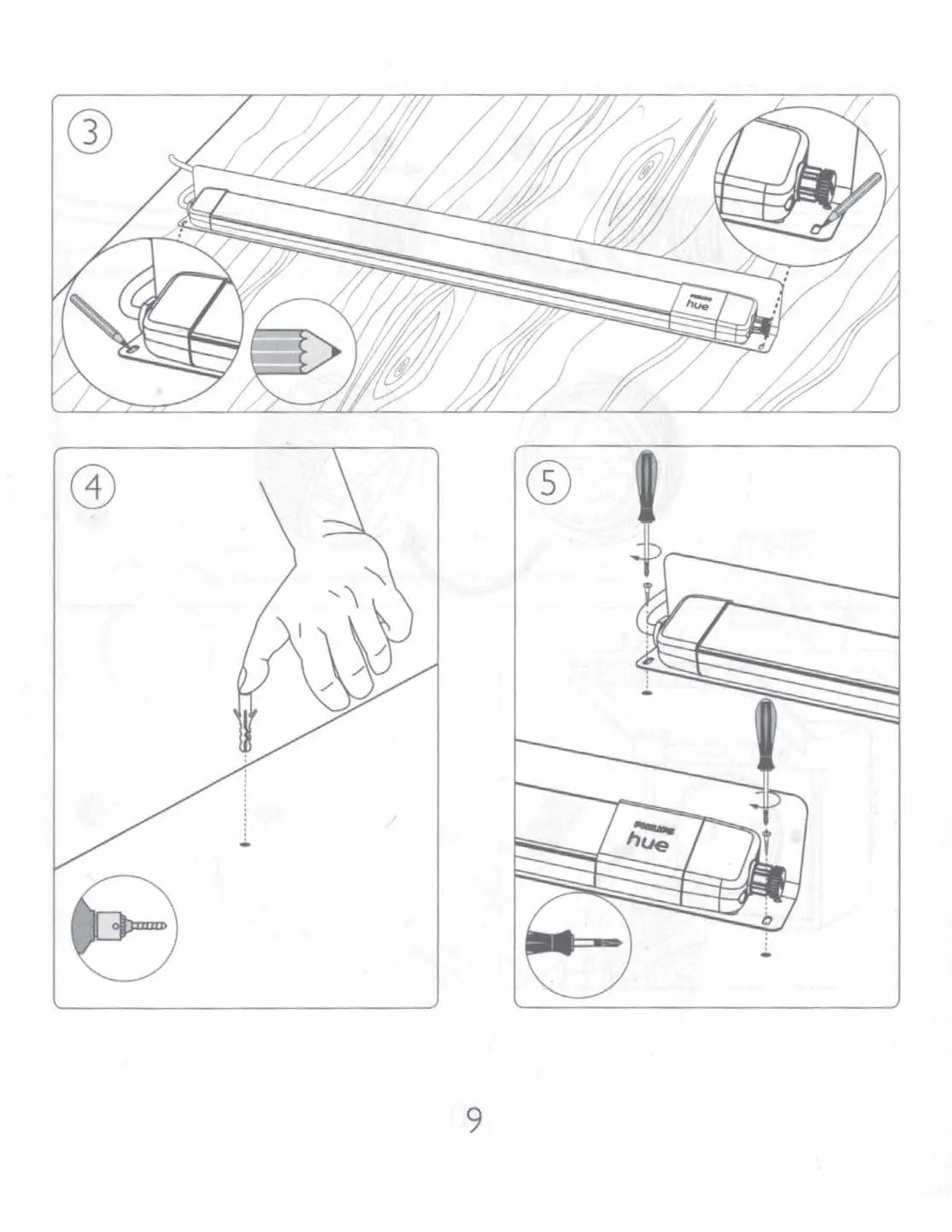

- Mounting: The luminaire can be mounted on the ground or wall. Ensure the surface is suitable for the fixture.

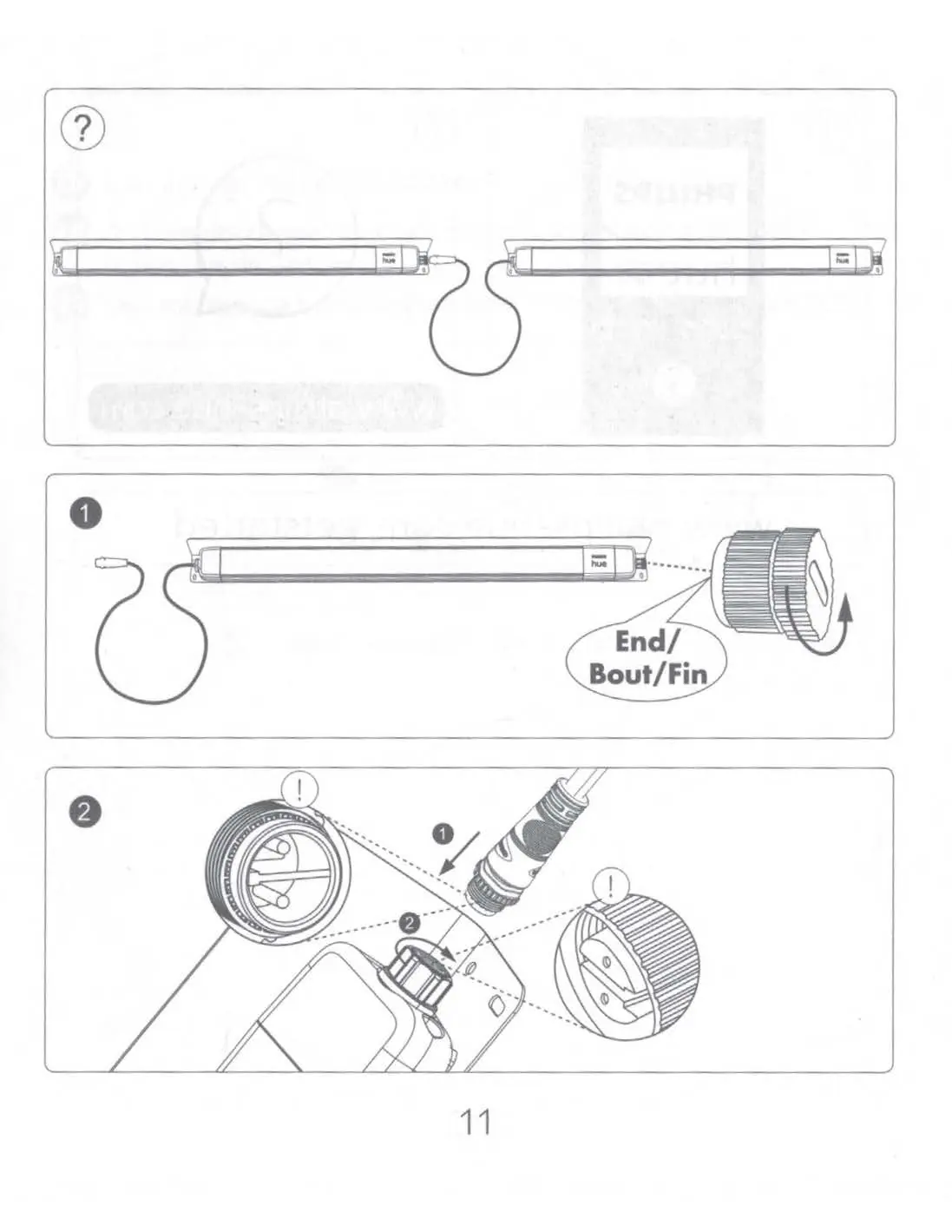

- Wiring: Connect the fixtures using the provided connectors. Ensure all connections are secure and protected.
- Power Connection: Connect the system to the 24V power supply and plug it into the GFCI-protected outlet.
- Smart Setup: To control the lights, ensure you have the Hue app installed. Switch on the fixture, open the Hue app, go to settings, select Light setup, and tap the (+) icon to add your new fixture.
Maintenance and Care
To maintain the longevity and appearance of your Philips Hue Amarant:
- Clean the luminaire at least 2 times per year using a soft cloth and a neutral detergent.
- In coastal or industrial areas, increase cleaning frequency to 4 times per year to avoid corrosion.
- Do not use abrasives or solvents. Avoid getting liquid on electrical parts.
- If the luminaire is equipped with a fuse and stops working after a bulb change, the internal fuse may need replacement by a competent electrician.
Technical Specifications
The Philips Hue Amarant is a smart outdoor lighting solution with the following features:
- Connectivity: ZigBee certified and Bluetooth enabled.
- Power: 24V DC system.
- Compatibility: Can be connected with other Philips Hue ZigBee certified products.
- Operating Environment: Suitable for outdoor use in damp or wet locations.
Manufacturer information
Philips
Practical help
Common problems
Light does not turn on
Check if the power supply is connected to a live, GFCI-protected outlet. Ensure the 24V connection is secure.
Cannot pair with Hue Bridge
Ensure the light is powered on and within range of the Hue system. Use the Hue app to search for new lights.
Before use
- Verify you have a 24V SELV LED Power Supply
- Ensure the installation site is at least 10 feet away from pools or spas
- Confirm the outlet is GFCI-protected
- Download the Philips Hue app
- Check that you have the necessary tools for mounting
Images and diagrams
- The manual includes diagrams showing the correct burial depth for wires (4-6 inches).
- Wiring diagrams illustrate how to connect multiple fixtures using T-connectors.
- The power supply connection diagram highlights the requirement for a GFCI-protected outlet.
Model compatibility
- Requires Philips Hue Bridge for full smart home integration.
- Compatible with other Philips Hue ZigBee certified products.
- Bluetooth enabled for direct control without a bridge.
