User Manual for Philips Hue 2.5m Outdoor Cable Extension 17489
Quick guide for the Philips Hue 2.5m Outdoor Cable Extension (17489). Includes installation safety, usage requirements, and warranty information.
Quick answers from the manual
Quick answer
- This cable is an extension for Philips Hue outdoor lighting systems. It must be used exclusively with a Philips Hue 24V SELV LED Power Supply. p. 2
Key actions
- Turn off power before installing or servicing. p. 3
First start
- Connect the extension cable to your existing Philips Hue 24V SELV LED Power Supply system. p. 2
Show 3 more answers Show less
Problems and fixes
Damaged cable
Do not use the cable if it is damaged.
p. 3Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Power | 100W | Maximum wattage for connected lamps | p. 3 |
Where to find it in the PDF

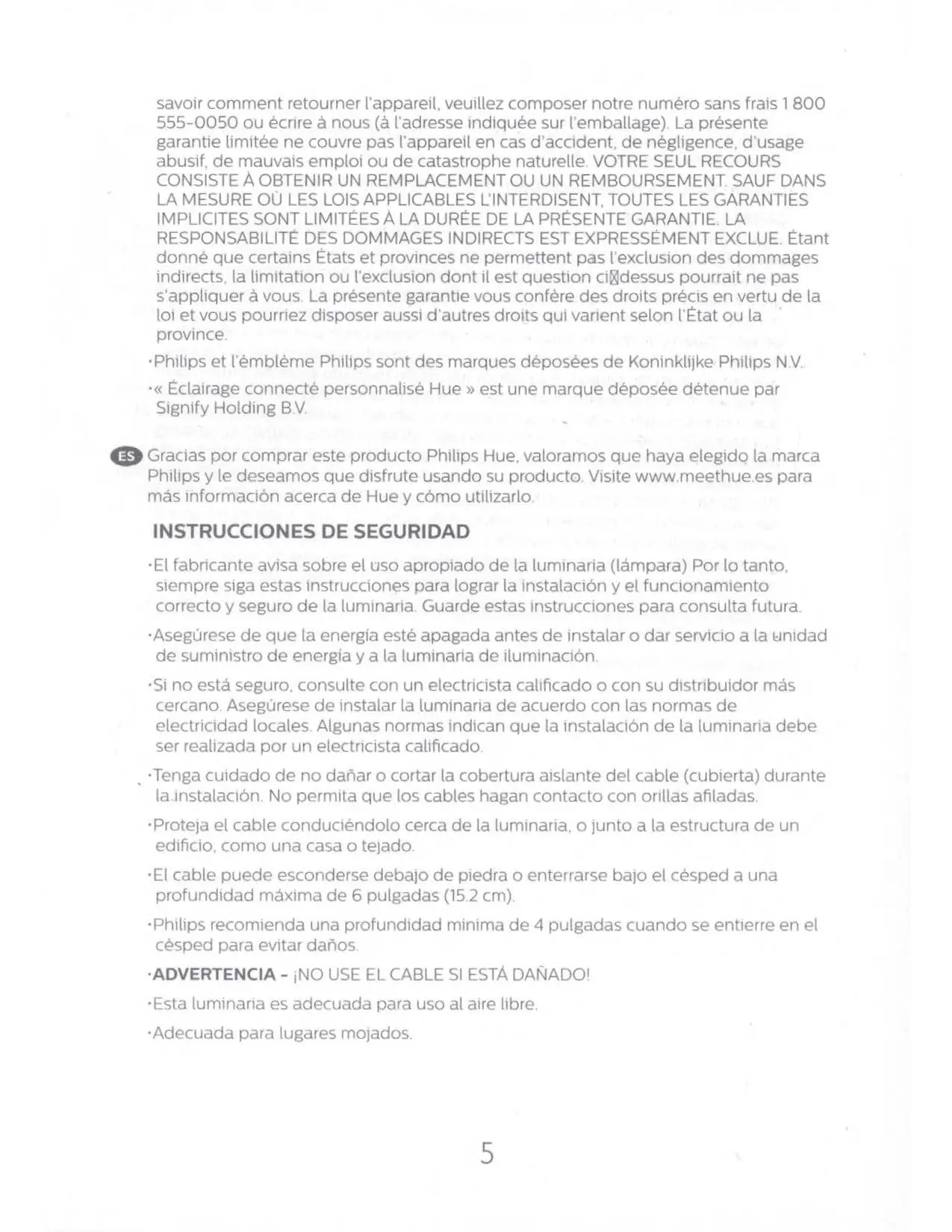

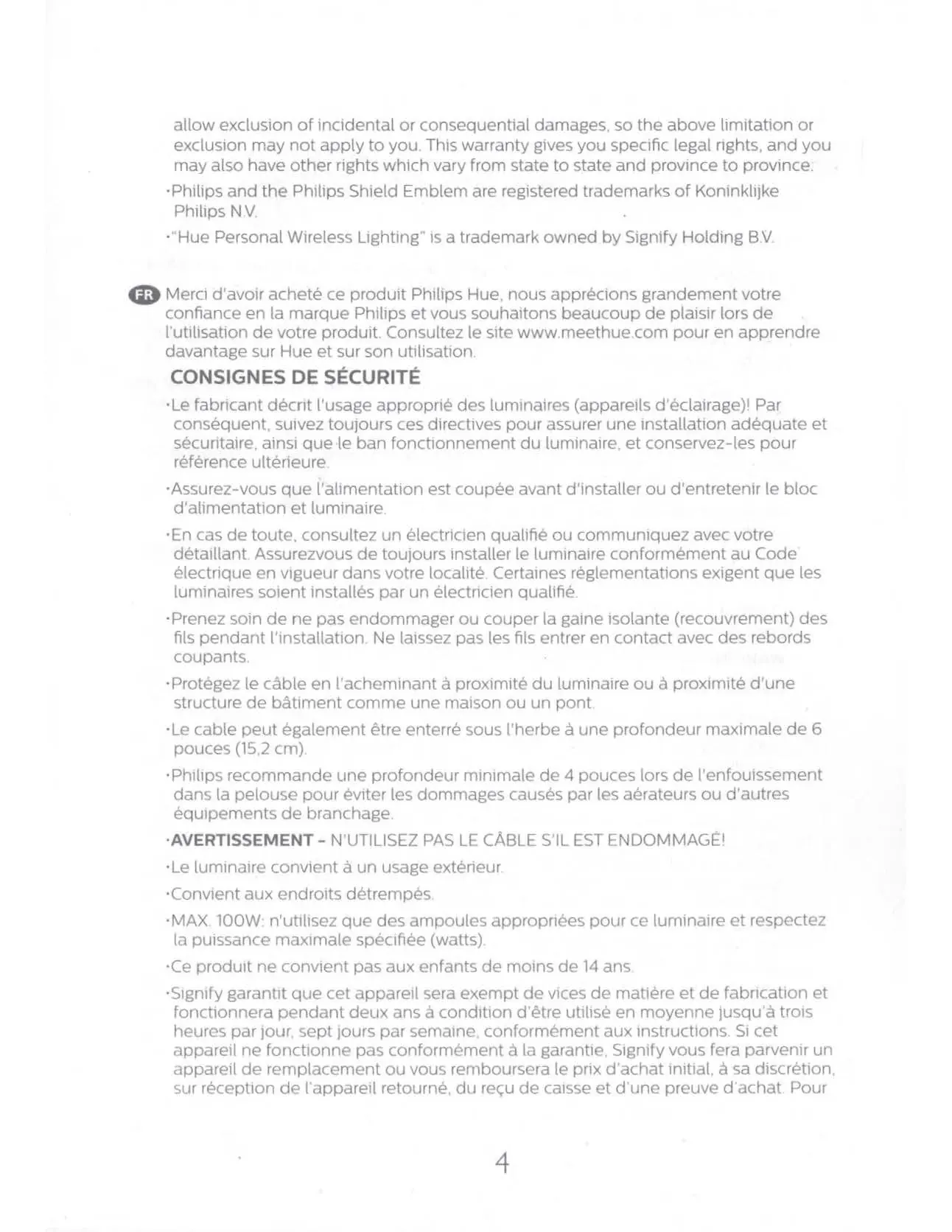

- Safety Instructions p. 3, 4, 5
- Connection Diagram p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential safety and installation instructions for the Philips Hue 2.5m Outdoor Cable Extension (Model 17489). This product is designed exclusively for use with Philips Hue 24V SELV LED Power Supply systems.
Safety Instructions
To ensure safe installation and operation, please adhere to the following guidelines:
- Power Off: Always turn off the power supply before installing or servicing the luminaire or cable.
- Damage Prevention: Do not use the cable if it is damaged. Be careful not to damage or cut the wire insulation during installation.
- Sharp Edges: Do not permit wires to contact any sharp edges.
- Age Restriction: This product is not suitable for children under 14 years.
- Professional Help: If in doubt, consult a qualified electrician or contact your retail outlet. Ensure installation complies with local electrical codes.
Installation Guidelines
The cable is suitable for outdoor usage and wet locations. Follow these steps for proper routing:
- Routing: Protect the cable by routing it in close proximity to the light fitting or next to a building structure (e.g., house or deck).
- Burial: The cable can be hidden under stone or buried under grass. The maximum depth is 6 inches (15.2 cm). Philips recommends a minimum depth of 4 inches (10 cm) when burying in the lawn to prevent damage from aerators or other lawn plugging equipment.
Usage Requirements
- Compatibility: Use only with Philips Hue 24V SELV LED Power Supply.
- Wattage: Maximum 100W. Only use lamps suitable for this luminaire and keep within the maximum specified wattage.

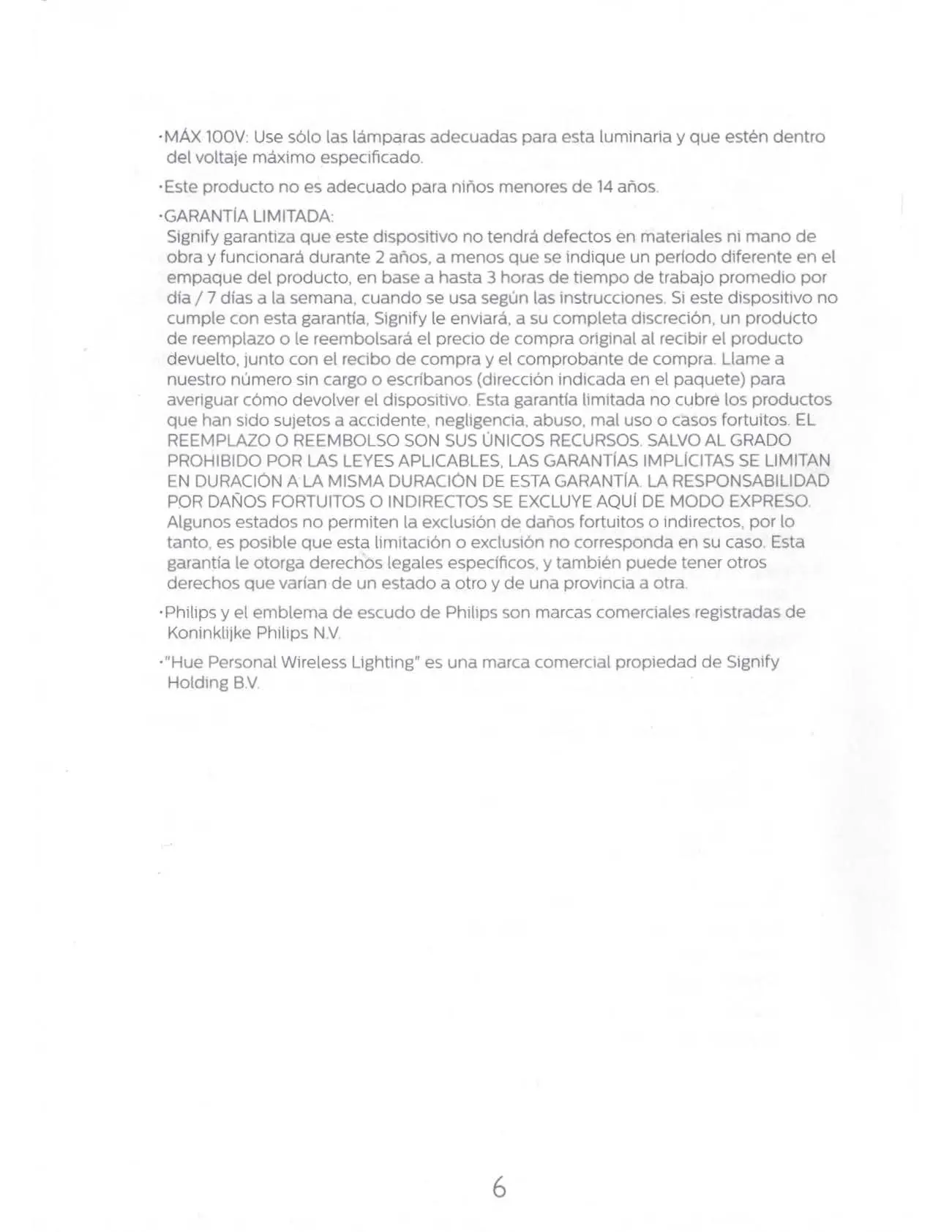

Warranty Information
Signify warrants that this device will be free from defects in material and workmanship and will operate for 2 years, based on up to 3 hours average working time per day/7 days per week, when used as directed. This limited warranty does not cover devices subject to accident, neglect, abuse, misuse, or acts of God. For returns, please call the toll-free number 1-800-555-0050 or write to the address indicated on the packaging.
Manufacturer information
Philips
Practical help
Common problems
Cable damaged
Do not use the cable if it is damaged.
Power supply compatibility
Use only with Philips Hue 24V SELV LED Power Supply.
Before use
- Ensure power is turned OFF before installation.
- Verify compatibility with Philips Hue 24V SELV LED Power Supply.
- Check cable for any damage to insulation.
- Ensure installation area is suitable for outdoor use.
Show more Show less
Images and diagrams

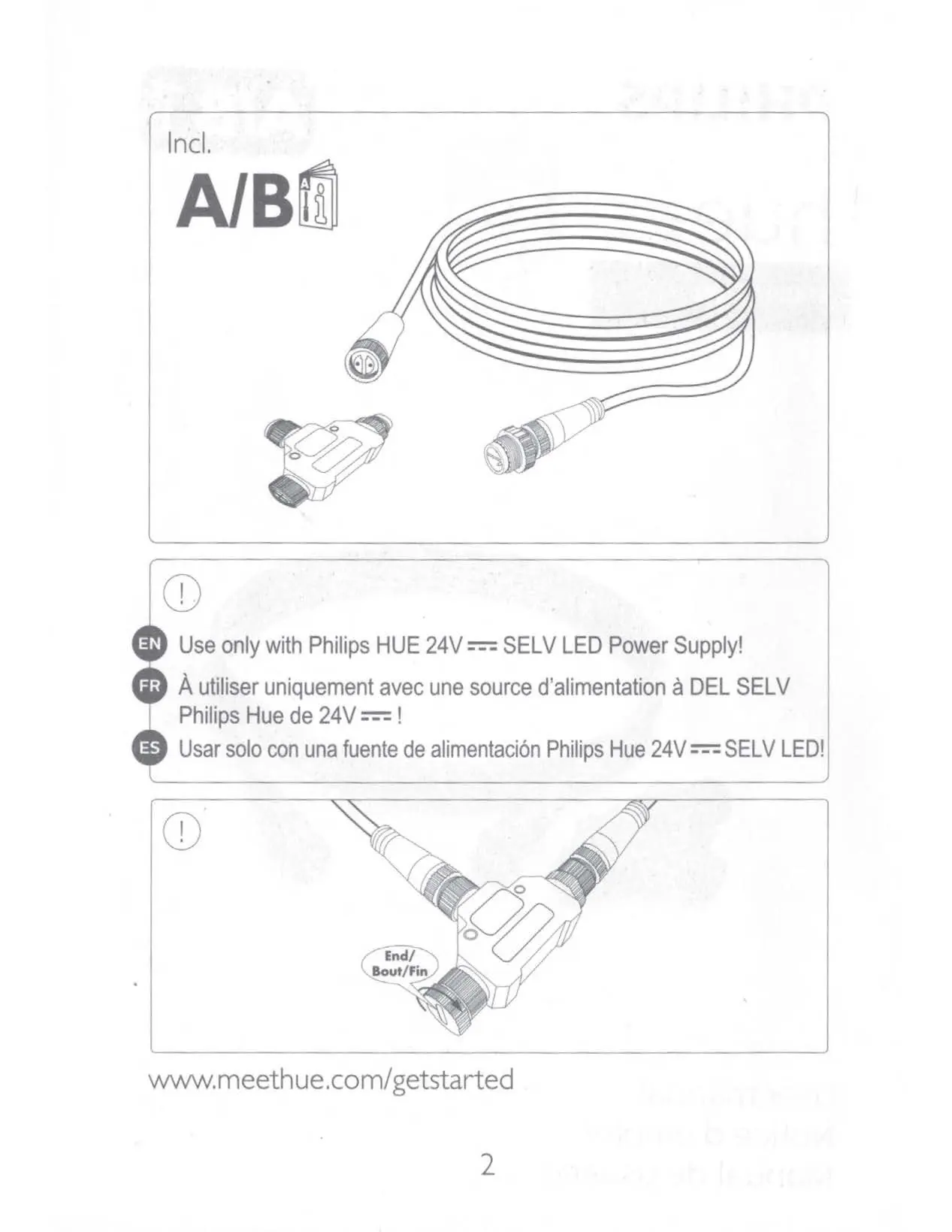

- The diagram shows the connection of the extension cable to the power supply unit.
- The 'End' label indicates the termination point of the cable system.
Model compatibility
- Suitable for outdoor usage.
- Suitable for wet locations.
- Not suitable for children under 14 years.
