User Manual for Philips 220V4L LCD Monitor
Quick guide for the Philips 220V4L LCD monitor. Learn how to assemble the stand, connect to your PC, adjust OSD settings, and troubleshoot common display issues.
Quick answers from the manual
Quick answer
- The Philips 220V4L is an LCD monitor. Setup involves attaching the stand, connecting the power and signal cables (VGA/DVI), and adjusting settings via the OSD menu or SmartControl Lite software. p. 6, 7, 8
Key actions
- Assemble the stand p. 6
- Connect to PC p. 7
First start
- Connect power and signal cables, then turn on the PC and monitor. p. 7
Show 4 more answers Show less
Problems and fixes
No image
Check power and signal cable connections.
p. 33Maintenance and reset
- Use the OSD menu 'Reset' option to restore factory settings. p. 8
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Resolution | 1680 x 1050 @ 60Hz | Native resolution | p. 18 |
Where to find it in the PDF
- Installation p. 6, 7
- OSD Menu p. 8
- Troubleshooting p. 33
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides essential information for setting up and using your Philips 220V4L LCD monitor. It covers physical assembly, PC connection, OSD menu navigation, and troubleshooting.
Assembly and installation
To assemble the monitor stand:
- Place the monitor face down on a soft, flat surface to avoid scratches.
- Attach the base column to the monitor until it clicks into place.
- Hold the base with both hands and firmly insert it into the base column.
To connect to your PC:
- Connect the power cable securely to the monitor.
- Connect the signal cable (VGA or DVI) to the video connector on your computer.
- Turn on your computer and the monitor.
OSD menu and controls
The monitor features an On-Screen Display (OSD) menu for adjusting settings:
- Menu/OK: Access the OSD menu or confirm adjustments.
- Back: Return to the previous OSD level.
- Brightness: Adjust the brightness level.
- Input: Select the input source (VGA/DVI).
- Auto: Automatically adjust the monitor settings.
SmartControl Lite software

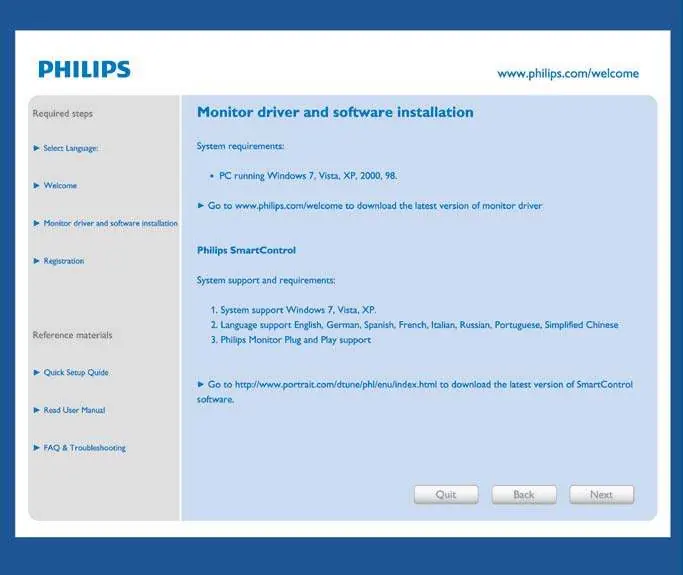

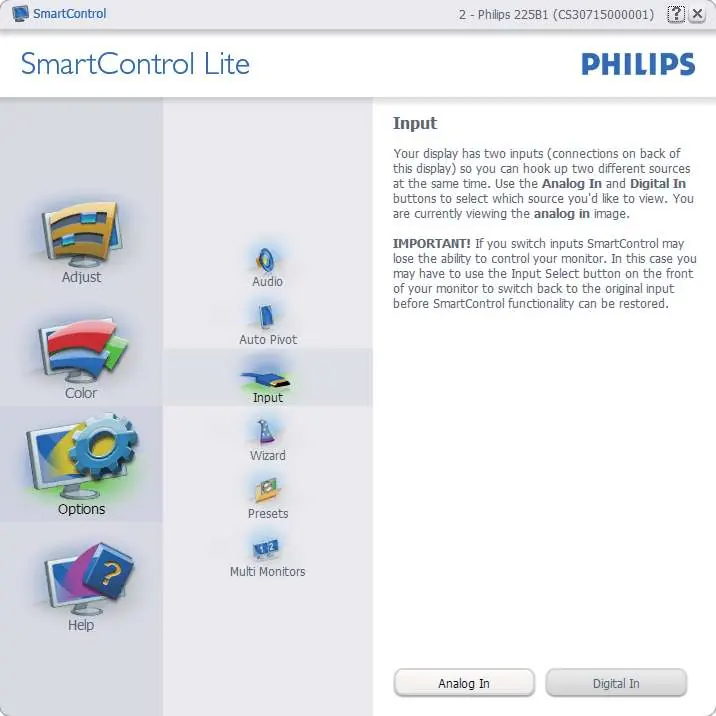

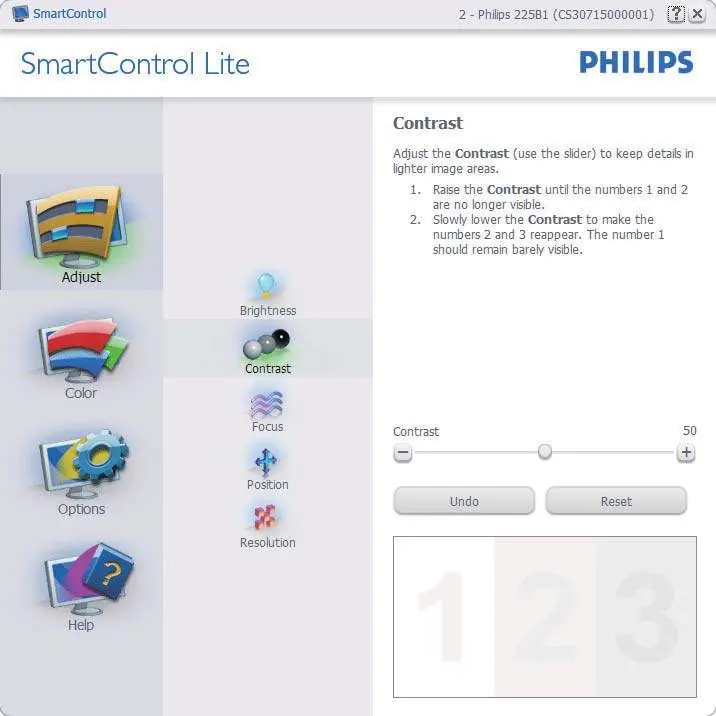

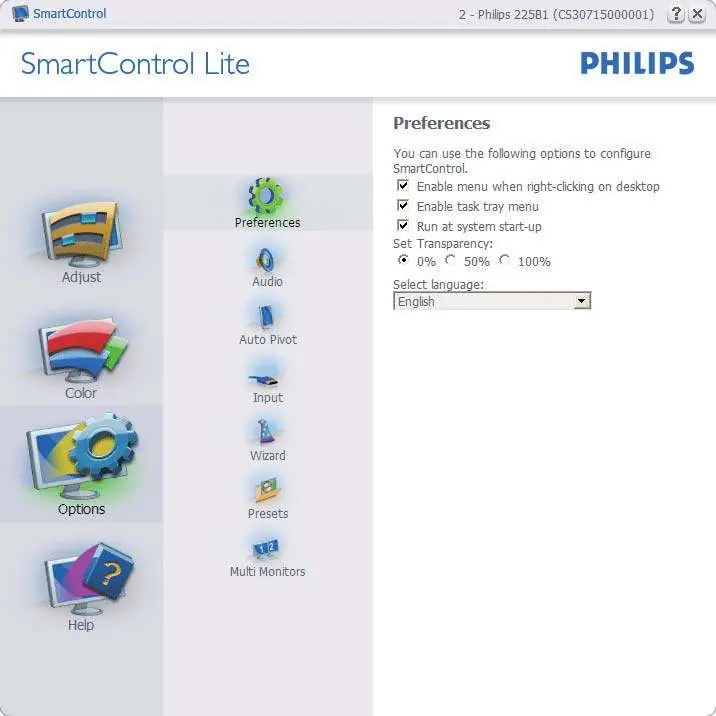

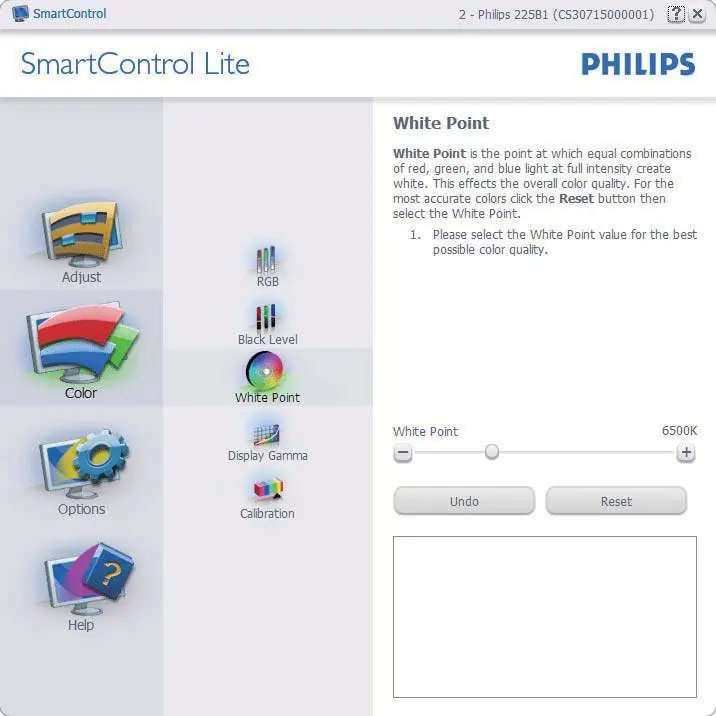

Philips SmartControl Lite allows you to adjust monitor settings via an on-screen graphical interface. It includes features for calibration, color adjustment, and input selection. You can launch the wizard to calibrate your display for the most accurate color.
Troubleshooting
If you encounter issues:
- No image (LED off): Ensure the power cable is connected to the outlet and the monitor.
- No image (LED white): Check if the computer is on and the signal cable is properly connected.
- Image not centered: Use the 'Auto' button or adjust via the OSD menu.
- Flicker: Use the 'Auto' function or adjust Phase/Clock settings in the OSD menu.
Technical specifications
The monitor features a 22-inch (55.9 cm) LED-backlit TFT panel with a native resolution of 1680 x 1050 at 60Hz. It supports DVI and VGA inputs and is compatible with Windows 7, Vista, XP, and Mac OS X.
Safety and maintenance
To maintain your monitor:
- Avoid excessive pressure on the LCD panel.
- Unplug the monitor if not in use for an extended period.
- Clean with a soft, dry cloth; do not use alcohol or ammonia-based cleaners.
- Keep the monitor away from direct sunlight, rain, or excessive moisture.
Manufacturer information
Philips
Practical help
Common problems
No image on screen (LED off)
Ensure the power cable is connected to the outlet and the monitor.
No image on screen (LED white)
Check if the computer is on and the signal cable is properly connected.
Image is not centered
Use the 'Auto' button on the monitor or adjust via OSD menu.
Vertical/Horizontal flicker
Use the 'Auto' function in the OSD menu or adjust Phase/Clock settings.
Before use
- Ensure the monitor is placed on a stable surface.
- Check that the power cable is securely connected.
- Verify the signal cable (VGA/DVI) is connected to the PC.
- Ensure the environment temperature is between 0-40°C.
Show more Show less
Specs in practice
- Power Consumption
- Approx. 23.3W (typical) for 220V4LA model.
Images and diagrams
- The stand assembly involves attaching the base column to the monitor and then the base stand to the column.
- The OSD menu allows adjustment of brightness, contrast, color, and input source.
Model compatibility
- Compatible with Windows 7, Vista, XP, 2000, 98.
- Supports DVI and VGA inputs.
