User Manual for Pittsburgh 12V Light-Duty Portable Inflator
Quick guide for the Pittsburgh 12V Light-Duty Portable Inflator. Learn how to operate, maintain, and safely use your inflator with this essential manual summary.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This inflator is designed for general inflation tasks. Please note the following critical limitations:
- Not for automotive tires: Do not use this device to inflate car tires.
- Duty Cycle: Do not allow the inflator to run for more than 10 minutes continuously. After 10 minutes, allow it to cool for 30 minutes to prevent overheating and burnout.
- Power Source: Operates on 12V DC power via a vehicle cigarette lighter receptacle.
Operating Instructions
Follow these steps to use the inflator safely:
- Remove the Cigarette Plug from the recessed holder on the unit.
- Ensure the Thumbwheel Switch is in the Off position.
- Situate the inflator outside of the car.
- Plug the Cigarette Plug into the 12 Volt receptacle in the car.
- Turn on the inflator by sliding the Thumbwheel Switch to the On position.
- To attach the Air Outlet to an item, lift the Valve Lock, attach the hose, and press down the Valve Lock to seal.
- When finished, turn the switch to Off, lift the Valve Lock to detach, and store the cord in the recessed holder.
Maintenance and Servicing
Regular maintenance ensures safe operation:
- Before each use: Inspect for loose hardware, misalignment, binding of parts, cracked or broken components, and damaged electrical wiring.
- After use: Wipe external surfaces with a clean cloth.
- Cleaning: Ensure the Cigarette Plug and universal outlet adapter are free of dirt, grease, or debris.
- Repairs: Do not use damaged equipment. Repairs should only be performed by a qualified technician using identical replacement parts.
Practical help
Common problems
Unit overheats
Do not run for more than 10 minutes continuously. Allow 30 minutes to cool before resuming.
Unit will not start
Check the cigarette lighter connection and ensure the Thumbwheel Switch is in the 'On' position.
Damaged parts
Do not use the inflator. Inspect before every use and have the problem corrected by a qualified technician.
Before use
- Inspect for loose hardware.
- Check for cracked or broken parts.
- Ensure cigarette plug is clean.
- Verify the inflator is outside the vehicle.
- Check manufacturer's recommended air pressure for the item being inflated.
Specs in practice
- Electrical Rating
- 12VDC (requires vehicle cigarette lighter socket).
Images and diagrams

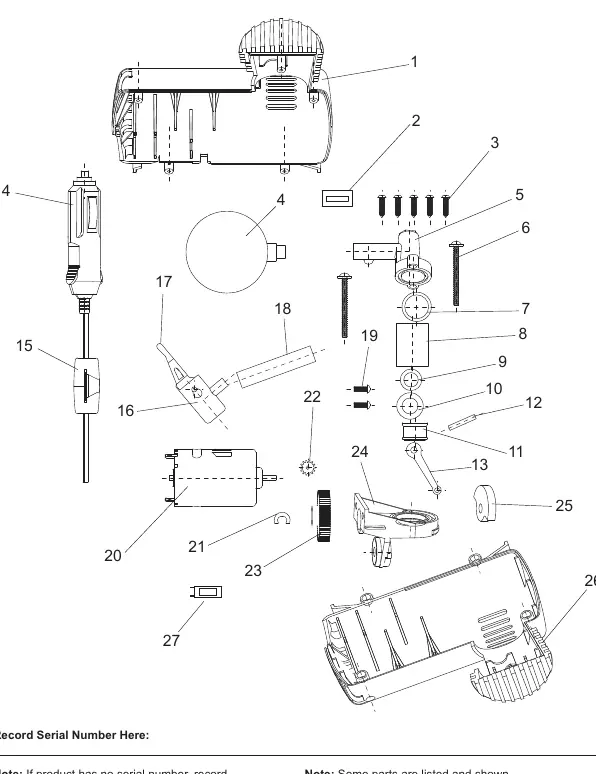

- The Assembly Diagram illustrates the internal components and housing structure.
- Figure A shows the location of the Cigarette Plug and the recessed holder.
Model compatibility
- Not for use on automotive tires.
- Includes sports needle for athletic balls.
- Universal tire adapter included for standard tires.
