User Manual for Porodo 10000mAh MagSafe Power Bank PB085

Quick guide from the manual

The Porodo 10000mAh MagSafe Power Bank is designed to charge smartphones, tablets, and other USB-powered devices. It features a digital display for real-time power monitoring and supports both wired (USB-C) and wireless charging. Before first use, ensure the device is fully charged. Always use a compatible Type-C cable for recharging the power bank itself.

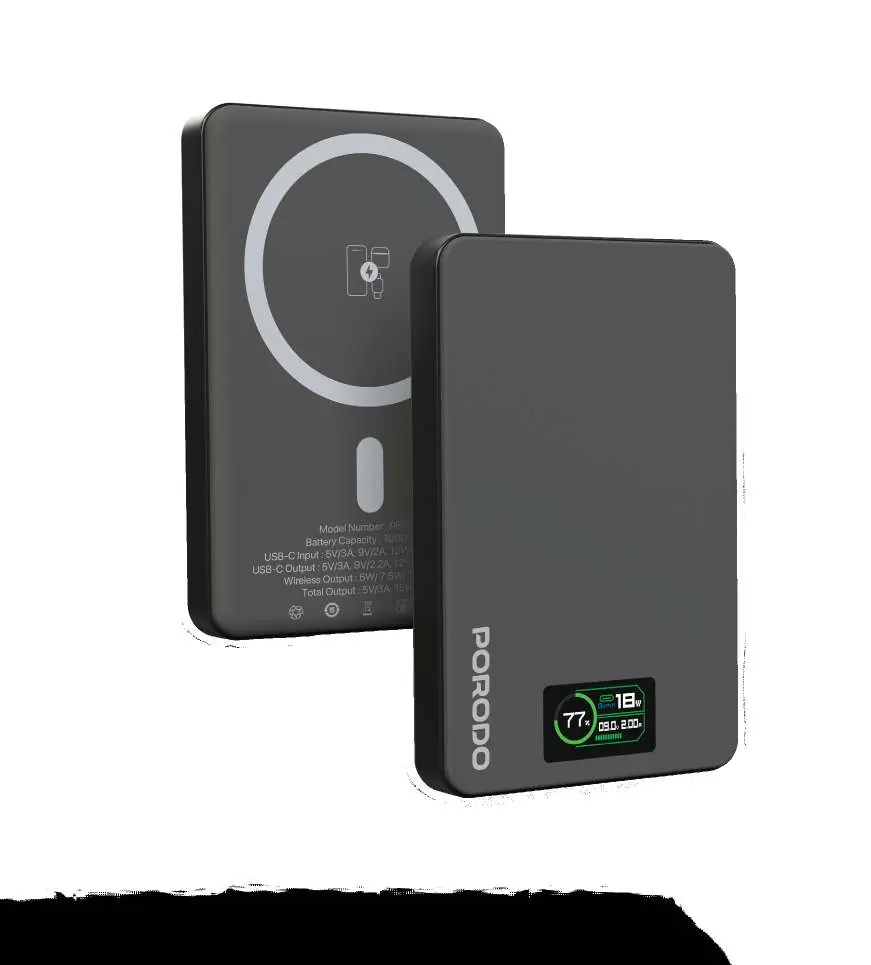

Product Overview

The device includes a digital display that shows the current power level. When the device is not in use or in low power mode, the display turns off to conserve energy. During discharge, the output button is disabled, and the display shuts down when power is exhausted.

Specifications

• Battery Capacity: 10000mAh
• USB-C Input: 5V/3A, 9V/2A, 12V/1.5A (18W Max)
• USB-C Output: 5V/3A, 9V/2.22A, 12V/1.67A (20W Max)
• Wireless Output: 5W/ 7.5W/ 10W/ 15W
• Total Output: 5V/3A (15W Max)
• Weight: 200g
• Dimensions: 15 x 69 x 105mm

Schematic View

The device features the following components:

• Display: Indicates current power level.
• Wireless Output: MagSafe charging surface.
• Type-C Input/Output: Port for charging the power bank or connected devices.
• Power Switch: Used to activate the device.

Usage and Recharging

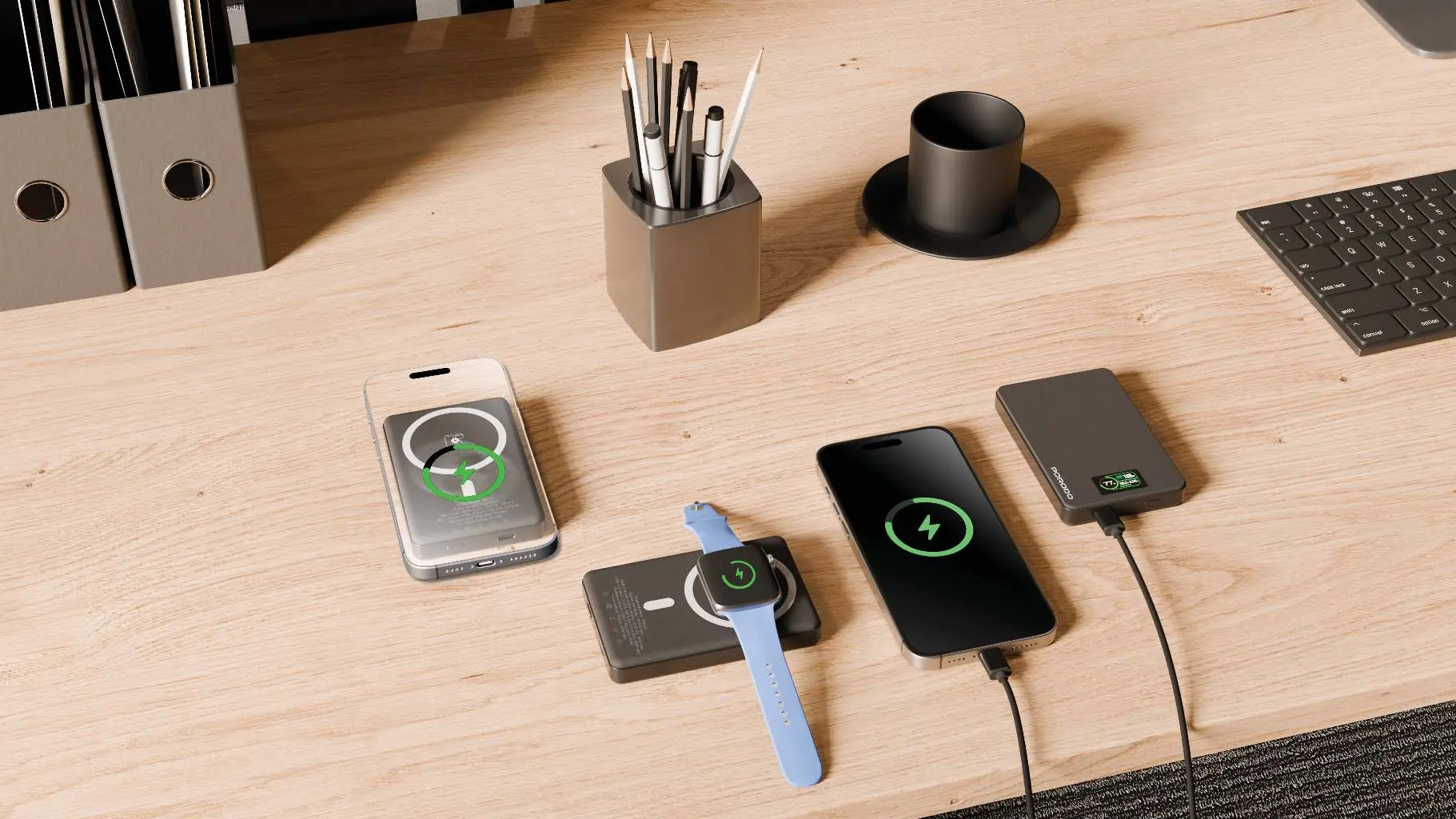

To charge your devices, connect them to the power bank using a compatible Type-C cable. For wireless charging, place your MagSafe-compatible device on the wireless output area. To recharge the power bank, connect it to a power source (computer, wall adapter, or car charger) using the provided Type-C cable. The display will flash while charging and show 100% when fully charged.

Safety Guidelines

• Operate within a temperature range of 0°C to 35°C.
• Keep away from water, fire, and other liquids.
• Do not cover the device during use to ensure proper heat dissipation.
• Do not attempt to disassemble the unit.
• Keep out of reach of children and pets.
• If the battery voltage drops below 3V, the device will automatically shut off for protection.

Troubleshooting

If you encounter issues, consider the following:

• Indicators fail to show full charge: Charge the product for 12 hours or contact a service center.
• Cannot detect remaining power: Charge the product or contact a service center.
• Unable to charge other devices: Ensure the cable/adapter is compatible, or charge the power bank.
• Unexpectedly stops working: The device may have triggered self-protection due to short circuit or overload; charge the product to reactivate it.

Warranty and Contact

Products purchased directly from the Porodo website come with a 24-month warranty. Purchases from approved sellers include a 12-month warranty, which can be extended via the website. For support, contact [email protected] or visit porodo.net/warranty.
