Resistex Hemeria Lighting Fixture Installation Guide
A comprehensive installation guide for the Resistex Hemeria lighting fixture. This manual covers safety precautions, foundation requirements, wiring instructions, and maintenance tips to ensure proper setup and operation.
Quick answers from the manual
Quick answer
- The Hemeria is a lighting fixture requiring professional installation. Ensure power is off, use H05RN-F cable, and follow the foundation guidelines (15cm clearance, 30cm depth). p. 1, 2
Key actions
- Install by a professional p. 1
- Connect wiring (L, N, E) p. 2
Maintenance and reset
- Do not use chemicals or abrasives for cleaning. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Cable Type | H05RN-F | Recommended cable type | p. 2 |
Where to find it in the PDF
- Safety and Maintenance p. 1
- Installation Steps p. 1, 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Resistex Hemeria lighting fixture must be installed by a professional installer in compliance with local electrical standards. Ensure the power is disconnected before starting any work. Use the recommended H05RN-F cable for connections and follow the specific foundation dimensions provided to ensure stability.
Safety notes
- Never work while the fixture is under voltage.
- Installation must be performed by a professional installer.
- The product is sensitive to electrostatic discharges (ESD); handle with necessary precautions.
- Follow all mounting steps precisely as described.
Installation
The installation process involves preparing the foundation and connecting the electrical wiring.
Foundation requirements
- Ensure the foundation provides adequate support.
- Maintain a clearance of 15cm on the sides and a depth of 30cm for the base installation.
Wiring and assembly
- Use H05RN-F cable for the connection. The use of U-1000 R2V cable is not recommended.
- Connect the wires according to the L (Line), N (Neutral), and E (Earth) markings.
- Follow the numbered steps (1-16) in the manual to assemble the fixture onto the base, ensuring all screws are tightened correctly.
Maintenance instructions
- Do not use chemicals or abrasive products to clean the fixture.
- Keep these instructions for future dismantling or maintenance.
- Additional information about Resistex luminaires can be found on the official website www.Resistex-sa.com.
Official resources from the manual
Practical help
Common problems
Cable incompatibility
Use H05RN-F cable. Do not use U-1000 R2V cable.
Unstable installation
Ensure the foundation meets the 15cm side clearance and 30cm depth requirements.
Before use
- Ensure power is disconnected
- Verify professional installer is performing the work
- Check foundation dimensions (15cm clearance, 30cm depth)
- Use H05RN-F cable
Images and diagrams

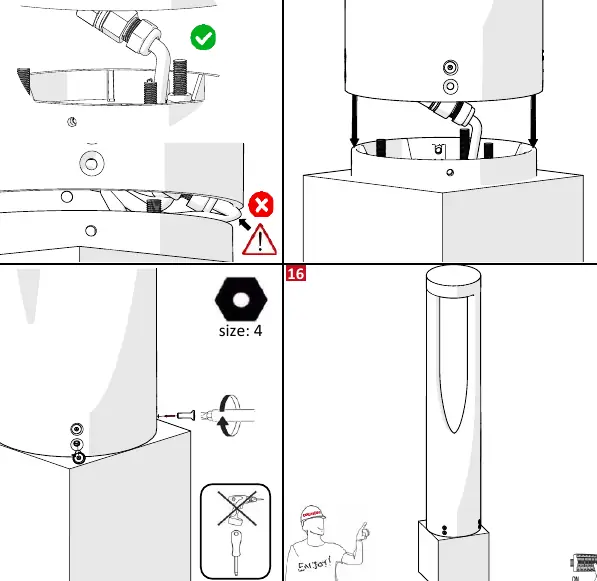

- Steps 1-4: Foundation preparation and base mounting
- Steps 5-8: Wiring connections (L, N, E)
- Steps 9-12: Final assembly of the fixture
- Steps 13-16: Final mounting and securing
Model compatibility
- Recommended cable: H05RN-F
- Not recommended: U-1000 R2V
