Installation Instructions for Resistex Priam LED Light
A comprehensive installation guide for the Resistex Priam LED light fixture. Includes safety warnings, professional installation steps, wiring diagrams, and maintenance instructions.
Quick answers from the manual
Quick answer
- The Resistex Priam LED is a professional lighting fixture. Installation must be performed by a qualified electrician, ensuring power is disconnected before starting. p. 1
Key actions
- Disconnect power before installation p. 1
- Connect wires to terminal block p. 2
Maintenance and reset
- Do not use chemicals or abrasive products to clean the fixture. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| IP | 54 | Ingress Protection | p. 1 |
| IK | 10 | Impact Resistance | p. 1 |
Where to find it in the PDF
- Safety and Maintenance p. 1
- Installation Steps p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential installation and safety instructions for the Resistex Priam LED light fixture. It is intended for use by professional installers. Always ensure the power supply is disconnected before performing any work on the luminaire to prevent electrical shock.
Safety notes
- Never work when voltage is present on the luminaire.
- The installation must be performed by a professional installer in compliance with standards and regulations relating to electrical installations.
- Risk of electrostatic discharges (ESD). Handle components with precautions.
- Please observe the notes and steps described in the mounting instructions.
Installation
- Ensure the power supply is switched off.
- Remove the cover from the base of the fixture.
- Mark and drill the mounting holes (6mm) on the installation surface.
- Secure the base to the surface using the provided hardware.
- Connect the electrical wires to the terminal block, ensuring correct connection of Neutral (N), Earth (E), and Live (L).
- Reattach the cover to the base and secure it.
Maintenance
Do not use chemicals or abrasive products to clean the fixture. Keep these instructions for dismantling or future maintenance. Additional information about Resistex luminaires can be found on the website www.resistex-sa.com.
Official resources from the manual
Practical help
Common problems
Fixture does not turn on
Verify that the power supply is connected and the installation was performed correctly according to the wiring diagram.
ESD damage
Handle the luminaire components with electrostatic discharge precautions during installation.
Before use
- Ensure power supply is disconnected
- Verify professional installer availability
- Check mounting surface suitability
- Prepare tools (drill, screwdriver)
- Confirm wiring (N, E, L)
Images and diagrams
- Steps 1-2: Preparation of the mounting surface and removal of the cover.
- Steps 3-5: Drilling mounting holes and securing the base.

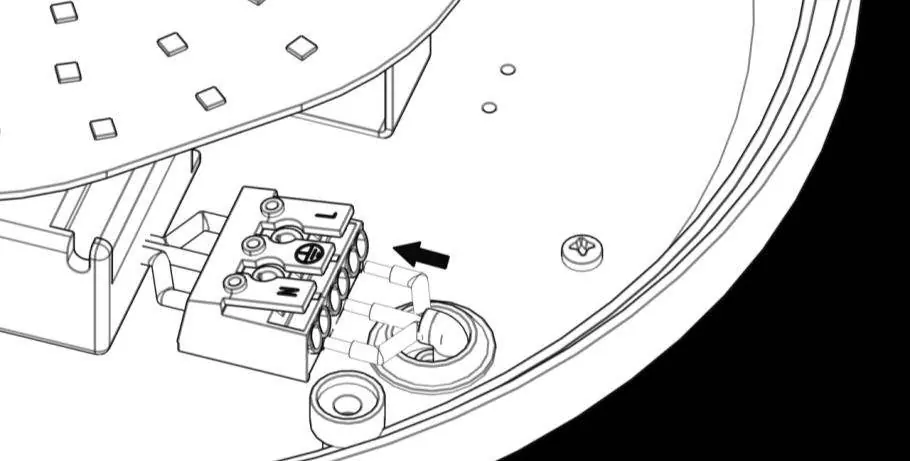

- Step 6: Wiring connection to the terminal block (N, E, L).
- Steps 7-9: Final assembly and securing the cover.
