Installation Guide for Resistex Muse LED Fixture
Quick installation guide for the Resistex Muse LED fixture. Includes safety notes, maintenance tips, and step-by-step mounting instructions for both recessed and surface installation.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides essential installation and safety instructions for the Resistex Muse LED fixture. The device requires professional installation in compliance with electrical standards. Always ensure the power is turned off before beginning any work.
Safety Notes
- Never work on the luminaire while it is under voltage.
- Installation must be performed by a professional installer.
- Be aware of the risk of electrostatic discharges (ESD) and handle components with necessary precautions.
Maintenance
Do not use chemicals or abrasive products to clean the fixture. Keep these instructions for future dismantling or maintenance.
Installation
The manual details two installation methods: recessed and surface mounting.
Recessed Installation
- Cut a hole with a diameter of 67mm.
- Attach the mounting springs to the fixture.
- Connect the electrical wires to the terminal block.
- Insert the fixture into the ceiling opening until it clicks into place.
Surface Installation
- Drill the necessary holes for the mounting bracket.
- Secure the mounting bracket to the surface.
- Connect the electrical wires to the terminal block.
- Attach the fixture to the mounting bracket.

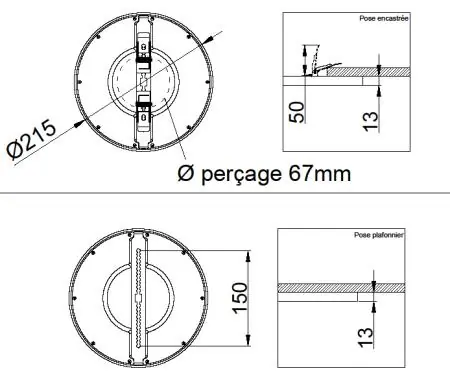

Technical Dimensions
The fixture requires a 67mm diameter hole for recessed mounting. Ensure the ceiling thickness and clearance are compatible with the product dimensions provided in the technical diagrams.
Practical help
Common problems
Risk of electrostatic discharge
Handle the luminaire and its components with necessary precautions (ESD Norm).
Fixture not turning on
Ensure the power supply is disconnected during installation and that all electrical connections are secure.
Before use
- Ensure the power supply is turned off
- Verify that a professional installer is performing the work
- For recessed installation, ensure the ceiling hole diameter is 67mm
- Check that no chemicals or abrasives are used for cleaning
Images and diagrams
- Steps 1-10 illustrate the recessed installation process
- Steps 1-7 illustrate the surface installation process
Model compatibility
- Installation must comply with local standards and regulations relating to electrical installations.
