Installation and User Guide for Resistex Stairled LED Porthole

Quick guide for the Resistex Stairled LED Porthole. Includes installation steps, wiring instructions, safety precautions, and maintenance tips.

Quick answers from the manual

Quick answer

  • The Resistex Stairled is an LED porthole fixture. Installation must be performed by a professional, ensuring power is off and ESD precautions are taken. p. 1, 2

Key actions

  • Install the fixture p. 2
  • Connect wiring p. 2

Problems and fixes

Fixture not working

Check electrical connections and power supply

p. 1, 2

Maintenance and reset

  • Do not use chemicals or abrasives to clean the fixture. p. 1

Technical specifications

Parameter Value Meaning Pages
Diameter 300mm Outer diameter of the fixture p. 1
Drill size 6mm Required drill bit size for mounting p. 2

Where to find it in the PDF

  • Safety and Dimensions p. 1
  • Installation Steps p. 2
Table of contents

Manual images

Click an image to enlarge
Dimensions of the Stairled fixture Page 1 Wiring connection detail Page 2 Securing the fixture Page 2

Quick guide from the manual

The Resistex Stairled is an LED porthole lighting fixture. This document provides essential safety guidelines, installation procedures, and maintenance instructions. Please note that installation must be performed by a professional installer in compliance with local electrical standards.

Safety Notes

  • Power: Never work on the luminaire while it is under voltage.
  • Professional Installation: The installation must be performed by a professional installer in compliance with standards and regulations relating to electrical installations.
  • ESD Precautions: There is a risk of electrostatic discharge (ESD). Handle the components with necessary precautions.

Installation

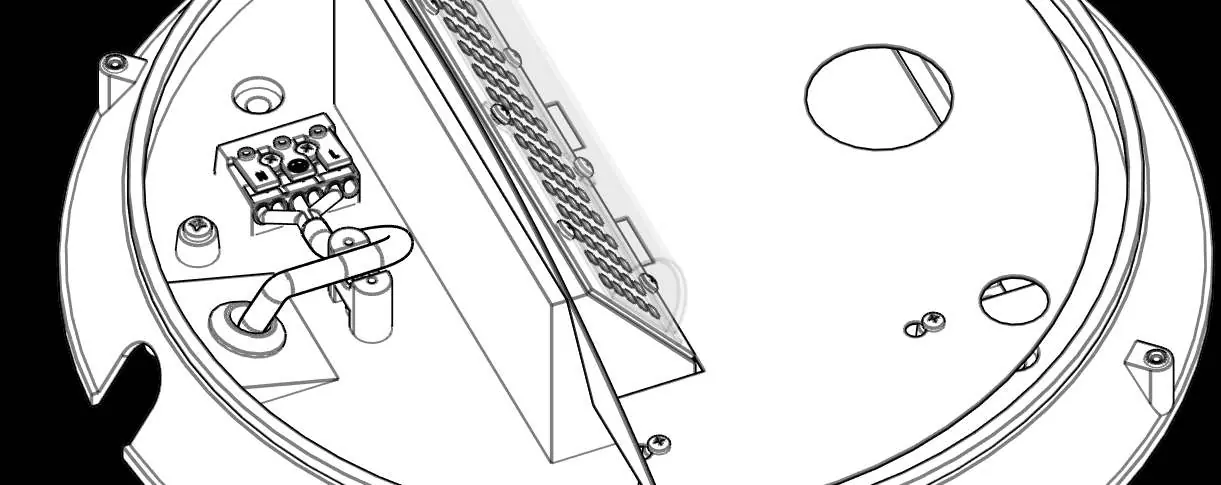

Wiring connection detail
Wiring connection detail

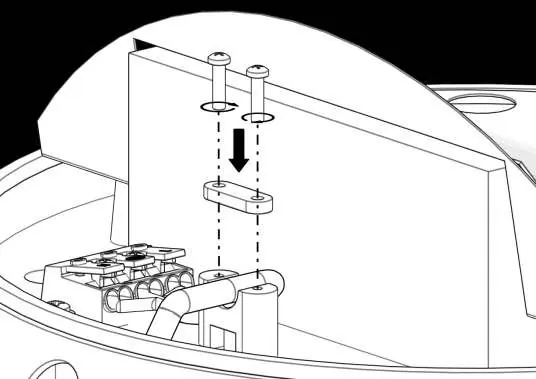

Securing the fixture
Securing the fixture
  1. Ensure the power supply is turned off (OFF position).
  2. Remove the cover from the fixture.
  3. Drill the mounting holes using a 6mm drill bit.
  4. Feed the electrical cable through the cable entry.
  5. Secure the base to the mounting surface using the provided screws.
  6. Connect the wires to the terminal block: Neutral (N), Earth (E), and Live (L).
  7. Reassemble the fixture by attaching the cover.
  8. Turn the power back on (ON position).

Maintenance

To ensure the longevity of the fixture, follow these maintenance guidelines:

  • Do not use chemicals or abrasive products to clean the fixture.
  • Keep these instructions for future dismantling or maintenance.

Technical Specifications

The fixture has a circular design with the following dimensions:

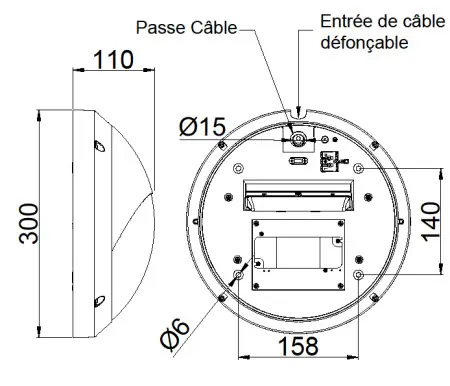

Dimensions of the Stairled fixture
Dimensions of the Stairled fixture
  • Diameter: 300mm
  • Depth: 110mm
  • Mounting Hole Spacing: 140mm x 158mm
  • Drill Size: 6mm

Practical help

Common problems

Fixture does not light up

Verify that the power is on and that the wiring (N, E, L) is correctly connected to the terminal block.

Electrostatic discharge risk

Handle the internal components with care and follow ESD precautions during installation.

Before use

  • Ensure the main power supply is disconnected
  • Verify that a professional installer is available for the setup
  • Check that the mounting surface is suitable for the 300mm diameter fixture
  • Prepare a 6mm drill bit for mounting

Model compatibility

  • Requires professional installation
  • Complies with ESD standards
