Operator's Manual for Ryobi PBLPH01 Power Head and PBLSS01 Trimmer Attachment
Comprehensive user guide for the Ryobi PBLPH01 18V Brushless Power Head and the PBLSS01 Straight Shaft Trimmer Attachment. Includes assembly, operation, maintenance, and troubleshooting instructions.
Quick answers from the manual
Quick answer
- This manual covers the operation and maintenance of the Ryobi PBLPH01 18V Brushless Power Head and the PBLSS01 Straight Shaft Trimmer Attachment. Always remove the battery before assembly, cleaning, or maintenance. p. 1, 31
Key actions
- Attach trimmer to power head p. 8, 40
- Replace trimmer line p. 43, 52
First start
- Assemble the unit p. 7, 39
- Power on p. 9, 41
Problems and fixes
Motor fails to start
Check battery connection and charge status.
p. 9, 11Maintenance and reset
- Clean the power head p. 10, 43
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Cutting Width | 13 in. to 15 in. | Adjustable cutting swath. | p. 39, 47 |
Where to find it in the PDF
- Power Head Manual p. 1, 11
- Trimmer Attachment Manual p. 31, 44
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides instructions for the Ryobi PBLPH01 18V Brushless Power Head and the PBLSS01 Straight Shaft Trimmer Attachment. Always read and understand the safety warnings before operating these tools.
Power Head (PBLPH01)
The power head is designed to be used with various Ryobi Expand-It attachments. Assembly: Attach the front handle to the upper shaft using the provided bolt and wing nut. To attach an accessory, loosen the knob on the coupler, push the button on the attachment shaft, align it with the guide recess, and slide the shafts together until the button locks into the positioning hole. Tighten the knob securely.
Operation: Insert the battery pack until the latches snap into place. Select the desired speed (HI or LOW), move the lock-out into the switch trigger slot, and depress the trigger. Always hold the power head with both hands, keeping the rear handle at about hip height.
Trimmer Attachment (PBLSS01)
The trimmer attachment features an adjustable cutting diameter (13 in. to 15 in.) and a 2-in-1 head for line trimming or blade use. Assembly: Install the grass deflector before connecting the attachment to the power head. To switch between bump feed and fixed line/blade housing, remove the bump feed housing by pinching the tabs and install the desired head.
Operation: Advance the cutting line by tapping the bump knob on the ground while the motor is running at full speed. For manual advancement, stop the motor, remove the battery, and push the bump knob while pulling the line.
Maintenance
Always remove the battery pack before cleaning or performing maintenance. Clean the unit with a dry cloth; do not use water or strong detergents. Periodically inspect for loose fasteners or damaged parts. Store in a dry, well-ventilated area inaccessible to children.
Safety
Always wear eye and hearing protection. Keep bystanders at least 50 ft. away. Do not operate in poor lighting or on excessively steep slopes. Keep all body parts away from moving parts and hot surfaces, such as the motor housing.
Manufacturer information
Ryobi
Practical help
Common problems
Motor fails to start when switch trigger is depressed.
Ensure the battery pack is fully seated and secured, or charge the battery pack.
Line will not advance.
Lubricate with silicone spray, install more line, pull lines while pressing/releasing the bump knob, or untangle the line on the spool.
Grass wraps around housing.
Cut tall grass from the top down to prevent wrapping.
Grass deflector is difficult to adjust.
Scrape debris off the deflector, being careful not to damage it.
Before use
- Inspect the unit for damaged, missing, or loose parts.
- Ensure the battery pack is fully charged and secure.
- Wear eye protection with side shields and hearing protection.
- Ensure the grass deflector is properly installed.
- Check that all fasteners are tightened securely.
Specs in practice
- 13 in. to 15 in.
- Adjustable cutting width of the trimmer attachment.
Images and diagrams

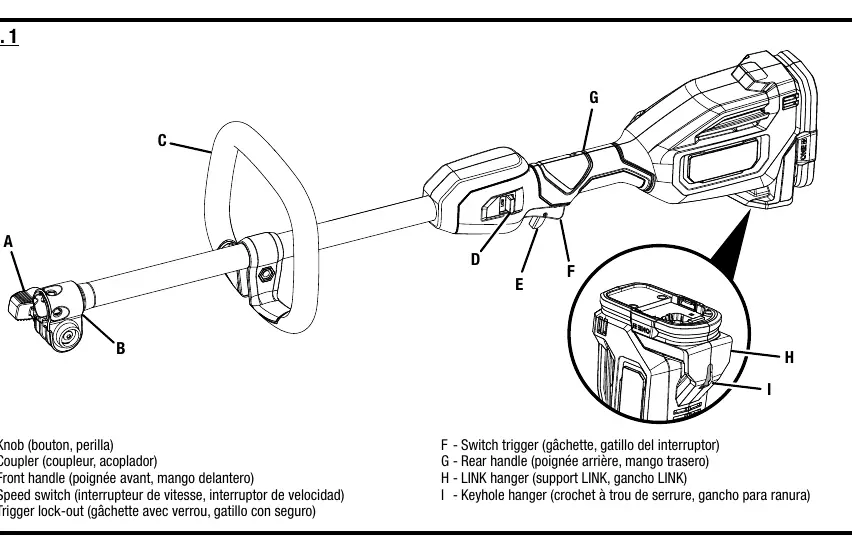

- Fig 1: Identification of power head components including coupler, speed switch, and trigger.
- Fig 2: Attaching the trimmer accessory to the power head shaft.

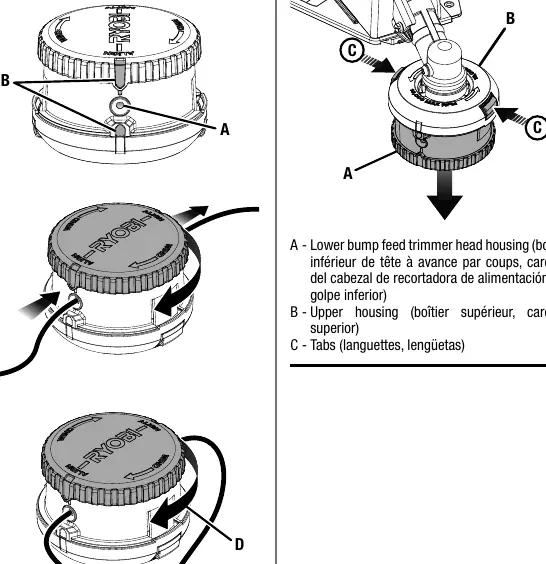

- Fig 12: Line replacement procedure and bump knob operation.
Model compatibility
- PBLPH01 is compatible with various Ryobi Expand-It attachments.
- PBLSS01 is a specific attachment for the power head and should not be used with unauthorized power sources.
