User Manual for Ryobi 18V Hybrid Forced Air Propane Heater PCL801
Comprehensive user guide for the Ryobi 18V Hybrid Forced Air Propane Heater (PCL801). Includes safety instructions, assembly, operation, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The Ryobi PCL801 is a dual-power (18V battery or 120V AC) forced air propane heater designed for outdoor use only. It features variable heat output (30,000-60,000 BTU) and automatic safety shut-off. p. 8, 10
Key actions
- Connect propane cylinder p. 9
- Start the heater p. 11
First start
- Ensure proper ventilation, connect power source, connect propane, perform leak test, press ON/OFF, wait for green light, press ignition. p. 3, 9, 11
Problems and fixes
Burner won't stay lit
Wait 30 seconds, repeat starting steps, ensure ignition button is held until LED is solid green.
p. 11
Major leak sound
Turn off cylinder valve immediately, correct connection.
p. 9Maintenance and reset
- Allow unit to cool for 5 minutes before restarting. p. 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power Source | 18V Battery or 120V AC, 60Hz | Dual power capability. | p. 8 |
| Heat Output | 30,000 - 60,000 BTU | Variable heat output. | p. 8 |
Where to find it in the PDF
- Safety Instructions p. 2, 3, 4, 5
- Assembly p. 8, 9
- Operation p. 10, 11
- Maintenance p. 12
- Illustrations p. 13, 14
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Ryobi 18V Hybrid Forced Air Propane Heater (PCL801) is designed for outdoor use only. It features dual power options (18V battery or 120V AC) and provides variable heat output from 30,000 to 60,000 BTU. Always ensure proper ventilation and perform a leak test before every use.
Safety Instructions
DANGER: Carbon monoxide is a poisonous, odorless gas. Never use this heater indoors, in garages, crawlspaces, or recreational vehicles. Using a fan or opening windows does not provide enough fresh air. Always use a battery-powered CO alarm in the home.
- Outdoor Use Only: Do not use for heating human living quarters.
- Ventilation: Adequate ventilation is required. Provide a minimum 2 sq. ft. (0.19 m2) opening near the floor and 2 sq. ft. (0.19 m2) near the ceiling.
- Clearance: Keep the heater at least 24 inches from rear and sides, and 72 inches from above and front outlet.
- Fuel Safety: Never fill propane cylinder beyond 80% capacity. Store cylinders outdoors.
Assembly and Setup
This product requires assembly. Ensure all parts are present before starting.
Connecting the Propane Cylinder
- Ensure the propane cylinder valve is in the full off position.
- Remove the rubber protector cap from the heater's propane inlet.
- Insert the regulator nipple into the cylinder valve.
- Turn the coupling nut counterclockwise to tighten by hand. Do not use tools.
- Perform a leak test using a 50/50 mixture of mild soap and water on all connections.
Operation
This heater can be powered by a Ryobi 18V battery pack or a 120V AC power cord.
Starting the Heater
- Ensure the propane tank is connected and a leak test has been performed.
- Connect the heater to a power source (battery or AC cord).
- Press the ON/OFF button. The fan will start, and the LED will display solid red, then green when ready.
- Press the electronic ignition button and hold until the LED displays solid green.
Temperature Control
Use the temperature control knob to adjust heat output between 30,000 and 60,000 BTU. Turn clockwise to increase temperature and counterclockwise to decrease.
Maintenance
Service must be performed only by qualified repair personnel. Always remove the battery pack or unplug the power cord before cleaning or maintenance. Clean the unit only with a dry cloth. Do not use solvents on plastic parts.
Auto Shut Off
The heater will automatically shut off in the following conditions: flame out, over-temperature, low voltage, or improper fan rotation. If the LED flashes red, check for restricted airflow or operation errors.
Manufacturer information
Ryobi
Practical help
Common problems
Heater burner will not stay lit
Wait 30 seconds and repeat starting steps. Ensure the electronic ignition button is pressed immediately after the green light flashes and held until the LED is solid green.
Major leak sound (rushing sound) during connection
Immediately turn off the cylinder valve. Correct the connection before proceeding.
Heater shuts off automatically
Check for empty propane tank, blocked airflow, low battery, or power outage.
Before use
- Ensure the heater is for outdoor use only.
- Inspect the hose for abrasion, wear, or cuts.
- Perform a leak test on all connections using soapy water.
- Ensure proper ventilation (2 sq. ft. near floor and ceiling).
- Verify the propane cylinder is upright and has a collar.
- Ensure the heater is on a stable, level surface.
Specs in practice
- Dual Power Source
- Can be powered by a Ryobi 18V battery or 120V AC household current.
- Minimum Air Temp
- The heater is rated for operation down to 0°F (-17°C).
Images and diagrams

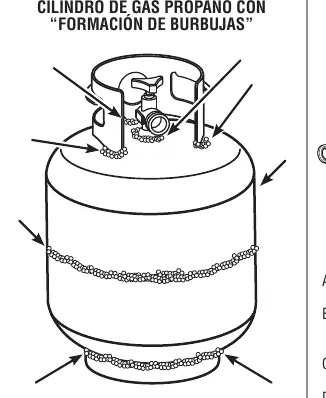

- Figure 1: Shows leak test points on the propane cylinder.

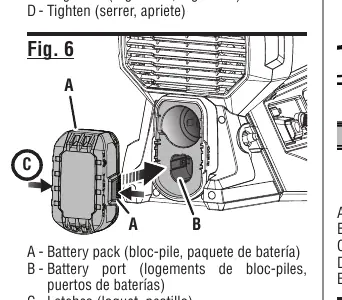

- Figure 6: Illustrates battery pack installation and removal.

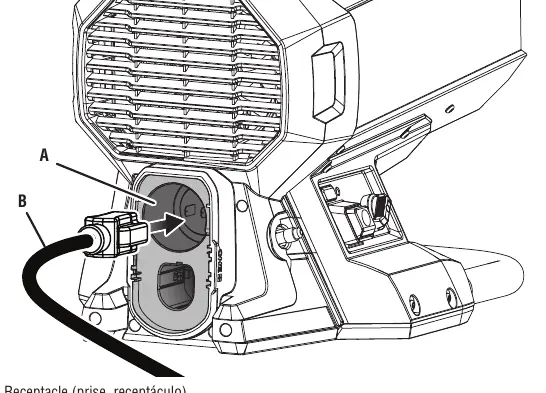

- Figure 7: Shows how to connect the power cord.

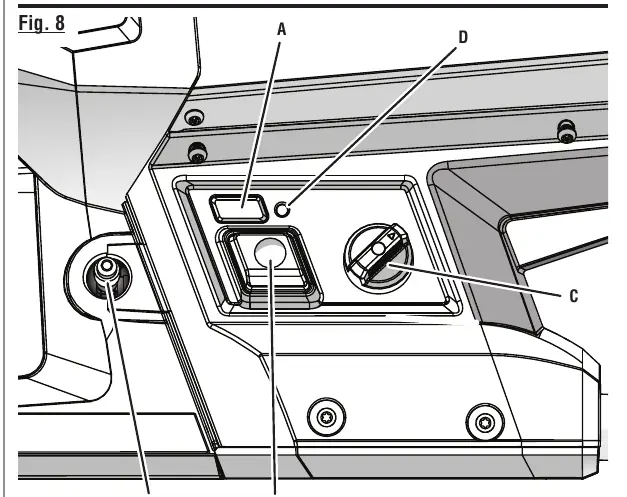

- Figure 8: Details the control panel, including ON/OFF, ignition, and temperature knob.
Model compatibility
- Use only Ryobi 18V battery packs.
- Use only propane cylinders with an OPD (Overfill Protection Device) triangular handwheel.
- Use only 16 AWG or heavier extension cords for AC power.
