User Manual for Ryobi RY18PCB-0 Patio Cleaner and 18V Battery Pack

Quick guide from the manual

This document covers the operation of the Ryobi RY18PCB-0 Cordless Patio Cleaner and the maintenance of Ryobi 18V Lithium-Ion battery packs (RB18L15/RB18L40). Key points include:

• Battery Charging: Batteries are shipped in a low charge condition and must be charged before first use.
• Safety: Always remove the battery pack when not in use or during maintenance. Do not expose batteries to fire or extreme heat.
• Operation: The patio cleaner features tool-free accessory changes and telescoping height adjustment.
• Battery Protection: If the tool stops during use, release the trigger to reset. If it does not restart, the battery may need charging.

Product overview

The Ryobi RY18PCB-0 is an 18V cordless patio cleaner designed for cleaning flat surfaces like decking and patios. It features an overmould grip for comfort, telescoping height adjustment to prevent kneeling, and a tool-free accessory change system.

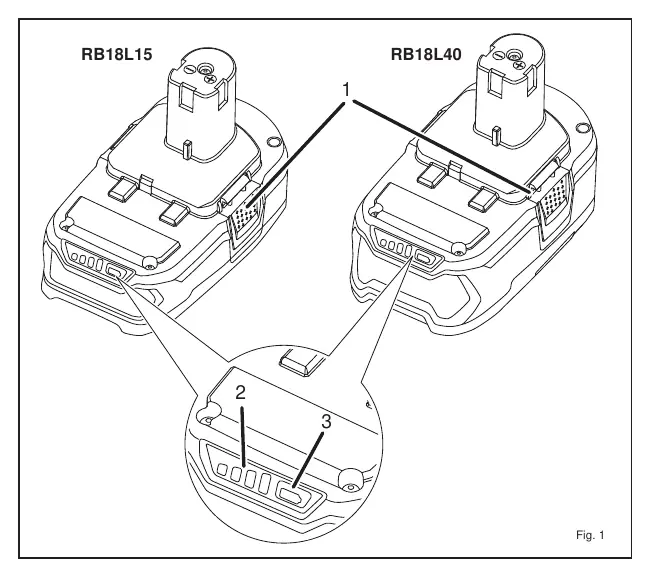

Battery operation

Ryobi 18V lithium-ion battery packs are equipped with protection features to monitor cells and maximize life. The battery may enter sleep mode if completely discharged. To reactivate a battery in sleep mode, place it in the charger for 90 seconds. If the charging process does not begin, remove the battery for 30 seconds and try again. The battery can be used in cold weather down to -10°C; start with light-duty applications to allow the battery to warm up.

Battery maintenance and storage

To ensure maximum battery life, remove the battery from the charger once fully charged. Do not disassemble the battery pack. For storage longer than 30 days, store the battery in a location where the temperature is below 27°C and in a charged condition (30%-50%). After six months of storage, it is recommended to discharge the battery by 10%-20% by running it in a tool, then recharge it.

Safety instructions

Keep battery packs away from metal objects like paper clips, coins, and keys to prevent short circuits. Do not charge the battery in damp or wet locations. If battery leakage occurs, wash skin with soap and water and neutralize with lemon juice or vinegar. If liquid enters the eyes, flush with clean water for at least 10 minutes and seek medical attention.
