Installation and Dimension Guide for Samsung 7.6 cu. ft. Kimchi & Specialty 2-Door Chest RP22T31137Z
Essential installation guide and dimension specifications for the Samsung 7.6 cu. ft. Kimchi & Specialty 2-Door Chest (RP22T31137Z). Includes clearance requirements, ambient temperature limits, and delivery route planning.
Quick answers from the manual
Quick answer
- This guide provides the physical dimensions and installation requirements for the Samsung RP22T31137Z Kimchi Refrigerator to ensure it fits in your home. p. 1
Key actions
- Measure the narrowest opening on the delivery route to ensure the appliance will fit. p. 1
- Ensure at least 3 15/16" clearance behind the unit. p. 1
Problems and fixes
Doors bumping into wall
Maintain at least 3 15/16" clearance behind the unit.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Width | 36 1/2" | Total width of the unit | p. 1 |
| Depth | 27 3/4" | Total depth of the unit | p. 1 |
| Height (with doors) | 38 3/8" | Total height including doors | p. 1 |
| Height (without doors) | 35 5/8" | Height of the unit body | p. 1 |
| Ambient Temperature | 41°F - 109°F | Operating temperature range | p. 1 |
Where to find it in the PDF
- Installation and Dimension Guide p. 1
Table of contents
Quick guide from the manual
This document provides essential dimensions and installation requirements for the Samsung 7.6 cu. ft. Kimchi & Specialty 2-Door Chest (Model RP22T31137Z). Use these specifications to plan your delivery and installation to ensure the appliance fits correctly in your home.
Dimensions
Before installation, ensure your space accommodates the following dimensions:
- Width: 36 1/2"
- Depth: 27 3/4"
- Height (with doors): 38 3/8"
- Height (without doors): 35 5/8"
- Door open angle: 92°
Installation requirements
- Clearance: Maintain at least 3 15/16" of clearance behind the refrigerator to prevent the doors from hitting walls or furniture.
- Surface: The floor must be solid and level to support the weight of the unit when fully loaded with kimchi. Do not install on an inclined surface or a step to avoid tipping.
- Environment: Install in an area with a constant ambient temperature between 41°F and 109°F.
- Ventilation: Do not install on carpet or rugs. Keep ventilation openings clear of obstructions.
- Placement: Avoid areas with direct sunlight or near heating appliances.
Delivery route planning
Before delivery, identify the narrowest opening the appliance must pass through. Ensure the appliance's depth or width is smaller than the width of the narrowest opening.
Manufacturer information
Samsung Electronics
Practical help
Common problems
Doors bumping into wall or furniture
Maintain at least 3 15/16" of clearance behind the refrigerator.
Items inside freezing or becoming soft
Ensure the ambient temperature remains constant between 41°F and 109°F.
Unit tipping over
Do not install on an inclined surface or a step.
Before use
- Measure the narrowest opening on the delivery route.
- Ensure the floor is solid enough to support the weight when full.
- Verify the ambient temperature is between 41°F and 109°F.
- Ensure there is at least 3 15/16" clearance behind the unit.
- Do not install on carpet or rugs.
Show more Show less
Specs in practice
- Height (with doors)
- 38 3/8 inches
- Height (without doors)
- 35 5/8 inches
Images and diagrams

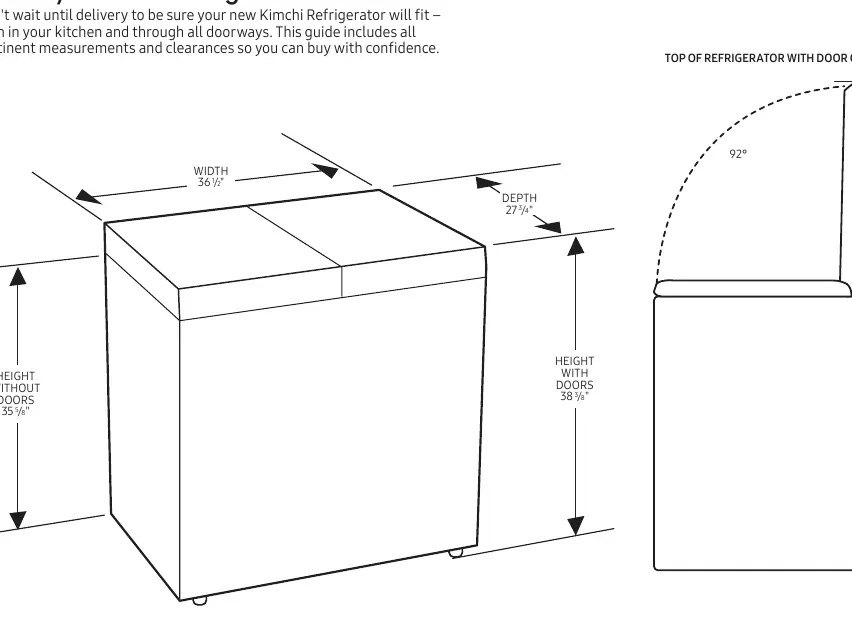

- The diagram illustrates the physical dimensions of the unit, including width, depth, and height with/without doors.
- It shows the required clearance for the door opening angle of 92 degrees.
Model compatibility
- Not suitable for installation on carpet or rugs.
- Requires a solid, even surface.
