Sanela SLSN 01P Stainless Steel Piezo Shower Panel User Guide

Quick guide from the manual

The Sanela SLSN 01P is a stainless steel shower panel with integrated piezo control for cold or premixed water, operating at 24 V DC. This document provides essential installation and configuration steps. Ensure the unit is connected to a constant power supply and never behind a light circuit switch to maintain proper functionality.

Installation

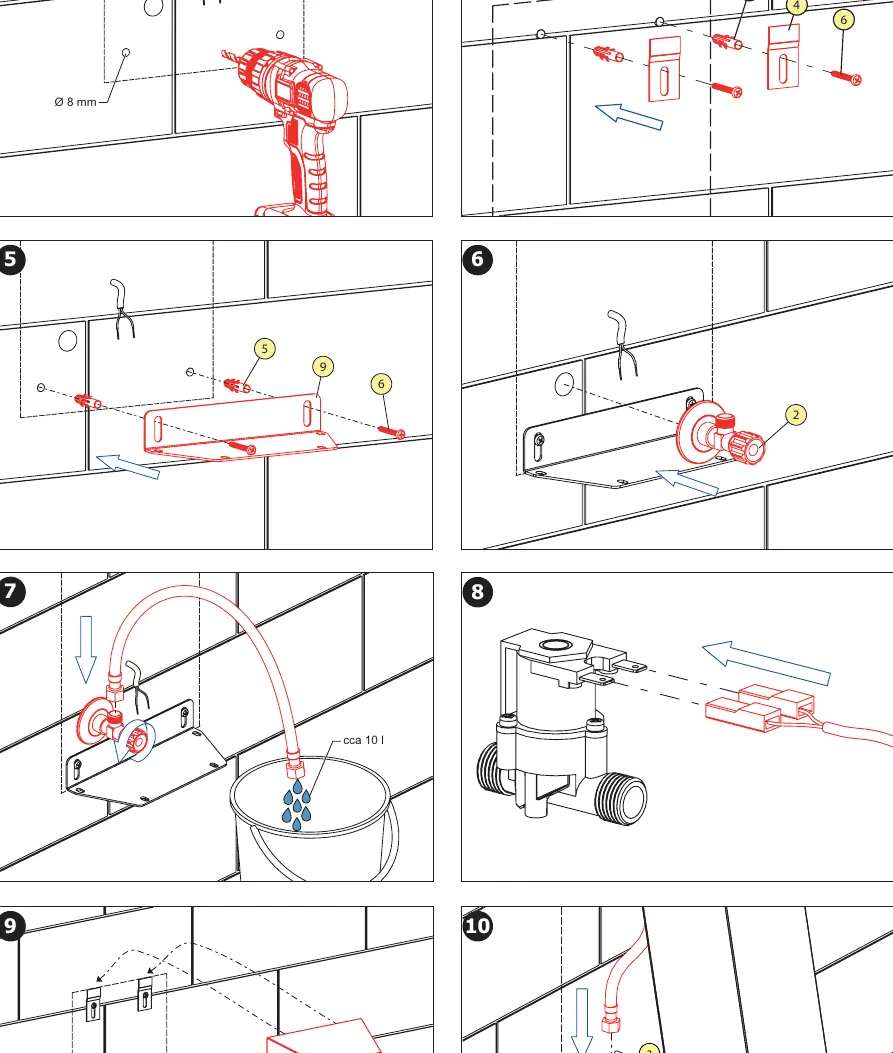

Before installation, ensure you have read the attached safety instructions. The installation requires a water inlet (G 1/2") and a 24 V DC power supply. Follow these steps:

• Prepare the wall according to the technical drawing (water inlet and power cable placement).
• Drill holes (8 mm diameter) for mounting the bracket.
• Secure the mounting bracket to the wall using the provided screws and wall plugs.
• Install the control valve assembly.
• Flush the water supply line (approx. 10 liters) before final connection to prevent debris from entering the system.
• Connect the electrical wiring for the piezo control.
• Mount the shower panel onto the bracket and secure it with the provided screws.

Operation and Settings

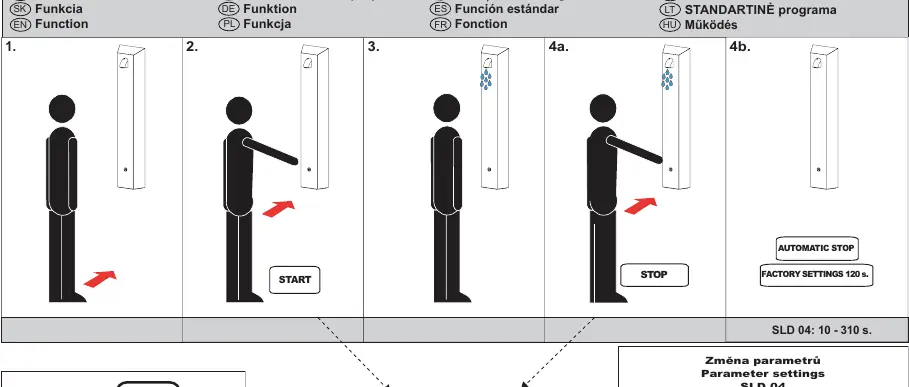

The shower panel features automatic stop functionality. Parameters can be adjusted using the SLD 04 remote control:

• Automatic Stop: Factory setting is 120 seconds (adjustable range 10-310 s).
• Hygienic Flush Interval: Factory setting is OFF (adjustable: 6, 8, 12, 24, 48, 72, 168 hours).
• Hygienic Flush Duration: Factory setting is 5 seconds (adjustable range 5-1200 s).

Maintenance

Regular maintenance is recommended. The sieve (filter) dimension must be ≤ 90 µm. If the regulator needs replacement, follow the specific steps provided in the manual to disassemble the nozzle and replace the internal regulator component.

Technical Data

• Operating Pressure: 0.1 - 0.6 MPa.
• Power Supply: 24 V DC.
• Water Inlet: G 1/2".
• Flow Rates: 6 l/min (white insert) or 12 l/min (yellow insert).
