User Manual for Sanela SLSN 02PTB Stainless Steel Shower Panel

Quick guide from the manual

The Sanela SLSN 02PTB is a stainless steel shower panel featuring piezo-controlled operation and a thermostatic mixer. Key operational aspects include:

• Piezo Control: The shower is activated by pressing the piezo button.
• Automatic Stop: The water flow stops automatically after a set time (factory setting 120 seconds).
• Hygienic Flush: The system supports a hygienic flush function to prevent water stagnation.
• Settings: Advanced parameters, such as automatic stop time and hygienic flush intervals, are configured using the SLD 04 remote control.

Installation

Installation must be performed by qualified personnel. Ensure the water supply meets the pressure requirements of 0.1 - 0.6 MPa and that the sieve dimension is ≤ 90 µm.

1. Preparation: Ensure the wall is prepared according to the technical drawing provided in the manual.
2. Mounting: Drill holes (Ø 8 mm) and mount the bracket using the provided hardware.
3. Water Connection: Connect the hot and cold water supplies to the thermostatic mixer. Flush the lines before final connection.
4. Battery Installation: Insert the batteries into the battery holder and connect it to the control unit.
5. Panel Mounting: Secure the shower panel to the mounting bracket.

Operation

To operate the shower, press the piezo button. The water will flow for the duration set in the control unit. To stop the water flow manually before the automatic stop time, press the piezo button again.

Settings and Parameters

Configuration of the shower panel requires the SLD 04 remote control. Using this device, you can adjust:

• Automatic Stop Time: Adjustable between 10 and 310 seconds (factory setting 120 s).
• Hygienic Flush Interval: Can be set to OFF, 6, 8, 12, 24, 48, 72, or 168 hours.
• Hygienic Flush Duration: Adjustable between 5 and 1200 seconds (factory setting 5 s).

Maintenance

Regular maintenance ensures optimal performance:

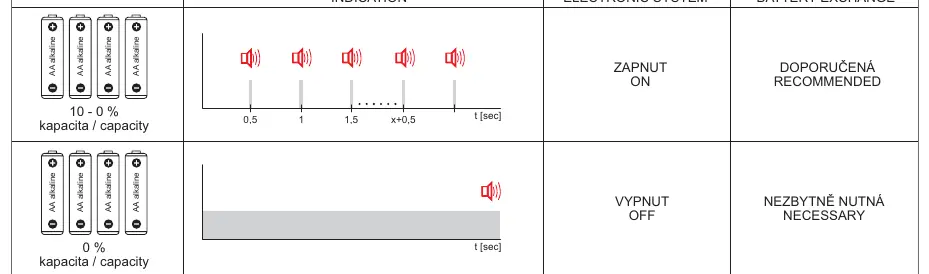

• Battery Replacement: Monitor the battery status. If the electronic system indicates low capacity, replace the batteries immediately. Use 4x AA alkaline batteries (1.5 V, 2700 mAh).

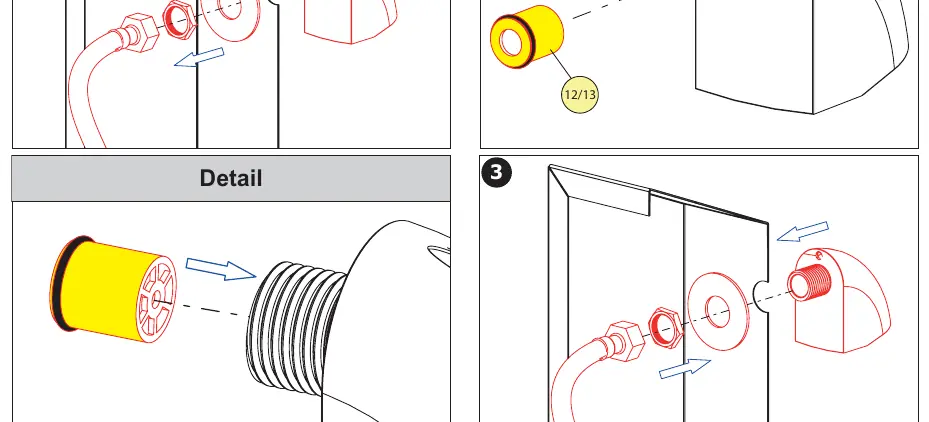

• Regulator Replacement: If water flow is restricted or irregular, the regulator may need cleaning or replacement. Follow the specific steps for regulator removal and installation provided in the manual.
• Cleaning: Keep the stainless steel surface clean. Do not use abrasive cleaners.

Troubleshooting

If the system is not functioning correctly, check the following:

• Battery Status: Listen for audio signals from the electronic system. If the system indicates low battery, replace the batteries.
• Water Flow: Ensure the water supply is open and the sieve is not clogged.
• Settings: Verify that the parameters (automatic stop time) are correctly configured using the SLD 04 remote.
