Installation Manual for Sanela SLPN 07 Stainless Steel Urinal

Quick guide from the manual

Before beginning the installation of the Sanela SLPN 07 stainless steel urinal, it is essential to read the attached safety instructions thoroughly. Ensure the wall structure is capable of supporting the unit. The installation requires standard plumbing connections for water inlet and waste drainage.

Technical specifications

• Product: Stainless steel urinal SLPN 07
• Water inlet: G 1/2"
• Waste pipe: Ø 40 mm
• Installation height: 650 mm from the floor to the front edge of the urinal
• Dimensions: 550 mm (height) x 350 mm (width)

Installation steps

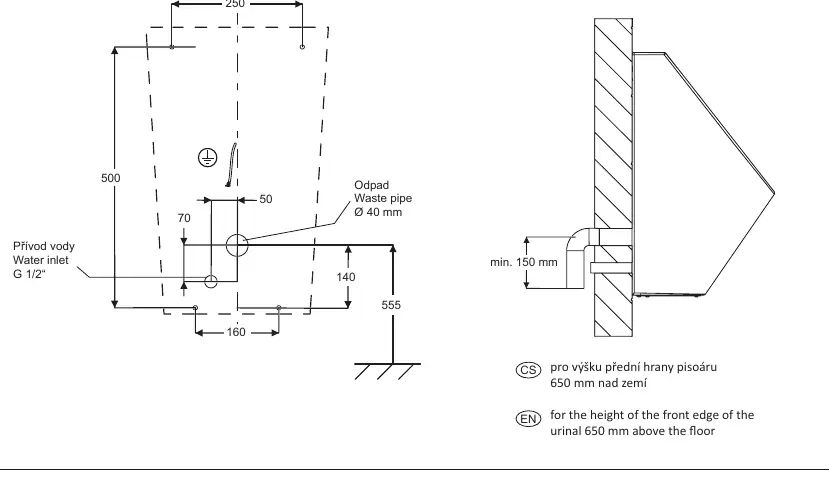

1. Preparation: Mark the mounting positions on the wall based on the provided dimensions. Drill holes (Ø 8 mm) for the mounting bracket.
2. Mounting: Secure the mounting bracket to the wall using the provided hardware.
3. Plumbing: Install the water inlet connection (G 1/2") and the waste pipe (Ø 40 mm) according to the layout.

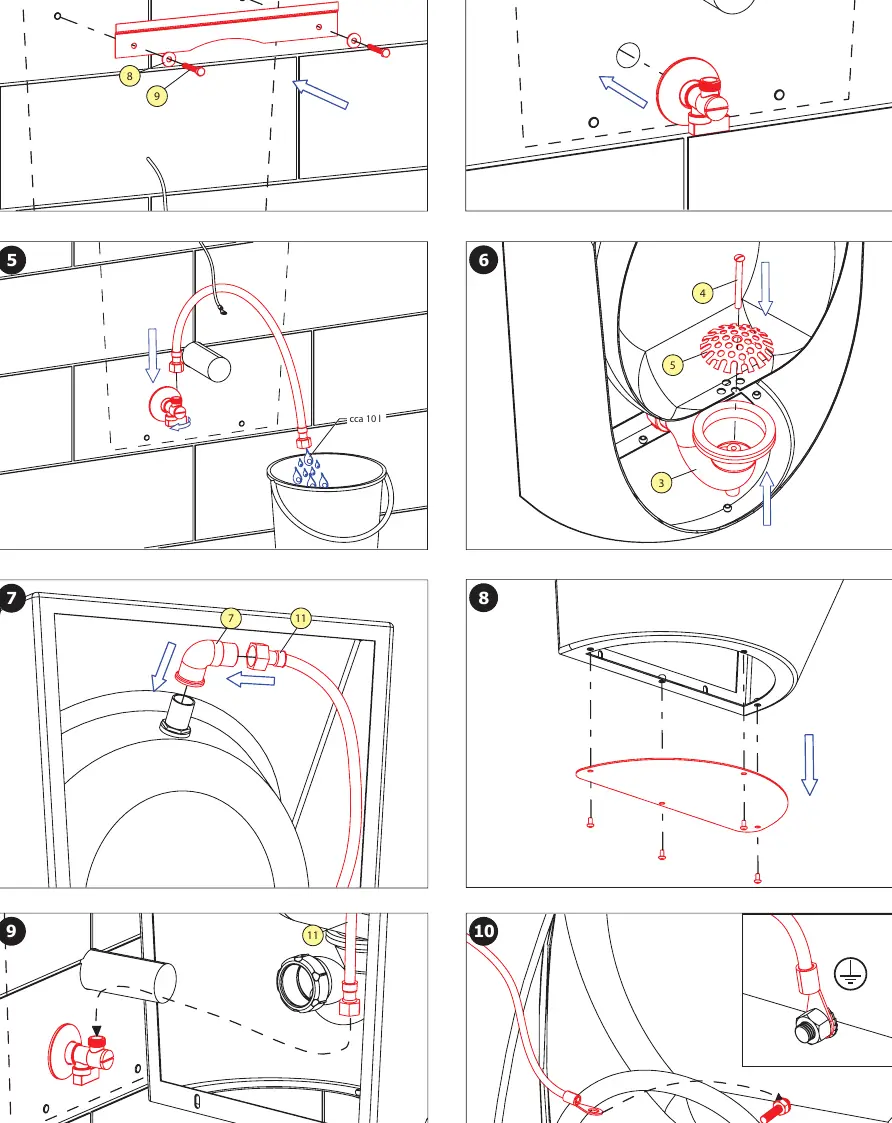

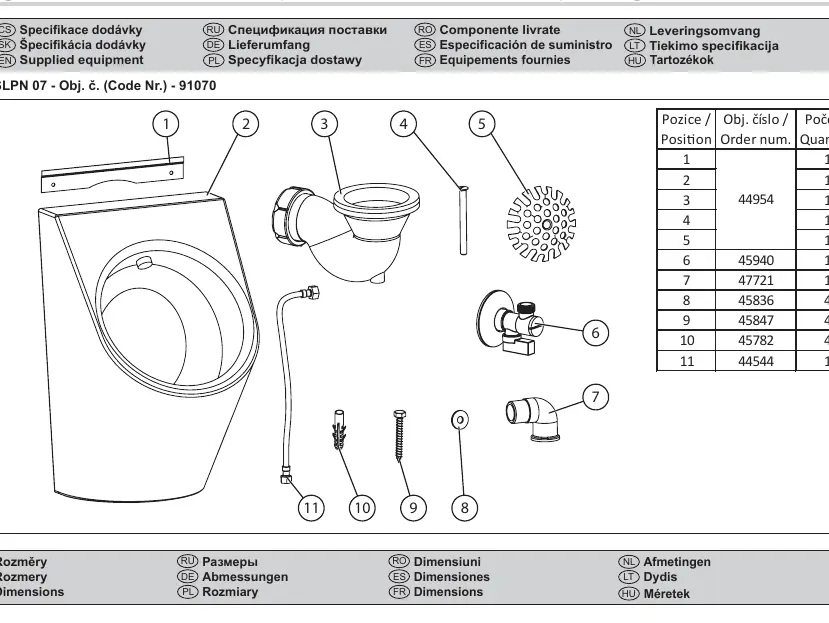

4. Assembly: Assemble the internal components (siphon, strainer, and connection fittings) as shown in the diagrams.
5. Final mounting: Attach the urinal body to the wall bracket and secure it. Ensure all connections are tight and leak-free.

Maintenance and cleaning

To maintain the stainless steel surface, follow these guidelines:

• Clean only with water, soap, and a soft rag.
• Strictly forbidden: Do not use aggressive or abrasive cleaning agents.
• Recommended: Use the SLA 37 cleaning product from the Sanela assortment.

For further assistance or spare parts, contact the manufacturer: SANELA spol. s r. o., Dukelských hrdinů 989, 563 01 Lanškroun, Czech Republic, [email protected].
