User Manual for Sanela SLS 03SB Wall-Mounted Shower Control
Quick guide for the Sanela SLS 03SB wall-mounted shower control. Includes installation steps, sensor settings, battery replacement, and maintenance procedures.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Sanela SLS 03SB is a wall-mounted shower control with an integrated thermostatic mixer and infrared sensor. This guide covers the essential installation, operation, and maintenance steps required for proper functionality. Always read the full safety instructions provided with the product before beginning installation.
Installation
The unit is designed for wall mounting with standard G 1/2" connections. Ensure the water supply pipes are spaced exactly 150 mm apart.
- Ensure the water pressure is within the range of 0.1 - 0.6 MPa.
- The sieve dimension must be ≤ 90 µm to prevent clogging.
- Follow the installation sequence: connect the water supply, install the wall covers, mount the control unit, and connect the shower hose.
- Insert the 9V (U9VL) battery into the designated compartment.
Operation and Settings
The shower is activated via an infrared sensor. The sensor range is adjustable between 0 and 0.75 meters.
- Activation: The shower starts when the user is detected within the sensor range.
- Automatic Stop: The water flow stops automatically after a set time (factory setting is 310 seconds).
- Hygienic Flush: The system supports a hygienic flush to prevent bacterial growth. Both the interval (e.g., 6, 8, 12, 24, 48, 72, 168 hours) and the duration (5 - 1200 seconds) can be adjusted.
- Parameter Adjustment: Settings can be modified using the Sanela Control application or the SLD 03 remote control.
Maintenance
Regular maintenance ensures the longevity and hygiene of the shower control.
- Battery Replacement: Monitor the battery capacity. When the capacity reaches 0%, the battery must be replaced. The system provides visual indications of battery status.
- Cleaning: Keep the sensor area clean. Ensure the sieve is free of debris to maintain proper water flow.
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Shower does not activate
Check if the battery is depleted (replace if necessary) and ensure the user is within the sensor detection range (0 - 0.75 m).
Water flow stops unexpectedly
The automatic shut-off timer may have been reached. Check the 'Time Safety Shut-off' settings.
Low water flow
Check the sieve for debris. The sieve dimension must be ≤ 90 µm.
Before use
- Verify water pressure is between 0.1 and 0.6 MPa.
- Ensure pipe spacing is 150 mm.
- Install a fresh 9V (U9VL) battery.
- Clean the sieve before installation.
- Read the attached Safety Instructions.
Specs in practice
- Power Supply
- 9V (U9VL) lithium battery.
- Water Pressure
- Operating range is 0.1 - 0.6 MPa.
- Sensor Range
- Adjustable from 0 to 0.75 meters.
Images and diagrams
- Page 1 shows the sensor range, hygienic flush settings, and parameter adjustment options.

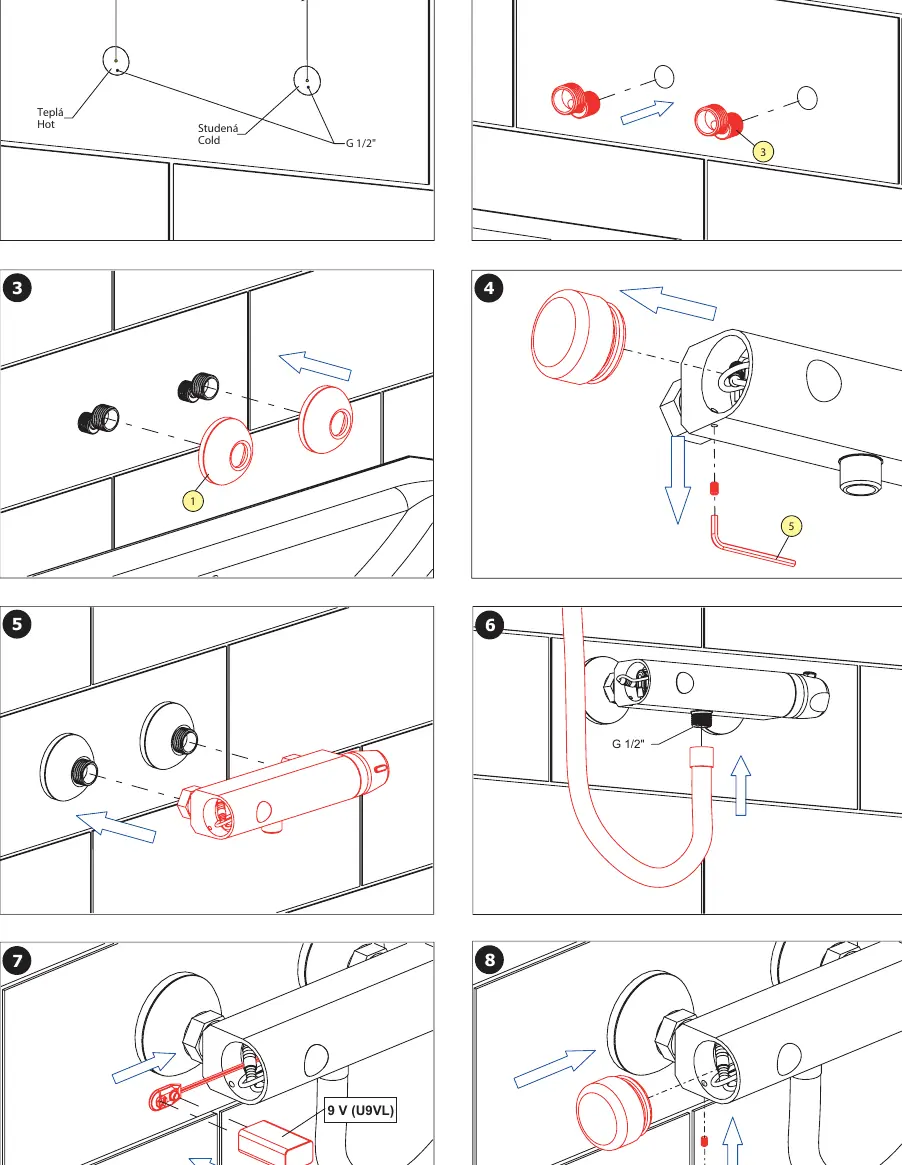

- Page 3 provides a step-by-step visual guide for wall mounting and connecting the unit.

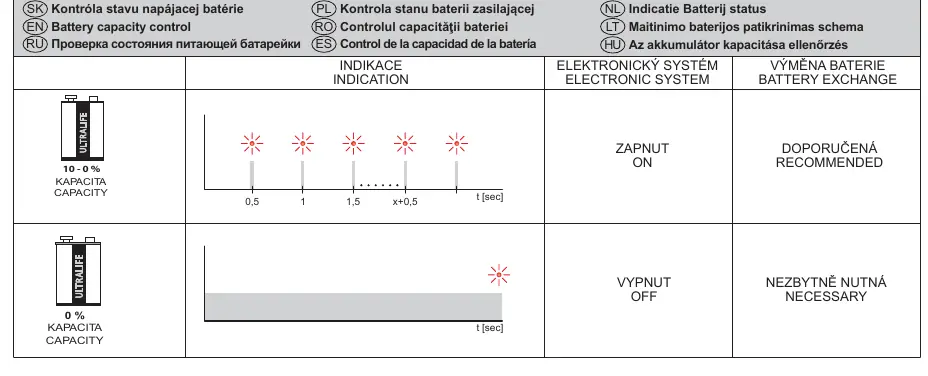

- Page 4 details the battery status indicators and replacement procedure.
Model compatibility
- Compatible with Sanela Control application for configuration.
- Requires SLD 03 remote control for parameter settings.
- Uses standard 9V U9VL lithium batteries.
