User Manual for Sanela SLS 02PTA Piezo Button Shower Control
Quick guide for the Sanela SLS 02PTA piezo button shower control. Includes installation steps, wiring diagrams, parameter settings, and maintenance instructions.
Table of contents
Manual images
Click an image to enlargeImportant Information
The Sanela SLS 02PTA is a piezo button shower control with a thermo mixer. It requires a constant 24V DC power supply. Do not connect the power supply behind a light switch, as the unit must be under constant voltage for proper function. Ensure the water pressure is between 0.1 and 0.6 MPa and the sieve dimension is ≤ 90 µm.
Installation

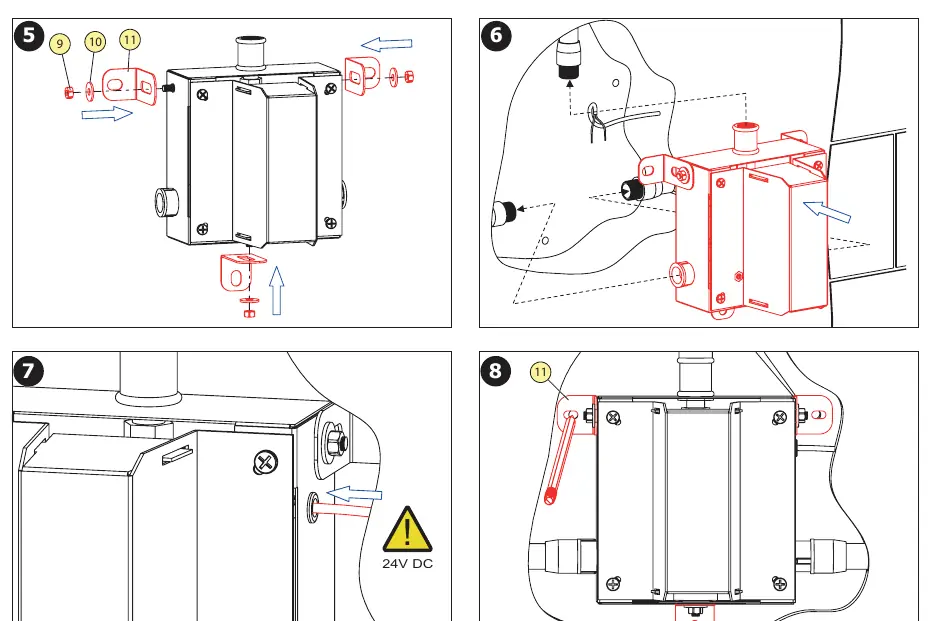

The installation involves mounting the unit into the wall, connecting the water supply (hot and cold), and wiring the 24V DC power. Follow the numbered steps 1-27 for precise mounting and assembly. Ensure the wall is prepared with the correct tiling depth (0-6 mm). Use the provided components (screws, anchors, brackets) as listed in the supplied equipment section.
Wiring and Power
Connect the 24V DC power supply. Ensure correct polarity (brown wire to positive, white wire to negative). The unit must remain powered at all times for correct operation.
Parameter Settings

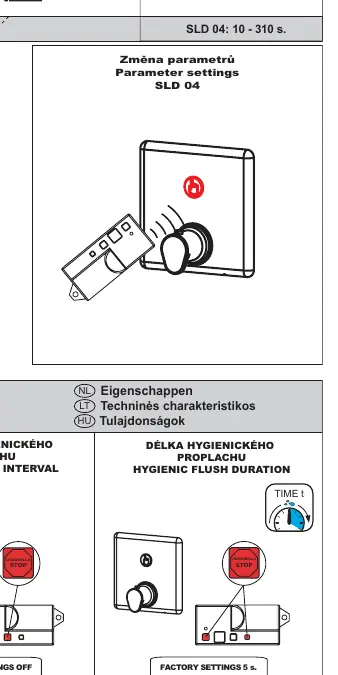

Use the SLD 04 remote control to adjust parameters such as automatic stop time and hygienic flush intervals. The remote control allows for configuration of the automatic stop duration (10-310 s) and hygienic flush settings.
Maintenance

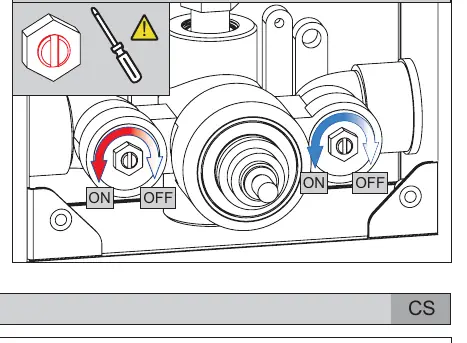

For maintenance, shut off the water supply using the integrated valves. Regular maintenance is recommended to ensure the longevity of the unit.
