User Guide for Scangrip Tower 5 Connect Work Light
Quick guide for the Scangrip Tower 5 Connect work light, covering battery compatibility, storage procedures, safety warnings, and technical specifications.
Table of contents
Quick guide from the manual
The Scangrip Tower 5 Connect is a professional work light designed for versatility. It operates using 18V Metabo CAS batteries, 3rd-party 18V batteries via the Scangrip Connector system, or a dedicated Scangrip power supply. The light features two brightness levels and is built for durability in demanding environments.
Safety and Warnings
- Always comply with local electrical safety regulations.
- Avoid looking directly into the light beam to prevent dazzling.
- Do not operate the lamp near open flames.
- The light source is non-replaceable; the entire unit must be replaced at the end of its service life.
Battery Compatibility and Power
The unit is designed for flexibility in power sources:
- Metabo CAS: Compatible with 18V 5.2 Ah batteries.
- Third-party batteries: Compatible with various 18V battery packs when using the specific Scangrip Connector matching your battery brand.
- Power Supply: A dedicated Scangrip power supply (03.6123C) can be used instead of a battery.
Note: Batteries, chargers, connectors, and power supplies are sold separately.
Storage Procedure

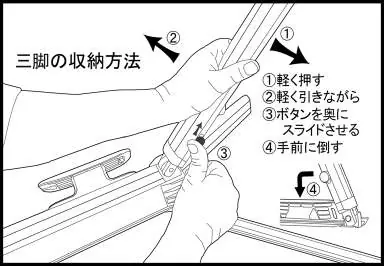

To fold the tripod for storage:
- Press the leg down lightly.
- Lift it up gently.
- Push the locking pin in the indicated direction.
- Fold the leg toward the main body.
Technical Specifications
- Light Output: 2500/5000 lm (step 1/2)
- Illuminance: 4000/8000 lux @ 0.5m
- Power Consumption: 45W
- Operating Time: 2-4.5 hours (using 18V 5.2 Ah battery)
- Protection: IP30, IK07
- Dimensions: 121 x 153 x 892 mm
- Weight: 5.2 kg
Disposal
Do not dispose of this electrical product with household waste. Use designated recycling facilities or consult your local authority for proper disposal methods.
Manufacturer information
SCANGRIP A/S
Practical help
Common problems
Light does not turn on
Check if the battery is charged, properly inserted, or if the correct Scangrip Connector is being used for your specific battery brand.
Light source failure
The light source is not replaceable. If it reaches the end of its life, the entire luminaire must be replaced.
Before use
- Ensure you have the correct Scangrip Connector for your 18V battery brand.
- Verify the battery is fully charged.
- Check the work area for proximity to open flames.
- Ensure the tripod legs are fully extended and stable before use.
Specs in practice
- 2500/5000 lm
- Two-step brightness adjustment (lumens) for different lighting needs.
Images and diagrams
- The storage diagram illustrates the four-step process to fold the tripod legs against the main body for compact storage.
Model compatibility
- Compatible with Metabo CAS 18V batteries.
- Compatible with 15+ other 18V battery brands via the Scangrip Connector system.
- Can be powered by a dedicated Scangrip power supply (03.6123C).
