User Guide for Odace Connected Wireless Switch 1-gang/2-gang

Quick guide from the manual

The Odace Connected Wireless Switch is a battery-powered device designed to control Zigbee-enabled devices such as lights and shutters. It is configured via the Wiser Home app and requires a Wiser Hub for operation. Key procedures include pairing, configuring actions or moments, and battery maintenance.

About the device

The Wireless Switch provides a user-friendly interface for controlling smart home devices. It is battery-powered, requires no wiring, and can be configured as either a 1-gang or 2-gang switch. It supports low battery notifications via the Wiser Home app.

Pairing the device with Wiser Hub

To pair the switch with your Wiser Hub:

1. Open the Wiser Home app and tap the settings icon.
2. Navigate to Devices and select Appliances.
3. Choose 1-gang or 2-gang Connected Wireless Switch as required.
4. Remove the rocker from the switch.
5. Short press the top-right push button 3 times.
6. Wait for the LED to blink amber and then turn green, indicating successful pairing.

Configuring the device

Using the Wiser Home app, you can perform the following configurations:

• Setting location: Assign the switch to a specific room (e.g., bedroom, living room).
• Renaming: Change the device name for easier identification.
• Identifying: Use the app to identify the switch; the status LED will blink green.
• Removing: Delete the device from the system, which also resets it to factory defaults.

Using the device

The switch can be operated manually:

• Light: Short press top or bottom to turn on/off. Long press to increase/decrease brightness.
• Shutter: Long press top or bottom to move the blind up or down.
• Moment: Short press the push button to activate a pre-configured Moment.

You can assign specific Actions or Moments to the switch keys via the Wiser Home app.

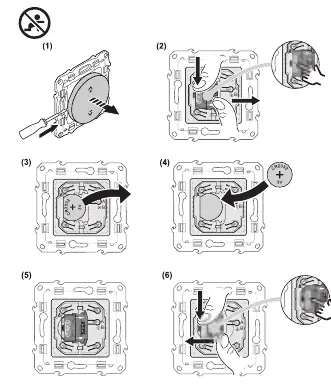

Replacing the battery

When the battery level is low, replace it as follows:

1. Remove the rocker using a screwdriver.
2. Press and hold the battery lid at the marked area and slide it to open.
3. Remove the old battery and press any push button for a few seconds.
4. Insert a new CR2032 battery with the plus (+) symbol facing outward.
5. Replace the battery lid and slide it to close.

Troubleshooting

If the LED blinks red, the battery is low or drained; replace the battery. If the device is offline, ensure the battery is charged or press any button to wake the device. If the device fails to connect to the Hub, it may be in Bluetooth mode; press the top-right button 3 times and hold for 20 seconds to reboot into Zigbee mode.

Technical Data

• Battery: CR2032
• Battery life: Up to 5 years
• IP rating: IP20
• Operating frequency: 2405-2480 MHz
• Communication protocol: Zigbee 3.0
• Operating temperature: -5 °C to 45 °C
