Scosche MagicMount Base Pro 3-in-1 Charging Stand User Manual

Quick guide from the manual

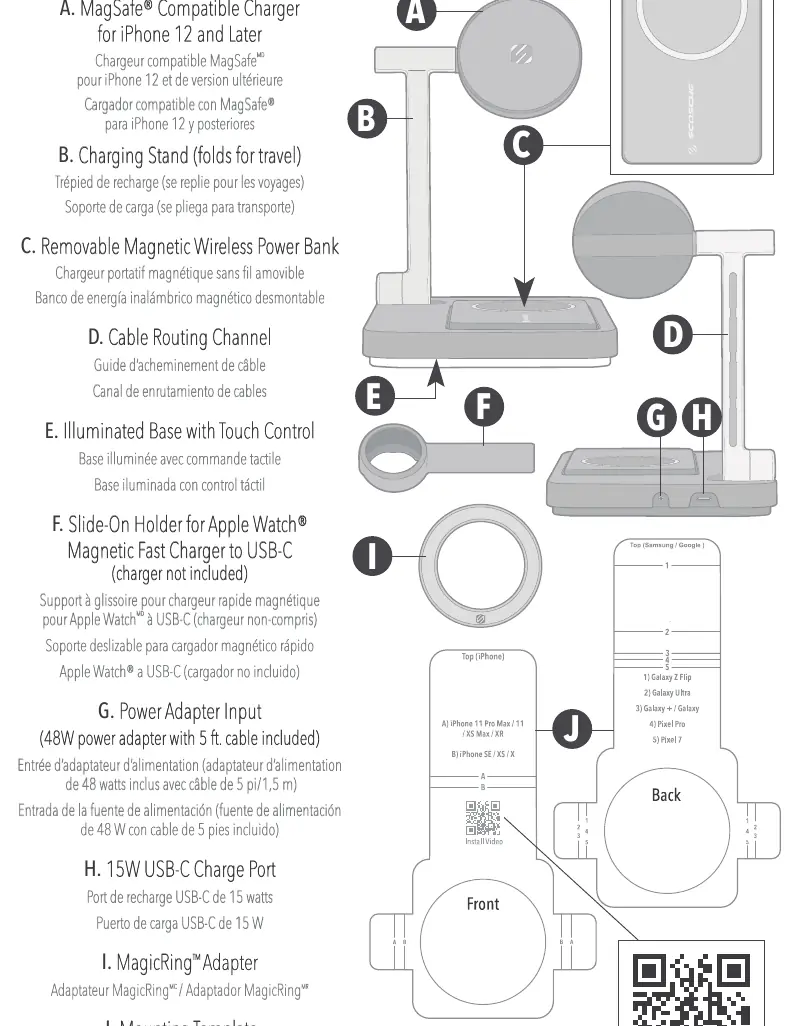

The Scosche MagicMount Base Pro is a 3-in-1 charging stand designed for MagSafe compatible devices, featuring a removable wireless power bank and an illuminated base with touch controls. Before first use, it is recommended to fully charge the removable power bank to 100%.

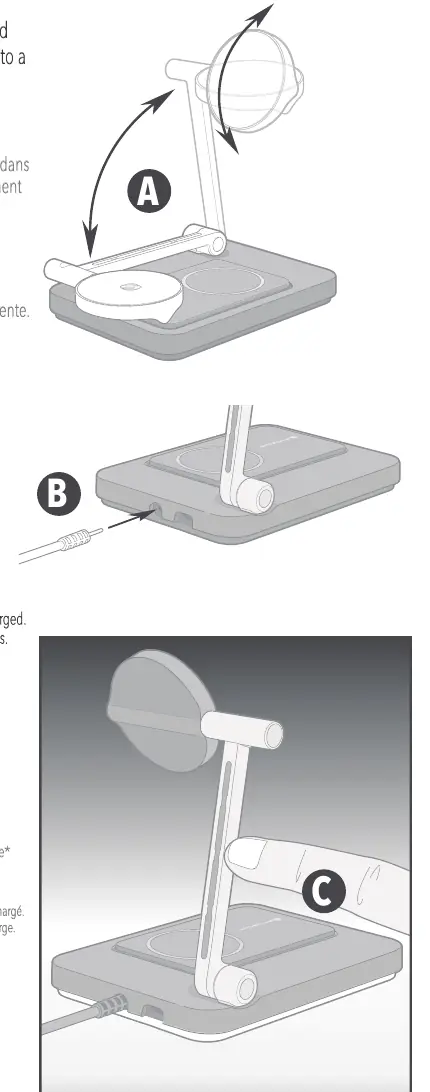

Device Setup

To begin using the stand:

1. Unfold the charging stand (A).
2. Connect the included power adapter to the unit (B).
3. Plug the adapter into a wall socket. The unit will power on automatically.

Slide-On Holder for Apple Watch

To install the Apple Watch holder:

1. Route the charger cable through the opening in the holder (A) and slide the holder onto the charging stand (B).
2. Seat the magnetic charger in the holder (C) and route the charger cable into the guide channels in the holder and the back of the stand (D).
3. Plug the charger cable into the USB-C port (E).

Illuminated Base with Touch Control

The base features touch-sensitive controls on the stand's neck (C):

• Turn light on/off: Tap once.
• Increase/decrease brightness: Tap and hold for 5 seconds to cycle between low and high brightness.
• Disable light feature: Tap and hold for 10 seconds.
• Enable light feature: Tap and hold for 5 seconds.

Note: The light feature does not indicate charging status. Use the battery indicator on your phone's screen to check charge status.

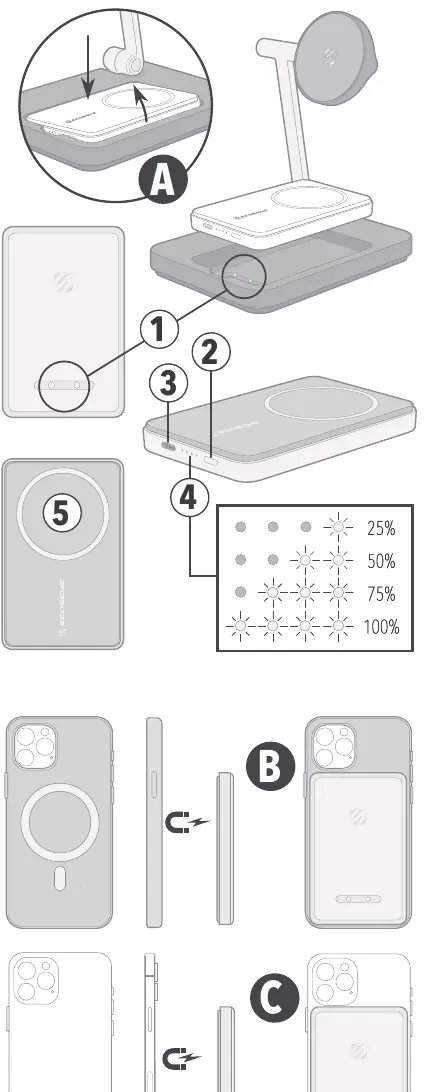

Removable Power Bank

The power bank can be removed from the base for portable charging. To charge the power bank, place it on the base. The 4 LEDs on the power bank will illuminate in sequence to show the charge level (25%, 50%, 75%, 100%).

MagicRing Installation

For non-MagSafe devices, a case is required as adhesives cannot bond directly to the device. Use the included cleaning wipe to clean the case surface, then use the provided mounting template to accurately position the MagicRing on the device.

Foreign Object Detection (FOD)

If a metal object is detected on either wireless charger (stand or base), the light surrounding the base will pulse slowly. Once the object is removed, normal function will resume. This feature works even if the light function has been disabled.

Specifications

Charging Stand:

• Input: 12V 4A, 48W
• Wireless: 5W / 7.5W / 10W
• Pogo Pin: 9V 1.5A, 13.5W
• USB-C: 5V 3A, 15W
• LED Light: 3.5W

Removable Powerbank:

• Battery Capacity: 5,000 mAh
• USB-C Input: 5V 2A
• USB-C Output: 5V 2A
• Wireless Output: 10W Max
