Sealey 15PC 90° Angle Air Die Grinder Kit

Product Overview

The Sealey 15PC 90° Angle Air Die Grinder (Model GSA675) is a professional-grade pneumatic tool designed for grinding, deburring, and smoothing metal surfaces. This midi-configuration tool operates at 20,000rpm and is supplied as a complete kit, including a set of grinding points, chuck spanners, and a durable storage case.

Technical Specifications

• Model No: GSA675
• Air Consumption: 4cfm
• Collet Diameter: 6mm
• Free Speed: 20,000rpm
• Operating Pressure: 90psi
• Inlet Size: 1/4" BSP
• Vibration Level: 1.4m/s² (Uncertainty 0.7m/s²)

Safety Instructions

Always wear approved eye protection, ear defenders, and safety gloves when operating the tool. Ensure the air supply is clean and does not exceed 90psi. Never operate the grinder if you are tired or under the influence of alcohol or drugs. Keep hands and body clear of the workpiece during operation. The grinding process generates sparks; ensure the work area is free from flammable liquids, solids, or gases. Always disconnect the tool from the air supply before changing grinding bits or performing maintenance.

Operation and Setup

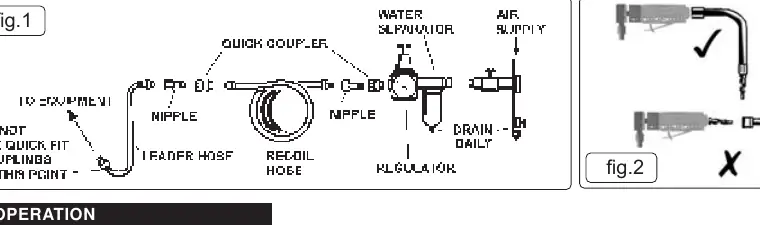

Connect the tool to a clean, regulated air supply. For optimal performance and to prevent vibration-related issues, use a leader hose between the grinder and the main air line. To operate, hold the tool firmly, push the trigger locking lever forward, and depress the trigger. Allow the bit to reach maximum speed before contacting the workpiece. Apply the grinding stone slowly and smoothly, avoiding harsh impacts that could damage the bit.

Maintenance

Regular maintenance is essential for tool longevity. If your air supply system lacks an automatic oiler, lubricate the tool daily by adding a few drops of air tool oil into the air inlet. Clean the grinder after every use. If performance drops, check for moisture in the air line, ensure hose connectors are the correct size, and clean the air strainer located at the inlet. For major repairs, contact your local service agent.

Environmental Protection

Dispose of unwanted materials and the tool itself in accordance with local environmental regulations. Sort all accessories and packaging for recycling. Drain any fluids into approved containers before disposal.
