Sealey STS103 Digital Torque Screwdriver User Guide
Quick guide for the Sealey STS103 0.05-5Nm digital torque screwdriver, covering battery installation, operation modes, torque programming, and maintenance.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Sealey STS103 is a precision digital torque screwdriver designed for automotive and workshop use. It features a 1/4" hex drive, a range of 0.05-5Nm, and provides visual, audible, and vibration feedback when target torque is reached. This document covers essential setup, operation, and maintenance procedures.
Preparation
To install or replace batteries:
- Unscrew the two screws at location B on the handle.
- Carefully remove the end cap.
- Insert two AAA batteries, ensuring correct polarity as shown in the battery compartment.
- Replace the cap and re-tighten the screws.
Operation
Turning the tool on/off: Press the power button to turn on. The tool will automatically turn off after 2 minutes of inactivity. Press the power button again to turn it off manually.
Selecting modes: The tool defaults to Peak mode. To switch between Track and Peak modes, press the power button, then press the plus button within 3 seconds.
Programming torque:
- Press and hold the plus button for 3 seconds until 'Set' appears.
- Use the plus button to increase the target torque value.
- To decrease the value, press the power button to zero, then use the plus button to set the desired value.
- The tool will memorize the setting after 3 seconds.
Unit selection: With the unit on, press and hold the power button for 5 seconds to toggle between Nm and lb.ft.
Maintenance
- Do not apply force when the power is turned off.
- Clean only with a damp cloth; do not use solvents or proprietary cleaners.
- Remove batteries if the tool will be stored for an extended period.
- Store in a cool, dry place away from children and direct sunlight.
Official resources from the manual
Manufacturer information
Sealey Group
Practical help
Common problems
Display shows empty battery symbol
Replace both AAA batteries immediately to ensure accuracy and full functionality.
Target torque value not being accepted
Ensure the target torque is not set above 100% of the maximum capacity (5Nm). If it exceeds this, the display will zero and the setting will not be saved.
Inaccurate readings
Do not use the tool when the battery level is low. Ensure the tool is not exposed to strong magnetic fields, excessive heat, or humidity.
Before use
- Ensure batteries are installed with correct polarity.
- Check that the floor is not slippery and wear non-slip shoes.
- Verify the tool is in the correct mode (Peak or Track).
- Ensure the target torque value is programmed correctly.
- Check that the tool is clean and free from damage.
Specs in practice
- Range: 0.05-5Nm
- The operational torque capacity of the screwdriver.
- Drive: 1/4" Hex
- The size and shape of the bit holder interface.
Images and diagrams

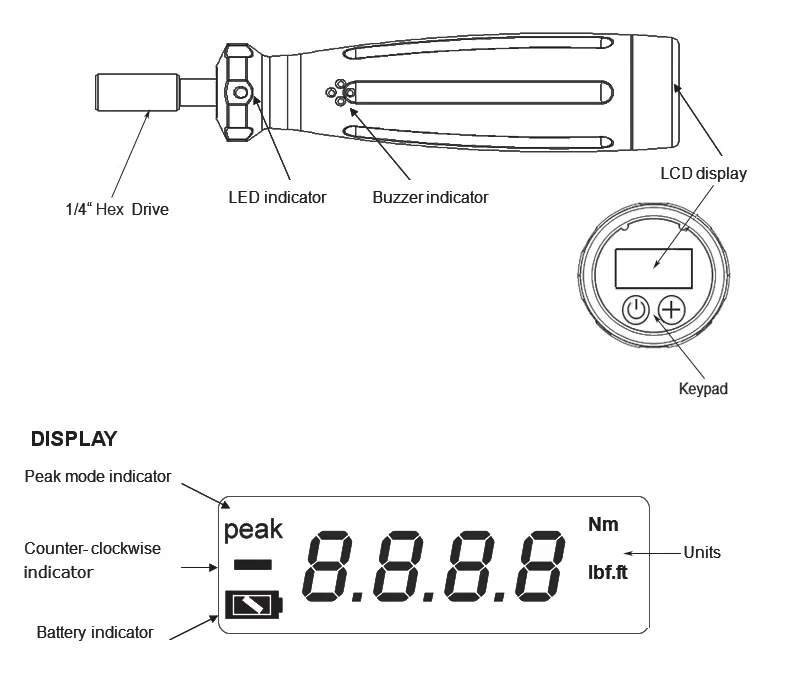

- Fig 1: Shows the location of the 1/4" Hex Drive, LED/Buzzer indicators, and the LCD display layout including Peak/Battery indicators.
- Fig 2: Illustrates the battery compartment access by loosening the two screws at location B.
Model compatibility
- The tool is suitable for automotive, workshop, and factory use.
- The tool is supplied with a test certificate and should be re-calibrated every 12 months or 5,000 cycles.
