User Manual for Sealey LED1800PB 20W LED Floodlight
Quick guide for the Sealey LED1800PB 20W rechargeable LED floodlight and power bank. Includes operation, charging instructions, safety warnings, and technical specifications.
Quick answers from the manual
Quick answer
- The Sealey LED1800PB is a 20W rechargeable LED floodlight with a built-in power bank. It features three brightness settings, magnetic mounting, and a fold-out hook. It cannot be used while charging. p. 1, 2
Key actions
- Charging the device p. 2
- Operating brightness modes p. 2
First start
- Charge the battery fully before the first use. p. 2
Problems and fixes
Light does not turn on
Check if the unit is currently charging, as it cannot be used while charging.
p. 2Maintenance and reset
- Charge the battery before storage to prevent long term discharge. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Battery | 3.7V 4Ah Lithium-Ion | Rechargeable battery type and capacity | p. 1 |
| Charging Time | 6hr | Time required for a full charge | p. 1 |
Where to find it in the PDF
- Safety and Specifications p. 1
- Operation and Maintenance p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Sealey LED1800PB is a 20W rechargeable LED floodlight that doubles as a power bank. Before using the device for the first time, it must be fully charged. The light cannot be operated while it is connected to a power source for charging. The unit features three brightness settings and can be mounted using integrated magnets or a fold-out hook.

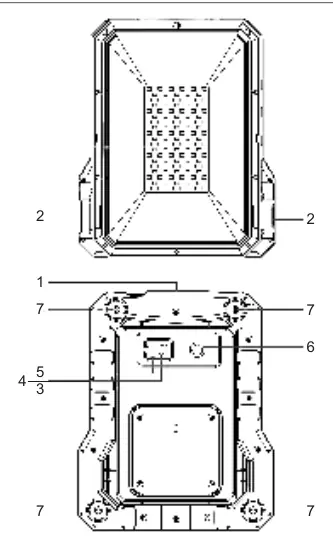

Product overview
The floodlight includes the following components:
- Fold-out hook for hanging
- Swivel joint for angle adjustment
- Charge level indicator LED
- USB Type-C charge socket (with rubber cover)
- USB connection port (power bank function)
- On/off button
- Mounting magnets
Safety instructions
General Safety:
- Ensure the lamp is fully charged before initial use.
- Do not turn the lamp on while it is charging.
- Do not shine the light directly into eyes.
- Do not allow children to use the lamp.
- Do not use the lamp if the casing, battery, or cable appears damaged.
- Recharge the battery at least once every six months if the lamp is not in use.
Battery Safety:
- Do not attempt to open, dismantle, or modify the battery pack.
- Do not expose the battery to temperatures above 40°C or below -10°C.
- Do not expose the battery to moisture, fire, or water.
- If electrolyte leaks, wash skin thoroughly with soap and water; if it gets in eyes, rinse with cool water and seek medical attention.
Operation
First Use: Charge the battery fully before the first use. When using the magnets or stand, ensure the device is placed securely to prevent falling.
Brightness Modes: Use the on/off button to cycle through the settings:
- Press once: High brightness mode.
- Press again: Medium brightness mode.
- Press a third time: Low brightness mode.
- Press a fourth time: Turn the light off.
Charge Display: During charging, the LED indicator flashes. When fully charged, the LED illuminates steadily. Disconnect the floodlight from the power supply once charging is complete.
Power Bank Function: Connect the device requiring power to the output port on the back of the light. Do not use the power bank function while the floodlight is charging.
Maintenance
If the product is not going to be used for an extended period, charge the battery before storage to prevent long-term discharge. Repeat this process regularly to ensure the power bank does not fully discharge.
Specifications
- Model No: LED1800PB
- Battery: 3.7V 4Ah Lithium-Ion
- Charging Time: 6 hours
- IP Rating: IP44
- LED Type: SMD LED
- Lumen Output: 1800lm
- Nett Weight: 0.735kg
- Operating Time: High (1hr), Medium (2hr), Low (4hr)
- Power: 20W
- USB Output: 5V 1A
Manufacturer information
Sealey Group
Practical help
Common problems
Light does not turn on
Ensure the unit is not currently connected to a charger, as the light cannot be used while charging.
Battery capacity is diminishing
Ensure the battery is fully charged before first use and regularly conditioned. Do not leave the battery in a discharged state for long periods.
Before use
- Charge the battery fully before the first use.
- Inspect the lamp casing and cable for any signs of damage.
- Ensure the mounting surface is ferrous if using the magnets.
- Check that the rubber cover for the USB socket is intact.
Specs in practice
- Operating Time
- Varies by mode: 1 hour (High), 2 hours (Medium), 4 hours (Low).
Images and diagrams
- The diagram identifies the fold-out hook, swivel joint, charge indicator, USB ports, on/off button, and mounting magnets.
Model compatibility
- Requires a USB Type-C cable for charging (supplied).
- Power bank function provides 5V 1A output.
