User Manual for Sealey PC195SD.V3 Wet & Dry Vacuum Cleaner
Quick guide for the Sealey PC195SD.V3 20L Wet & Dry Vacuum Cleaner. Includes assembly, operation, filter cleaning, and maintenance instructions.
Quick answers from the manual
Quick answer
- The Sealey PC195SD.V3 is a 20L wet and dry vacuum cleaner. To use it, assemble the unit with the appropriate filter (dry or wet), connect the hose to the suction port, and plug it into a 230V power supply. p. 1, 2, 3
Key actions
- Assembly p. 2
- Emptying the barrel p. 3, 4
- Cleaning the HEPA filter p. 4
First start
- Install the four castor wheels on the bottom of the container. p. 2
- Attach the top cover and secure with barrel locks. p. 2
Problems and fixes
Reduced suction
Check for blockages in the hose or air intake, or clean the HEPA filter.
p. 4, 5Maintenance and reset
- Clean the HEPA filter by pressing the cleaning button 5 times or washing with water. p. 4
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Motor Power | 1200W | Power consumption | p. 2 |
| Drum Size | 20L | Capacity | p. 2 |
| Supply | 230V | p. 2 |
Where to find it in the PDF
- Safety and Introduction p. 1
- Specification and Assembly p. 2
- Dry Vacuuming and Emptying p. 3
- Filter Cleaning and Wet Vacuuming p. 4
- Blowing, Accessories, and Maintenance p. 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This vacuum cleaner is designed for garages, workshops, and domestic use. Before operating, ensure the correct filter is installed for the task (dry reusable filter for dry vacuuming, wet foam filter for wet vacuuming). Always disconnect the power supply before performing assembly, maintenance, or changing filters.
Assembly
Follow these steps to prepare the vacuum for use:
- Undo the barrel locks and remove the top cover assembly.
- Remove all accessories from the dust barrel.
- Turn the container upside down and insert the four castor wheels.
- Replace the top cover assembly and lock it in place with the barrel locks.
- Align the hose assembly port with the suction port, insert, and twist to the right to tighten.
- Attach extension tubes and the desired nozzle as needed.
Dry Vacuuming
Ensure the dry reusable filter is installed. Connect the hose to the suction port, plug in the machine, and switch it on. Do not vacuum dust and liquid at the same time.
Wet Vacuuming
Ensure the wet foam filter is installed on the top cover basket. When the barrel reaches maximum capacity, the safety valve will automatically stop suction. Disconnect from the mains and drain the liquid. Wring the sponge filter dry after each use.
Blowing Function
To use the blower function, unscrew the hose from the suction port and insert it into the blower socket on the back of the top cover. Ensure the container is empty before using this function.
Maintenance and Filter Cleaning
If suction performance decreases, the HEPA filter may be clogged. You can clean it by blocking the hose inlet and pressing the cleaning button 5 times. If heavily soiled, remove the filter, shake off dust, and wash with clean warm water (use mild detergent if necessary). Allow to dry completely before reinstalling. Do not use solvents or abrasives to clean the machine.
Manufacturer information
Sealey Group
Practical help
Common problems
Reduced suction
Check if the air intake is blocked, clear any blockages, or clean the HEPA filter.
Machine stops during wet vacuuming
The safety valve has activated due to the barrel reaching maximum capacity. Disconnect from mains and empty the barrel.
Filter is very dirty
Remove the filter, shake off dust, and wash with warm water and mild detergent. Allow to dry completely before re-installing.
Before use
- Check power supply leads, plugs, and connections for wear or damage.
- Ensure the correct filter is installed (Dry reusable filter for dry vacuuming, Wet foam filter for wet vacuuming).
- Ensure the dust barrel is empty.
- Verify that the top cover is securely locked with barrel locks.
- Ensure the voltage rating matches your power supply.
Specs in practice
- Drum Size: 20L
- The capacity of the stainless steel dust barrel.
- Motor Power: 1200W
- The power consumption of the vacuum motor.
- Maximum Vacuum Pressure: 170mbar
- The suction strength of the unit.
Images and diagrams

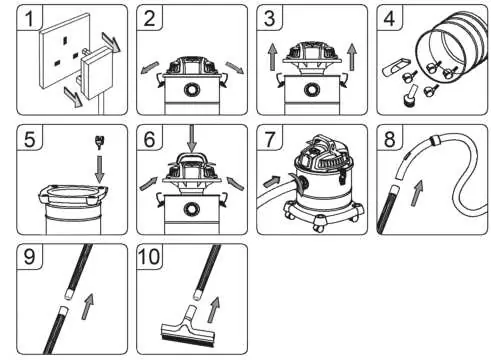

- Assembly: Shows the sequence of installing castors, top cover, and hose.

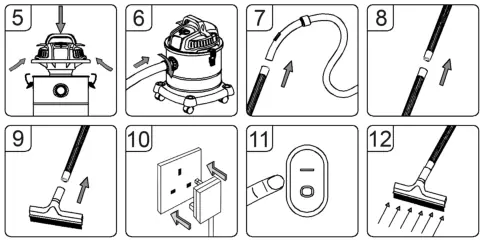

- Dry Vacuuming: Illustrates the setup for standard vacuuming.
- Emptying: Shows the process of releasing locks and removing the top cover to empty the barrel.
- HEPA Cleaning: Demonstrates the filter cleaning lever and washing process.
Model compatibility
- Use only genuine Sealey parts and accessories.
- Do not use the machine for tasks it is not designed to perform.
- Do not vacuum hot or glowing ash, cigarette ends, flammable, explosive, or corrosive substances.
