Sealey PW2000HW.V2 Pressure Washer Parts Manual
Access the official parts manual for the Sealey PW2000HW.V2 hot/cold water pressure washer. This guide includes detailed exploded diagrams and component lists to assist with maintenance and identifying replacement parts.
Table of contents
Manual images
Click an image to enlargeImportant Information
This document serves as the official parts information guide for the Sealey PW2000HW.V2 Hot/Cold Water Pressure Washer. It provides exploded diagrams and corresponding part numbers for all major assemblies. Please note that spare parts must be fitted by a competent person. The manufacturer reserves the right to alter specifications and components, so always verify part numbers against your specific unit.

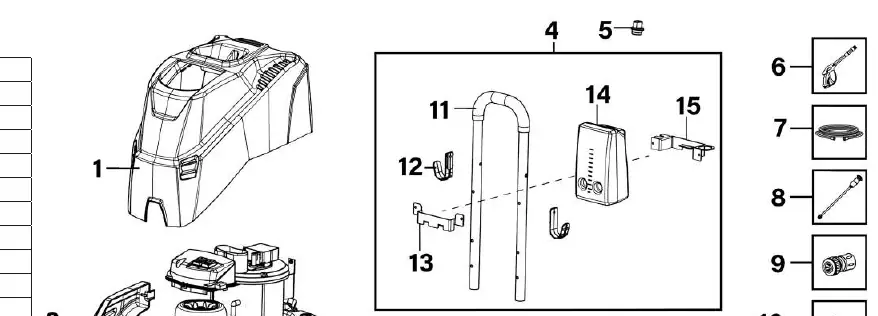

External Components
The external assembly includes the main housing, detergent tank, gun, and hose connections. Key components identified include the upper cover, side plates, handle assembly, and the high-pressure hose (1/4" R1 250bar 8000mm). The quick coupling with valve and inspection filter are also detailed here for maintenance of the water inlet system.
Motor and Pump Assembly
This section details the internal motor and pump mechanism. It includes the motor fan, housing, rotor, and the pump head assembly. Specific kits are listed for the TSS (Total Stop System) assembly, piston body, valve head, and various seal kits (O-ring and oil seals) required for pump maintenance.

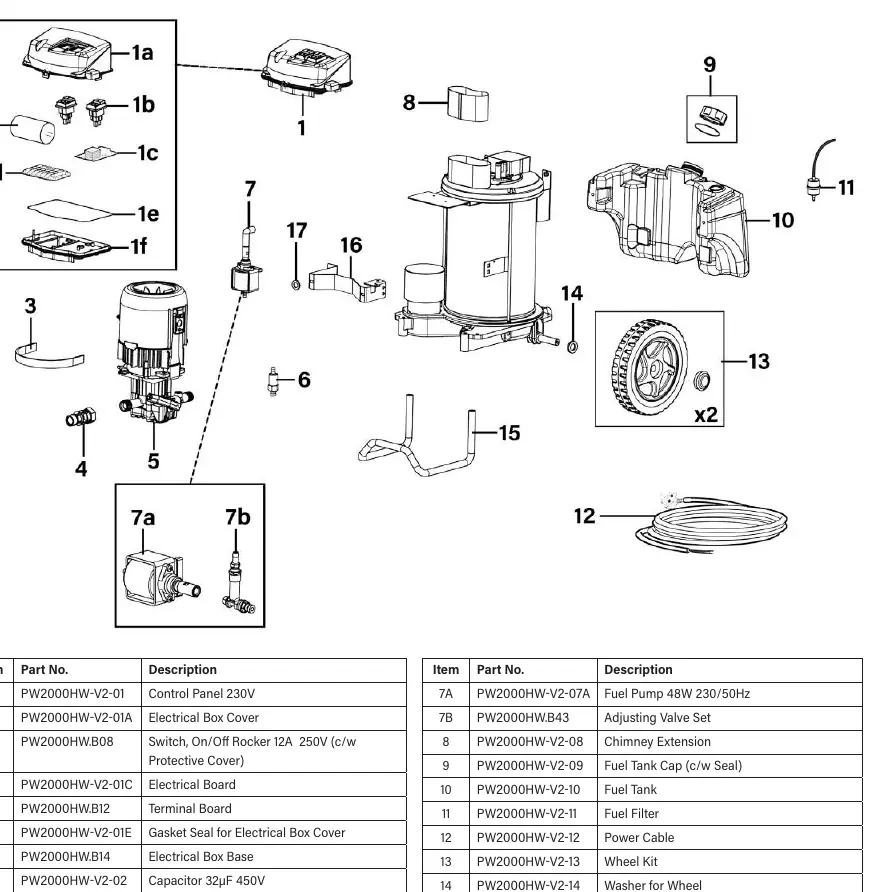

Electrical and Fuel System
The electrical and fuel components are outlined, including the control panel, electrical box, capacitor, and the fuel pump. This section is critical for troubleshooting power issues or fuel delivery problems. It also covers the wheel kit and support brackets for the chassis.
Boiler and Burner Assembly
The boiler section provides a breakdown of the heating system, including the transformer, burner motor assembly, boiler body, and the heating coil. It also lists specific nozzles and electrodes required for the burner operation.
Manufacturer information
Sealey Group
Practical help
Common problems
Incorrect product use
The manufacturer accepts no liability for incorrect use. Ensure all operations follow standard safety procedures for high-pressure washers.
Part identification
There may be alternative versions of this product. Always verify the part number against the specific unit before ordering replacements.
Repair capability
Spare parts must be fitted by a competent person to ensure safety and warranty compliance.
Before use
- Inspect the high-pressure hose for signs of wear or damage.
- Check that the fuel tank cap is secure.
- Verify that the electrical supply matches the 230V/2300W specification.
- Ensure the quick coupling with inspection filter is clean and free of debris.
- Confirm the burner motor and fuel pump are clear of obstructions.
Images and diagrams
- Exploded diagrams show the assembly order of components.
- Item numbers in the diagrams correspond directly to the 'Item' column in the parts tables.
- Kits (e.g., O-ring & Seal Kit) are grouped together in the diagrams to show included components.
Model compatibility
- Parts are specific to the PW2000HW.V2 model.
- Guarantee is valid for 12 months from the date of purchase with proof of purchase.
