User Manual for Segway Ninebot eKickScooter C2 and C2 Pro
Quick guide for the Segway Ninebot eKickScooter C2 and C2 Pro. Includes operating instructions, speed modes, dashboard explanation, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick Guide
Before using your Segway Ninebot eKickScooter, you must install the Segway-Ninebot app, activate your scooter, and obtain the latest updates and safety instructions. The scooter features a simple interface controlled by a single power button.
Dashboard and Power Button
The dashboard displays your current speed, battery level, and status icons. Use the power button for the following operations:
- Power On: Press the button.
- Power Off: Press and hold the button for 3 seconds.
- Headlight: When the scooter is on, press the button once to turn the headlight on or off.
- Speed Modes: When the scooter is on, double-click the button to switch between speed modes.
Status Icons:
- Error Notification: Indicates the scooter has detected an error.
- Bluetooth: Indicates successful connection to a mobile device.
- Temperature Warning: Indicates the battery temperature is too high (55°C/131°F) or too low (0°C/32°F). Do not use the scooter until the temperature returns to the normal range.
- Locking Reminder: If this icon lights up, the scooter is locked. If abnormal movement is detected, the scooter will beep and the tail light will flash.
- Battery Power: Represented by 5 bars. If the first bar is red, the battery is very low; charge immediately.
Specifications
The C2 and C2 Pro models have different performance characteristics:
- Max Speed: Approx. 16 km/h (9.9 mph) for C2; Approx. 20 km/h (12.4 mph) for C2 Pro.
- Theoretical Range: Approx. 9 km (5.6 miles) for C2; Approx. 19 km (11.8 miles) for C2 Pro.
- Max Payload: 50 kg (110 lbs) for C2; 60 kg (132 lbs) for C2 Pro.
- Charging Time: Approx. 3.5 hours for C2; Approx. 4 hours for C2 Pro.
- IP Rating: IPX4.
Safety and Certifications
This product is certified to ANSI/CAN/UL-2272. The battery complies with UN/DOT 38.3 and ANSI/CAN/UL-2271. The device complies with FCC and Industry Canada regulations regarding radio frequency interference. Ensure a minimum distance of 5mm between the radiator and your body during operation.
Manufacturer information
Segway
Practical help
Common problems
Scooter beeping and tail light flashing
The scooter is in locked mode. Check the Segway-Ninebot app to unlock it.
Temperature warning icon is lit
Battery temperature is outside the safe operating range (below 0°C or above 55°C). Do not use or charge until the temperature normalizes.
Battery power is low
If the first battery bar is red, the power is very low. Charge the scooter immediately.
Before use
- Install the Segway-Ninebot app.
- Activate the scooter via the app.
- Check that the battery is charged (5 bars).
- Ensure the folding mechanism is secure.
- Verify the tire condition.
Specs in practice
- IP Rating (IPX4)
- The scooter is protected against splashing water from any direction.
- Theoretical Range
- Estimated distance on a full charge under specific test conditions (75kg load, 25°C, 70% max speed).
Images and diagrams

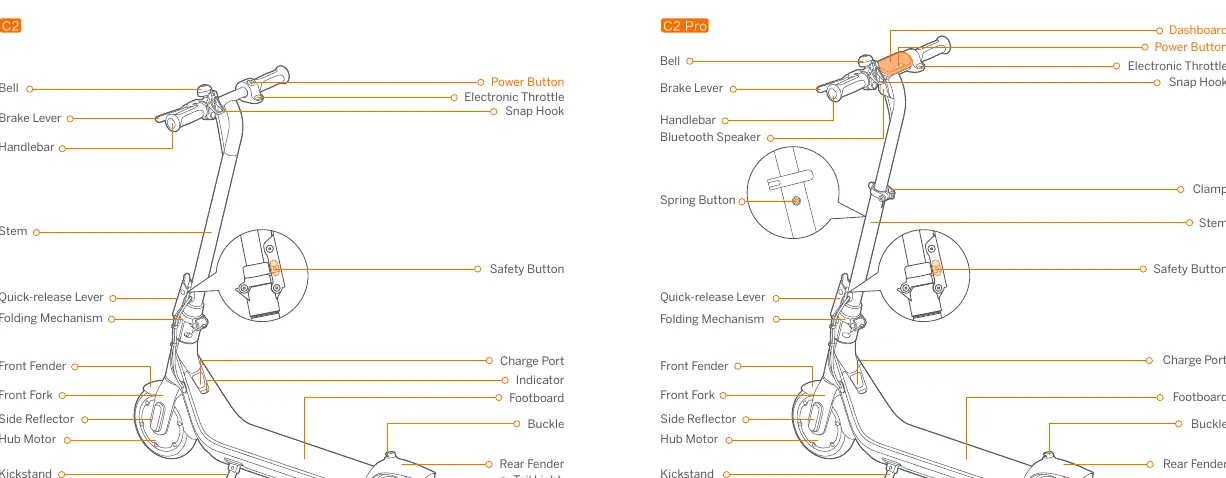

- The diagram identifies key components including the electronic throttle, brake lever, folding mechanism, and charge port.
- The dashboard layout shows the location of the speed mode indicator, speedometer, and battery power bars.
Model compatibility
- Requires the Segway-Ninebot app for activation and firmware updates.
- Compatible with smooth roads, normal asphalt, and tarmac.
